REAR WHEEL
GS550L 1985 (F) USA (E03)

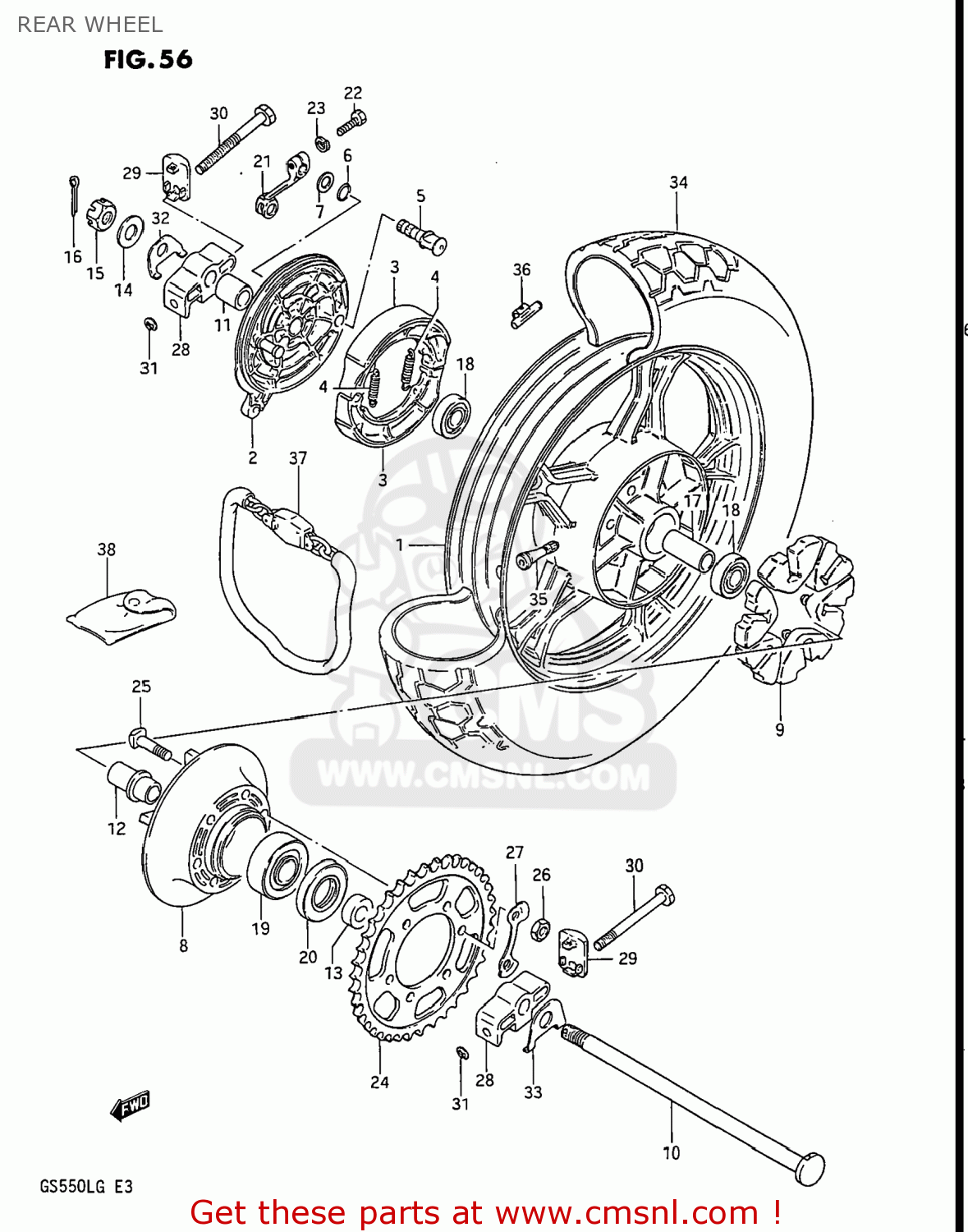

Rear wheel diagram GS550L 1985 (F) USA (E03)
REAR WHEEL GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6415043500291
ref: 1
WHEEL,REAR
€ 291.00
2
6421015510
ref: 2
PANEL,REAR HUB
€ 126.00
3
6441011301
ref: 3
64400-11860
SHOE,BRAKE
€ 29.50
4
5542030000
ref: 4
SPRING,BRAKE SHOE
€ 3.50
5
5444008003
ref: 5
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6461131002
ref: 8
64611-31003
DRUM,REAR SPROCKET MOUNT
€ 140.00
9
6465131000
ref: 9
64651-31001
ABSORBER,REAR HUB SHOCK
€ 9.50
10
6471115502
ref: 10
AXLE,REAR
€ 51.50
11
0918017070
ref: 11
SPACER (17.5X28X35)
€ 13.00
12
6473331300
ref: 12
RETAINER,RR SPROCKET DRUM
€ 16.50
13
0918017068
ref: 13
SPACER (17X33X12.5)
€ 0.00
14
0832211168
ref: 14
08322-01167
WASHER
€ 2.00
15
0914116001
ref: 15
NUT
€ 6.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17
0918017069
ref: 17
SPACER(17.5X25X70)
€ 15.00
18
0814363037
ref: 18
BEARING
€ 23.00
19
0811363050
ref: 19
09262-25073
BEARING
€ 21.50
20
0928533001
ref: 20
SEAL,OIL(33X62X7)
€ 20.00
21
6445115500
ref: 21
LEVER,REAR BRAKE CAM
€ 23.00
22
0110706258
ref: 22
01500-06257
BOLT
€ 2.00
23
0832121067
ref: 23
08321-01067
WASHER,LOCK
€ 2.50
24
6451143520
ref: 24
64511-31731
SPROCKET,REAR
€ 62.00
25
0910510001
ref: 25
BOLT(10X35.5)
€ 3.50
26
0914010026
ref: 26
09140-10026-XC0
NUT
€ 2.00
27
0916910007
ref: 27
WASHER
€ 7.50
28
6141115500
ref: 28
BODY,CHAIN ADJUSTER
€ 23.50
29
6142115500
ref: 29
61421-15501
PLATE,CHAIN ADJUSTER
€ 107.00
30
6143116700
ref: 30
BOLT,CHAIN ADJUSTER
€ 4.50
31
0833211046
ref: 31
08332-1104A
E RING
€ 2.00
32
6471315500
ref: 32
64713-43400
WASHER,CHAIN ADJUSTER
€ 3.50
33
6471215501
ref: 33
64712-43401
WASHER,CHAIN ADJUSTER
€ 3.00
34-1
6510043510
ref: 34-1
65100-15515
TIRE
€ 128.50
34-2
6510043550
ref: 34-2
65100-43560
TIRE
€ 139.00
34-3
6510043560
ref: 34-3
TIRE
€ 139.00
35
4313075150
ref: 35
43130-78030
VALVE,TIRE
€ 14.50
36-1
5541100A00291
ref: 36-1
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
36-2
5541200A00291
ref: 36-2
55412-17G00
BALANCER,WHEEL
€ 7.00
36-3
5541300A00291
ref: 36-3
55413-00A01
BALANCER,WHEEL
€ 4.00
37
9414015501KEY
ref: 37
94100-27821
CHAIN LOCK ASSY
€ 53.50
38
9414131301
ref: 38
BAG,CHAIN LOCK
€ 0.00
