FOOTREST

GS550L 1985 (F) USA (E03)

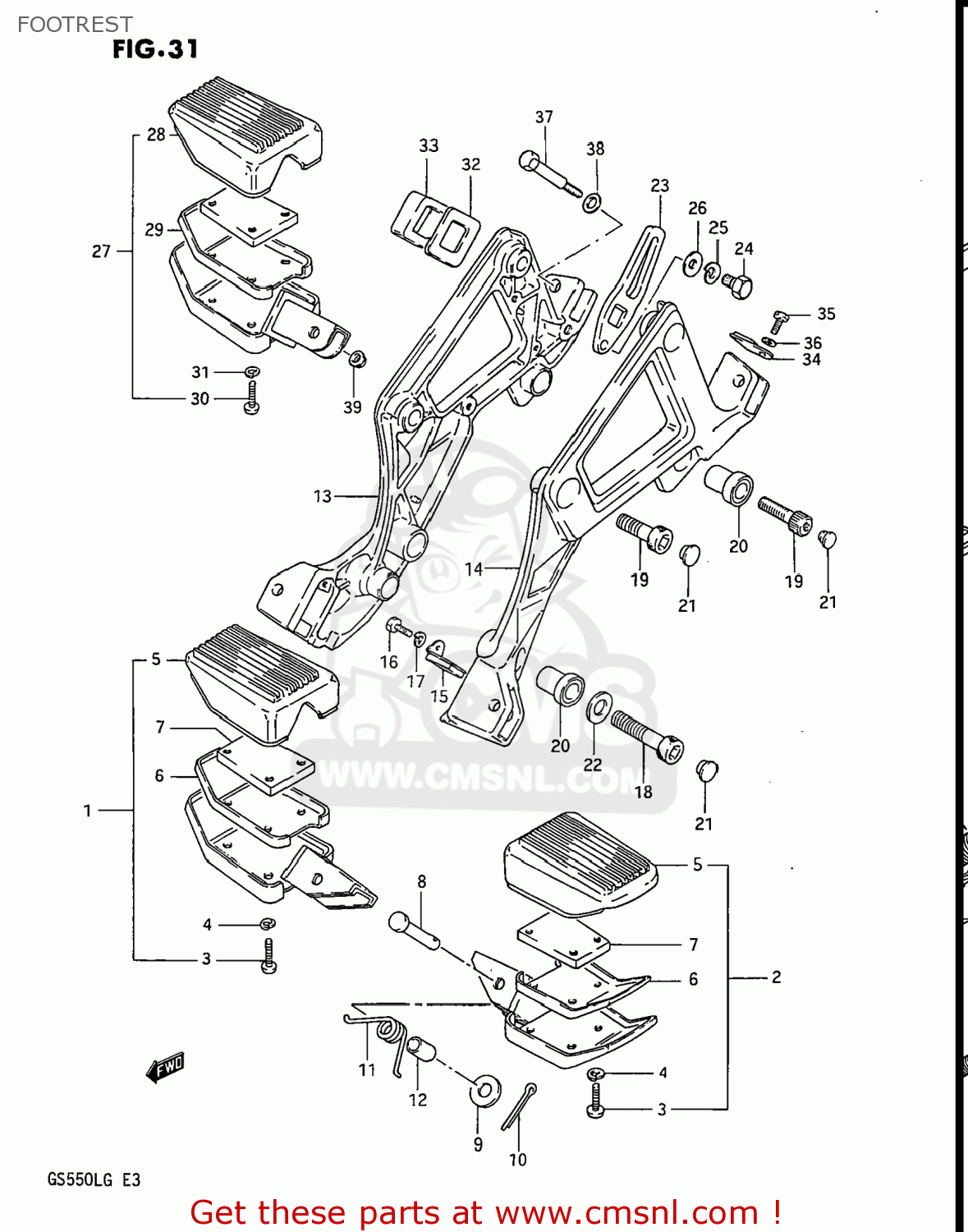

Footrest diagram GS550L 1985 (F) USA (E03)

FOOTREST GS550L 1985 (F) USA (E03)
FOOTREST GS550L 1985 (F) USA (E03)
FOOTREST GS550L 1985 (F) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4350143500
ref: 1
FOOTREST ASSEMBLY,FRONT,RIGHT
4350143500
€ 41.00
2
4350243500
ref: 2
FOOTREST ASSEMBLY,FRONT,LEFT
€ 45.50
3
0211205128
ref: 3
02112-05127
SCREW
€ 2.50
4
0832121057
ref: 4
08321-0105A
LOCK WASHER
0832121057
€ 2.00
5
4355143501
ref: 5
RUBBER,FRONT FOOTREST
€ 11.50
6
4358143500
ref: 6
PLATE, FOOTREST RUBBER
€ 0.00
7
4358543500
ref: 7
PLATE,FOOTREST RUBBER
€ 0.00
8
0920008040
ref: 8
PIN
0920008040
€ 3.00
9
0832211088
ref: 9
08322-01087
WASHER
0832211088
€ 2.00
10
0411120208
ref: 10
04111-2020A
PIN 20X20
0411120208
€ 1.50
11
0944814032
ref: 11
SPRING
€ 0.00
12
0930608013
ref: 12
BUSHING
0930608013
€ 3.50
13
4381043500
ref: 13
BRACKET,MUFFLER,RIGHT
€ 122.50
14
4382043500
ref: 14
BRACKET,MUFFLER,LEFT
€ 77.00
15
4357043500
ref: 15
CUSHION,FRONT FOOTREST
€ 4.00
16
0110705108
ref: 16
01500-0510B
BOLT 5X10
0110705108
€ 1.50
17
0832121057
ref: 17
08321-0105A
LOCK WASHER
0832121057
€ 2.00
18
0910610007
ref: 18
07130-1040B
BOLT
0910610007
€ 3.50
19
0910610017
ref: 19
BOLT 10X27
0910610017
€ 2.50
20
0931910048
ref: 20
BUSHING
€ 5.50
21
4357534500
ref: 21
CAP
4357534500
€ 1.50
22
0832221108
ref: 22
08322-01107
WASHER
0832221108
€ 2.50
23
4367109301
ref: 23
GUARD,REAR FOOT
4367109301
€ 26.50
24
0110708167
ref: 24
01500-0816B
BOLT,8X16
0110708167
€ 2.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
0832121088
€ 2.00
26
0832211088
ref: 26
08322-01087
WASHER
0832211088
€ 2.00
27-1
4360043502
ref: 27-1
FOOTREST ASSEMBLY,REAR,RIGHT
€ 48.50
27-2
4370043502
ref: 27-2
FOOTREST ASSEMBLY,REAR,LEFT
€ 31.50
28
4355143501
ref: 28
RUBBER,FRONT FOOTREST
€ 11.50
29
4358043500
ref: 29
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.00
30
0211205128
ref: 30
02112-05127
SCREW
€ 2.50
31
0832121057
ref: 31
08321-0105A
LOCK WASHER
0832121057
€ 2.00
32
4363143500
ref: 32
WASHER,FOOTREST RUBBER
€ 3.50
33
4363243500
ref: 33
CUSHION,REAR FOOTREST
€ 3.50
34
4364043501
ref: 34
CUSHION,REAR FOOTREST
€ 6.50
35
0110705108
ref: 35
01500-0510B
BOLT 5X10
0110705108
€ 1.50
36
0832121057
ref: 36
08321-0105A
LOCK WASHER
0832121057
€ 2.00
37
0911106035
ref: 37
BOLT
0911106035
€ 4.50
38
0832211088
ref: 38
08322-01087
WASHER
0832211088
€ 2.00
39
0831931067
ref: 39
NUT
0831931067
€ 2.50
