REAR BRAKE
GS550L 1985 (F) USA (E03)

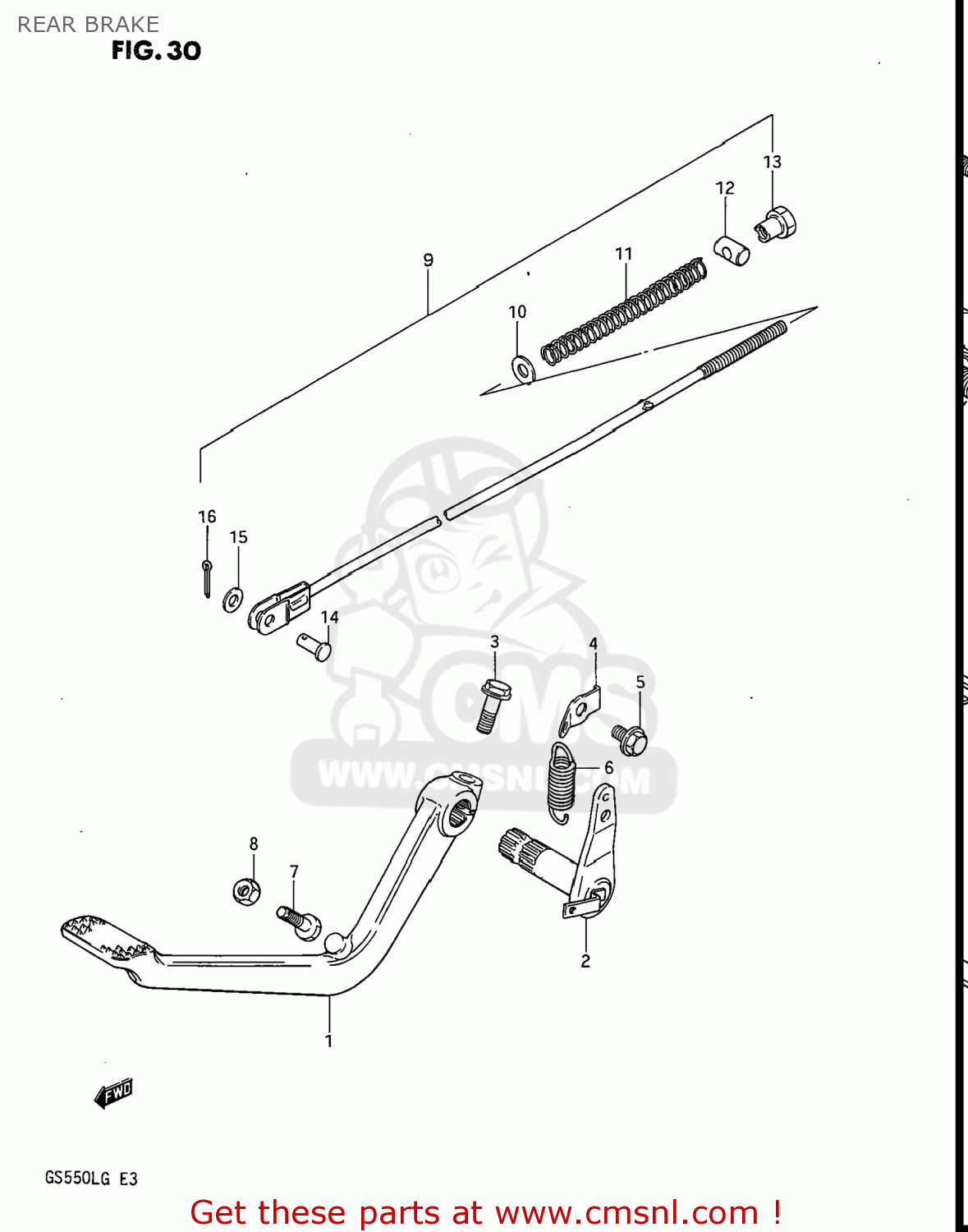

Rear brake diagram GS550L 1985 (F) USA (E03)
REAR BRAKE GS550L 1985 (F) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4311143501
ref: 1
PEDAL,BRAKE
€ 78.00
2
4312043500
ref: 2
ARM,BRAKE PEDAL
€ 26.50
3
0151708258
ref: 3
01550-08257
BOLT
€ 2.50
4
4321543500
ref: 4
PLATE.SPRING
€ 2.50
5
0151706108
ref: 5
01550-06107
BOLT
€ 2.50
6
0944314020
ref: 6
09443-14015
SPRING
€ 3.00
7
0110706257
ref: 7
01500-06257
BOLT
€ 2.00
8
0831011067
ref: 8
08310-00067
NUT 6MM
€ 2.50
9
4330043510
ref: 9
ROD ASSEMBLY,REAR BRAKE
€ 14.50
10
0832221067
ref: 10
08322-01067
WASHER
€ 2.00
11
0944009004
ref: 11
SPRING
€ 2.00
12
0920913005
ref: 12
09209-13018
PIN
€ 3.50
13
0915006009
ref: 13
09150-06010
NUT (6MM)
€ 3.50
14
0920006013
ref: 14
PIN(L:13.5)
€ 2.00
15
0832221067
ref: 15
08322-01067
WASHER
€ 2.00
16
0411120208
ref: 16
04111-2020A
PIN 20X20
€ 1.50
