AIR CLEANER

GS650GT 1983 (D) (E01 E02 E04 E06)

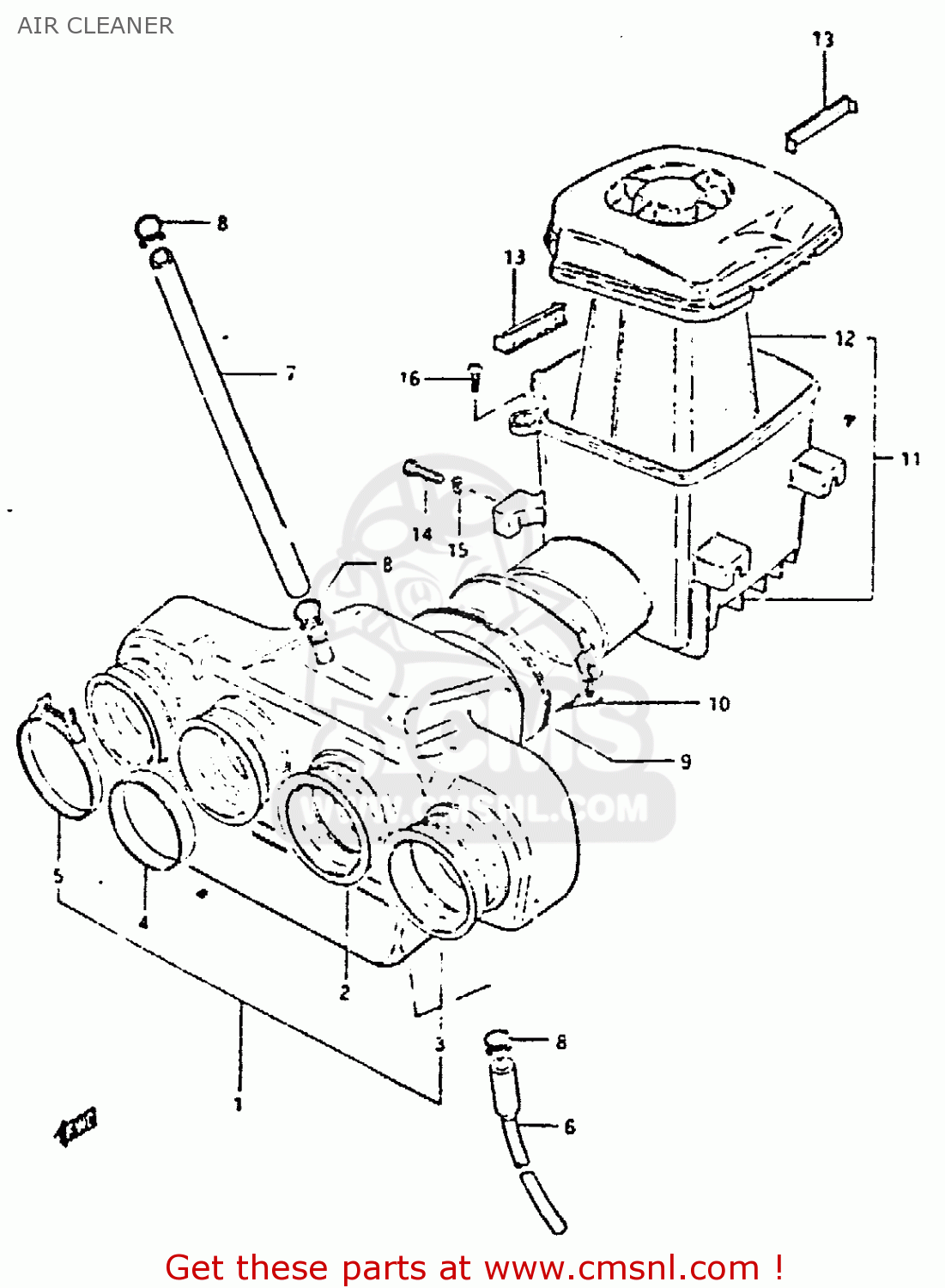

Air cleaner diagram GS650GT 1983 (D) (E01 E02 E04 E06)

prices are in EUR

ref

part #

description

quantity

1371034200
ref: 1

CASE,AIR CLEANER,FRONT

€ 97.50

1388134200
ref: 2

TUBE,OUTLET,INNER

€ 19.00

1388234200
ref: 3

TUBE,OUTLET OUTER

€ 17.00

1388547030
ref: 4

RING,CARBURETOR AIR INLET HOSE

€ 8.00

0940260208
ref: 5

CLAMP

€ 4.50

1387000010
ref: 6

DRAIN TUBE

€ 13.50

0934311005
ref: 7
L:300@r250

HOSE

€ 30.00

0940114301
ref: 8

CLIP

€ 2.00

1380134200
ref: 9

JOINT,HOSE AIR CLEANER

€ 8.00

0940284208
ref: 10

CLAMP

€ 0.00

1370034810
ref: 11

CLEANER SET,AIR,REAR

€ 86.50

1378034200
ref: 12

FILTER ASSY

€ 43.50

1382100011
ref: 13

SLIDER

€ 3.50

0110706168
ref: 14

BOLT, UPPER

€ 3.00

0832121068
ref: 15

LOCK WASHER

€ 2.50

0214206167
ref: 16

SCREW

€ 2.00
