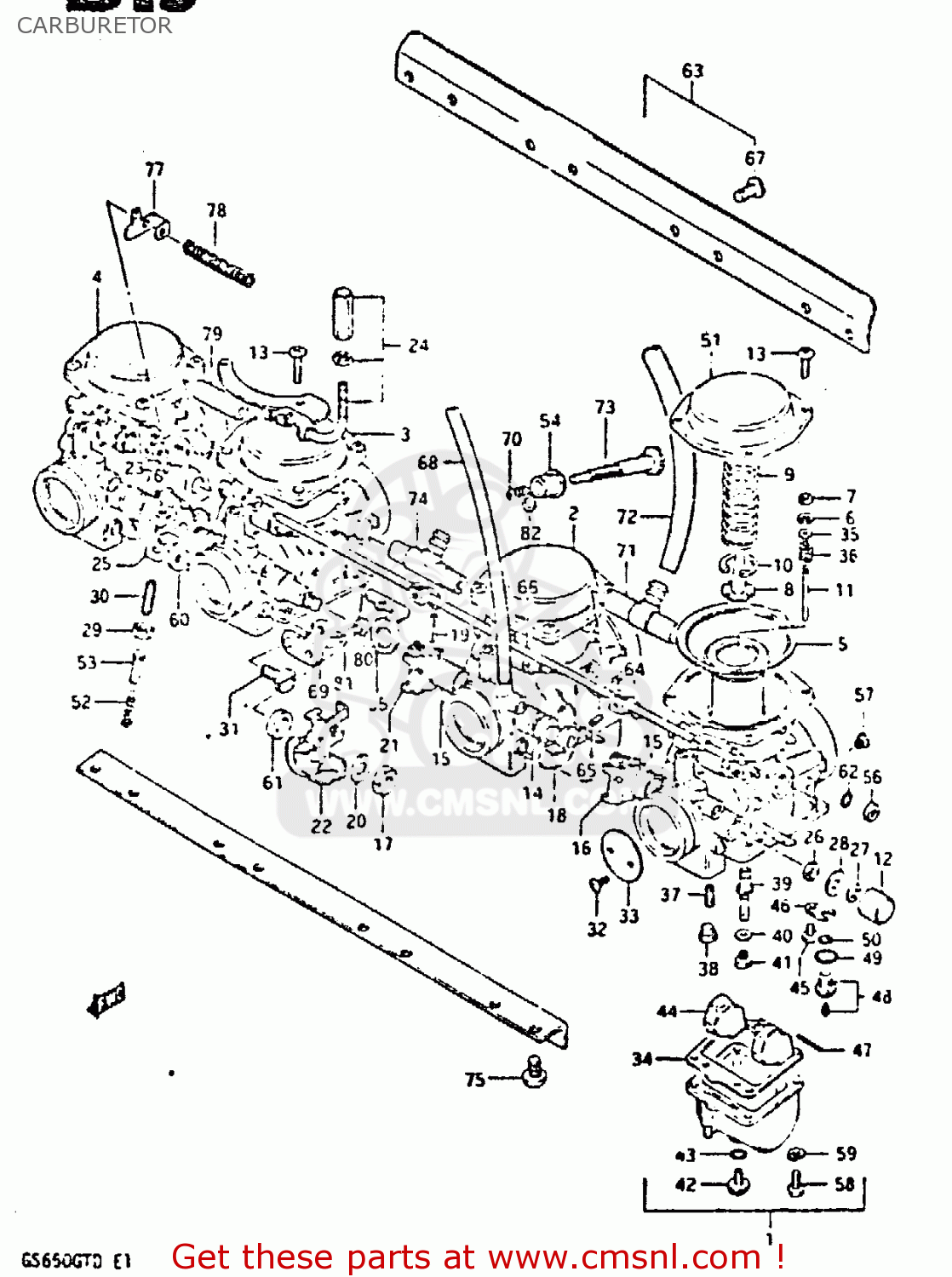

CARBURETOR

ref

part #

description

quantity

1

1320134310
ref: 1

CARBURETOR, LH

€ 0.00

2

1320234310
ref: 2

CARBURETOR, ML

€ 0.00

3

1320334310
ref: 3

CARBURETOR, MR

€ 0.00

4

1320434310
ref: 4

CARBURETOR, RH

€ 0.00

5

1350045110
ref: 5

DIAPHRAGM

€ 170.50

6

1339431210
ref: 6

CLIP,NEEDLE

€ 3.50

7

1338744030
ref: 7

RING

€ 5.00

8

1338944030
ref: 8

HOLDER,GUIDE

€ 10.50

9

1350344080
ref: 9

SPRING

€ 11.50

10

1358144030
ref: 10

E RING

€ 6.50

11

1338334210
ref: 11

NEEDLE, JET (5C41-3)

€ 12.50

12

1357847070
ref: 12
LH, RH

CAP

€ 5.50

13

0211205168
ref: 13

SCREW

€ 2.50

14

1355747070
ref: 14
ML, MR

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

15

1357347070
ref: 15
LH, ML

SPRING,THROTTLE SHAFT

€ 6.00

16

1355047070
ref: 16
LH

SHAFT,THROTTLE

€ 44.50

17

0831022088
ref: 17
MR

NUT 8MM

€ 2.00

18

1355047080
ref: 18
ML

SHAFT,THROTTLE

€ 42.50

19

1356347070
ref: 19
LH, ML, RH

PIN,THROTTLE SHAFT

€ 0.00

20

1360647070
ref: 20
MR

WASHER

€ 3.00

21

1355347070
ref: 21
ML

LEVER,THROTTLE SHAFT

€ 0.00

22

1355547070
ref: 22
MR

LEVER ASSEMBLY,THROTTLE

€ 0.00

23

1357347080
ref: 23
MR, RH

SPRING,THROTTLE SHAFT

€ 0.00

24

1362147180
ref: 24
MR

BRACKET,THROTTLE CABLE

€ 10.00

25

1355047090
ref: 25
RH

SHAFT,THROTTLE

€ 0.00

26

1355631210
ref: 26

SEAL

€ 4.00

27

1361744080
ref: 27
LH, RH

E RING

€ 3.50

28

1355747070
ref: 28
LH, RH

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

29

1360747070
ref: 29
LH, ML, RH

NUT

€ 4.00

30

1360547080
ref: 30
LH, ML, RH

SCREW

€ 7.00

31

1360573000
ref: 31
MR FROM 13605-45410

SCREW

€ 10.50

32

1360444080
ref: 32

SCREW

€ 3.50

33

1355147090
ref: 33

VALVE,THROTTLE (BUTTERFLY)

€ 17.00

34

1325144080
ref: 34

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

35

1338244030
ref: 35

WASHER

€ 3.50

36

1338844030
ref: 36

SPRING

€ 6.00

37

0949242007
ref: 37

JET,PILOT(42.5)

€ 8.50

38

1335744080
ref: 38

PLUG,NEEDLE JET

€ 4.50

39

0949400319
ref: 39

JET,NEEDLE

€ 18.50

40

1333244080
ref: 40

WASHER,NEEDLE NOZZLE

€ 2.50

41

0949122016
ref: 41

JET,MAIN(110)

€ 7.00

42

1324744080
ref: 42

PLUG,DRAIN

€ 9.50

43

1324644080
ref: 43

GASKET (NAS)

€ 3.50

44

1325044080
ref: 44

FLOAT

€ 31.00

45

0211204068
ref: 45

SCREW 4X6

€ 2.00

46

1337311400
ref: 46

PLATE,NEEDLE VALVE FITING

€ 7.00

47

1325492311
ref: 47

PIN,FLOAT

€ 2.00

48

1337011400
ref: 48

VALVE ASSEMBLY,NEEDLE

€ 40.50

49

1337444080
ref: 49

O-RING,NEEDLE VALVE

€ 6.00

50

1337665010
ref: 50

FILTER

€ 6.50

51

1350245110
ref: 51

COVER,DIAPHRAGM

€ 42.00

52

1326844010
ref: 52
LH, ML, RH

SPRING,THROTTLE SCREW

€ 3.00

53

1357547070
ref: 53
LH, ML, RH

PIN,THROTTLE LEVER

€ 2.50

54

1327631210
ref: 54
MR

BUSH

€ 4.00

55

1362744090
ref: 55
MR

BRACKET,THROTTLE ADJUST

€ 0.00

56

1368231210
ref: 56

CAP,STARTER VALVE

€ 5.00

57

0949328005
ref: 57

JET,AIR(140)

€ 10.00

58

0211205168
ref: 58

SCREW

€ 2.50

59

0832121058
ref: 59

LOCK WASHER

€ 2.00

60

1355047100
ref: 60
MR

SHAFT,THROTTLE

€ 0.00

61

1358947070
ref: 61
MR

WASHER

€ 3.00

62

1327847090
ref: 62

O RING

€ 2.00

63

1321047180
ref: 63

CARBURETOR ASSEMBLY

€ 0.00

64

1342244080
ref: 64

LEVER

€ 10.00

65

1360547070
ref: 65

SCREW

€ 5.50

66

1341047070
ref: 66

SHAFT,STARTER

€ 29.00

67

0214205128
ref: 67

SCREW

€ 1.50

68

1368345050
ref: 68
L:390@r180

HOSE 4.5X8X390

€ 14.00

69

1362747070
ref: 69

BRACKET,THROTTLE ADJUST

€ 4.00

70

1327193011
ref: 70

SPRING

€ 4.50

71

1368547070
ref: 71

NIPPLE

€ 25.00

72

1368345530
ref: 72
L:400@r330

HOSE

€ 18.00

73

1326747070
ref: 73

SCREW

€ 21.00

74

1368547080
ref: 74

NIPPLE,CARBURETOR

€ 25.50

75

0211206128
ref: 75

SCREW 6X12

€ 2.00

76

1341349220
ref: 76

LEVER,CHOKE CABLE

€ 4.00

77

1342149220
ref: 77

PLATE,CHOKE CABLE

€ 3.00

78

1343749220
ref: 78

SPRING,CHOKE CABLE

€ 0.00

79

1368547090
ref: 79

NIPPLE

€ 16.50

80

0211205108
ref: 80

SCREW

€ 2.00

81

0832121058
ref: 81

LOCK WASHER

€ 2.00

82

1343247090
ref: 82

WASHER

€ 2.50

all assemblies
