CYLINDER HEAD COVER

GS650GT 1983 (D) (E01 E02 E04 E06)

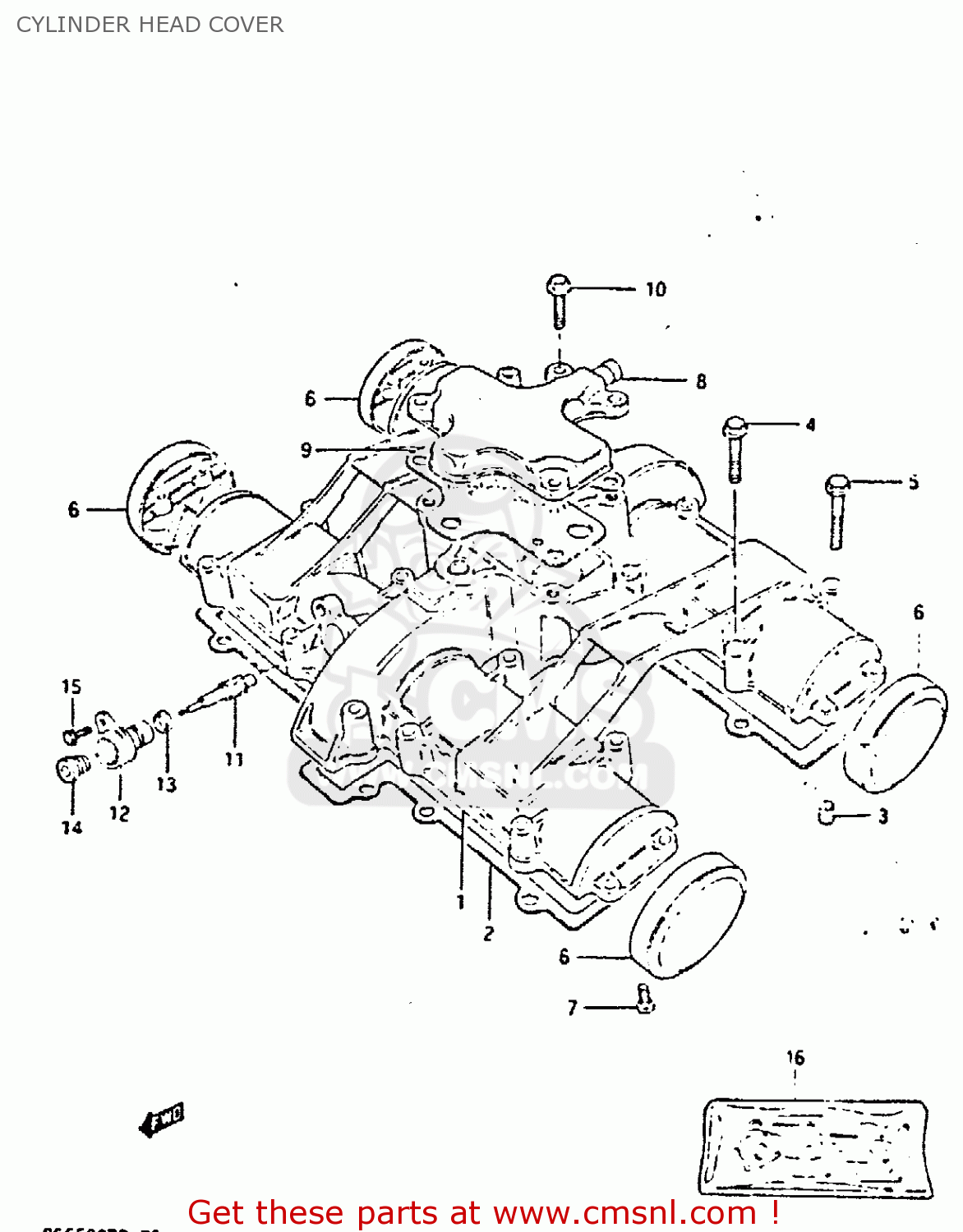

Cylinder head cover diagram GS650GT 1983 (D) (E01 E02 E04 E06)

prices are in EUR

ref

part #

description

quantity

1117134220
ref: 1

COVER,CYLINDER HEAD

€ 132.50

1117334211
ref: 2

GASKET,CYLINDER HEAD COVER (MCA)

€ 51.50

0920608001
ref: 3

PIN(6.2X8X11)

€ 2.00

0151706405
ref: 4

BOLT (6X40)

€ 2.00

0151706455
ref: 5

BOLT (6X45)

€ 2.50

1117434201
ref: 6

CAP,CYLINDER HEAD COVER

€ 24.00

0211205168
ref: 7

SCREW

€ 2.50

1117647042
ref: 8

COVER,BREATHER

€ 32.50

1117747001
ref: 9

GASKET (MCA)

€ 19.50

0151706205
ref: 10

BOLT

€ 2.50

2643147002
ref: 11

GEAR,TACHOMETER DRIVEN

€ 29.00

2644149000
ref: 12

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

0912805101
ref: 15

SCREW(5X12)

€ 1.50

1140034845
ref: 16
OPT

GASKET SET

€ 226.50

CYLINDER HEAD COVER

all assemblies
