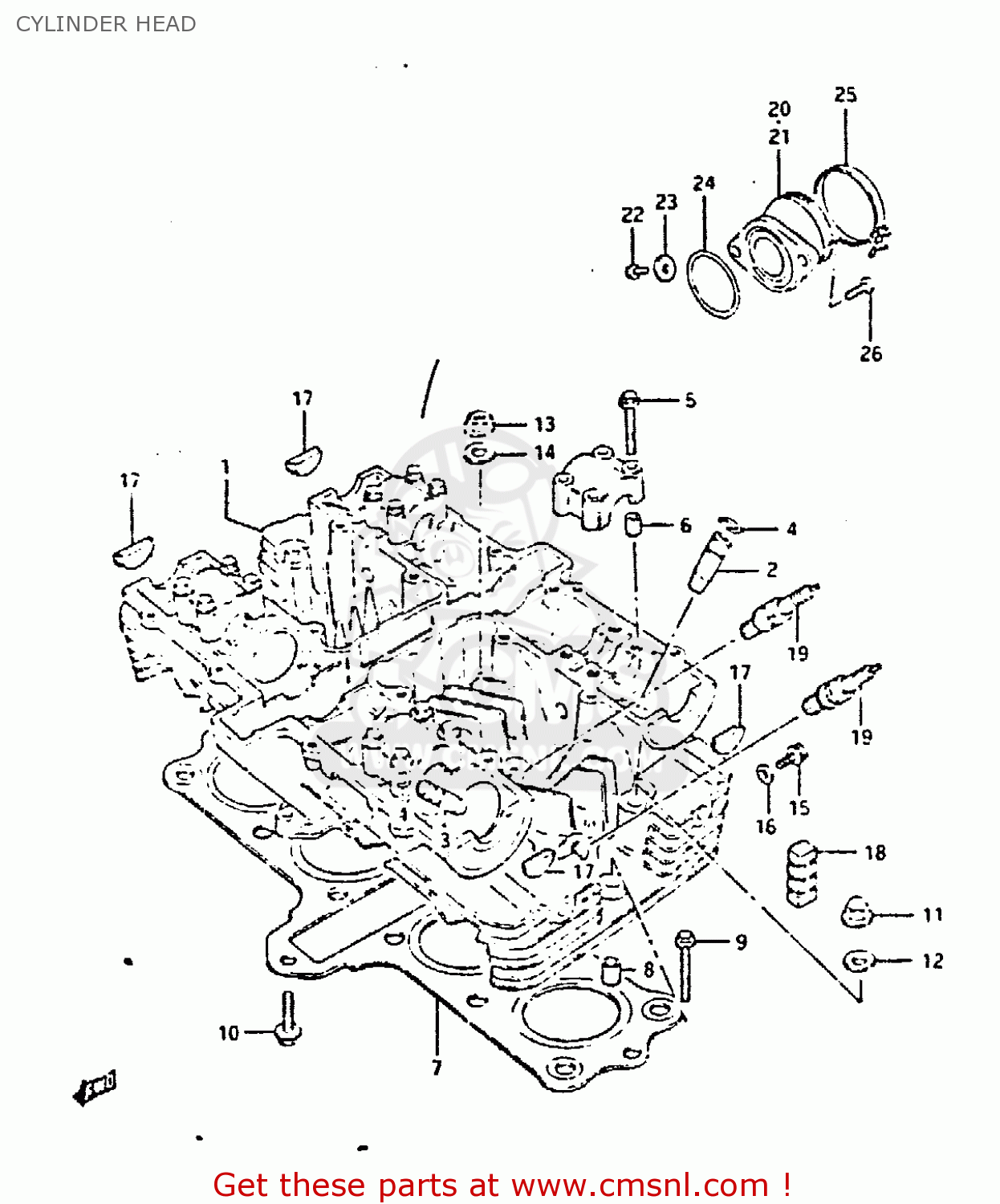

CYLINDER HEAD

ref

part #

description

quantity

1

1110034220
ref: 1

HEAD,CYLINDER

€ 1,010.00

2

1111534270
ref: 2

GUIDE,INTAKE VALVE

€ 14.50

3

1111647740
ref: 3

GUIDE,EXHAUST VALVE

€ 17.50

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114134203
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 128.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706455
ref: 9

BOLT (6X45)

€ 2.50

10

0151706305
ref: 10

BOLT 6X30

€ 2.50

11

0915908029
ref: 11

NUT

€ 6.00

12

0916808012
ref: 12

GASKET (NAS)

€ 4.50

13

0915908031
ref: 13

NUT

€ 2.00

14

0916008039
ref: 14

WASHER(8.5X19X2.3)

€ 2.00

15

0151706125
ref: 15

BOLT 6X12

€ 2.50

16

0916806015
ref: 16

WASHER

€ 2.00

17

0924123002
ref: 17

PLUG

€ 8.50

18

1125134300
ref: 18

PAD,RUBBER N4

€ 0.00

19-1

NOTUSED
ref: 19-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19-2

NOTUSED
ref: 19-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

19-3

0948200149
ref: 19-3
E2, E4, E6

SPARK PLUG DR8ES-L

€ 3.50

19-4

0948200223
ref: 19-4
E2, E4, E6

PLUG,SPARK(X24ESR-U)

€ 3.50

20

1311047010
ref: 20

PIPE,INTAKE,R

€ 40.00

21

1312047010
ref: 21

PIPE,INTAKE,L

€ 38.00

22

0711005106
ref: 22
FROM 09106-05006

SCREW (5X10)

€ 2.00

23

0832221058
ref: 23

WASHER

€ 2.50

24

0928038004
ref: 24
FROM 09280-38003

O RING(D:2.4,ID:37.7)

€ 4.50

25

0940250306
ref: 25

CLAMP

€ 6.00

26

0211206165
ref: 26

SCREW

€ 2.00

all assemblies
