MASTER CYLINDER
GS650GT 1983 (D) (E01 E02 E04 E06)

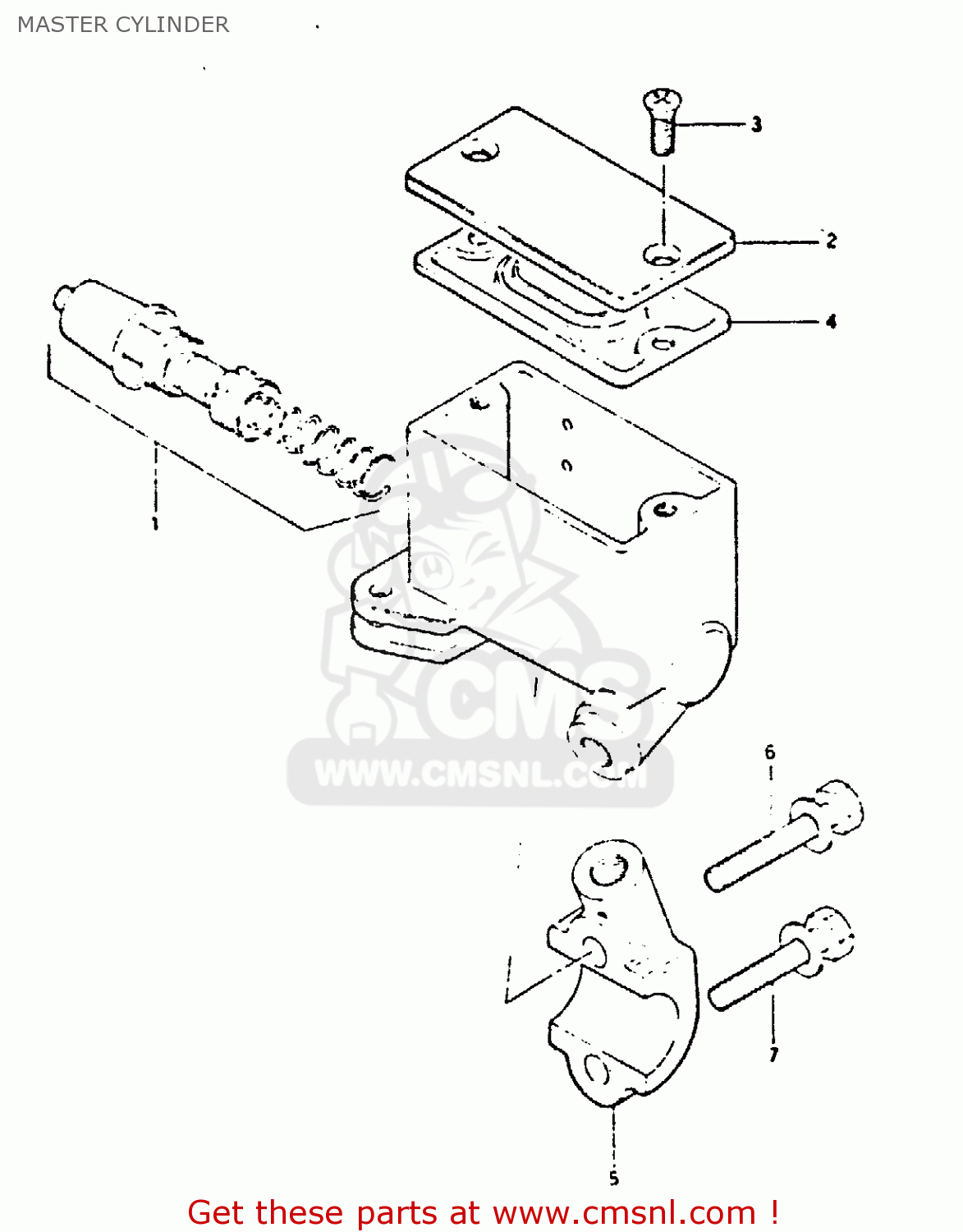

Master cylinder diagram GS650GT 1983 (D) (E01 E02 E04 E06)
MASTER CYLINDER GS650GT 1983 (D) (E01 E02 E04 E06)
×
prices are in EUR
ref
part #
description
quantity
0
5960034200
ref: 0
CYLINDER ASSY, MASTER
€ 0.00
0
NOTUSED
ref: 0
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1
5960049810
ref: 1
PISTON & CUP SET
€ 48.50
2-1
5966949300
ref: 2-1
CAP
€ 23.50
2-2
NOTUSED
ref: 2-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
5969149300
ref: 3
SCREW,RESERVOIR CAP
€ 6.50
4
5966749300
ref: 4
DIAPHRAGM,MASTER CYLINDER
€ 15.50
5
5967149000
ref: 5
HOLDER
€ 22.50
6
5969449001
ref: 6
BOLT,MASTER CYLINDER H
€ 3.00
7
5969349001
ref: 7
BOLT,MASTER CYLINDER H
€ 4.00
