REAR CARIPERS
GS650GT 1983 (D) (E01 E02 E04 E06)

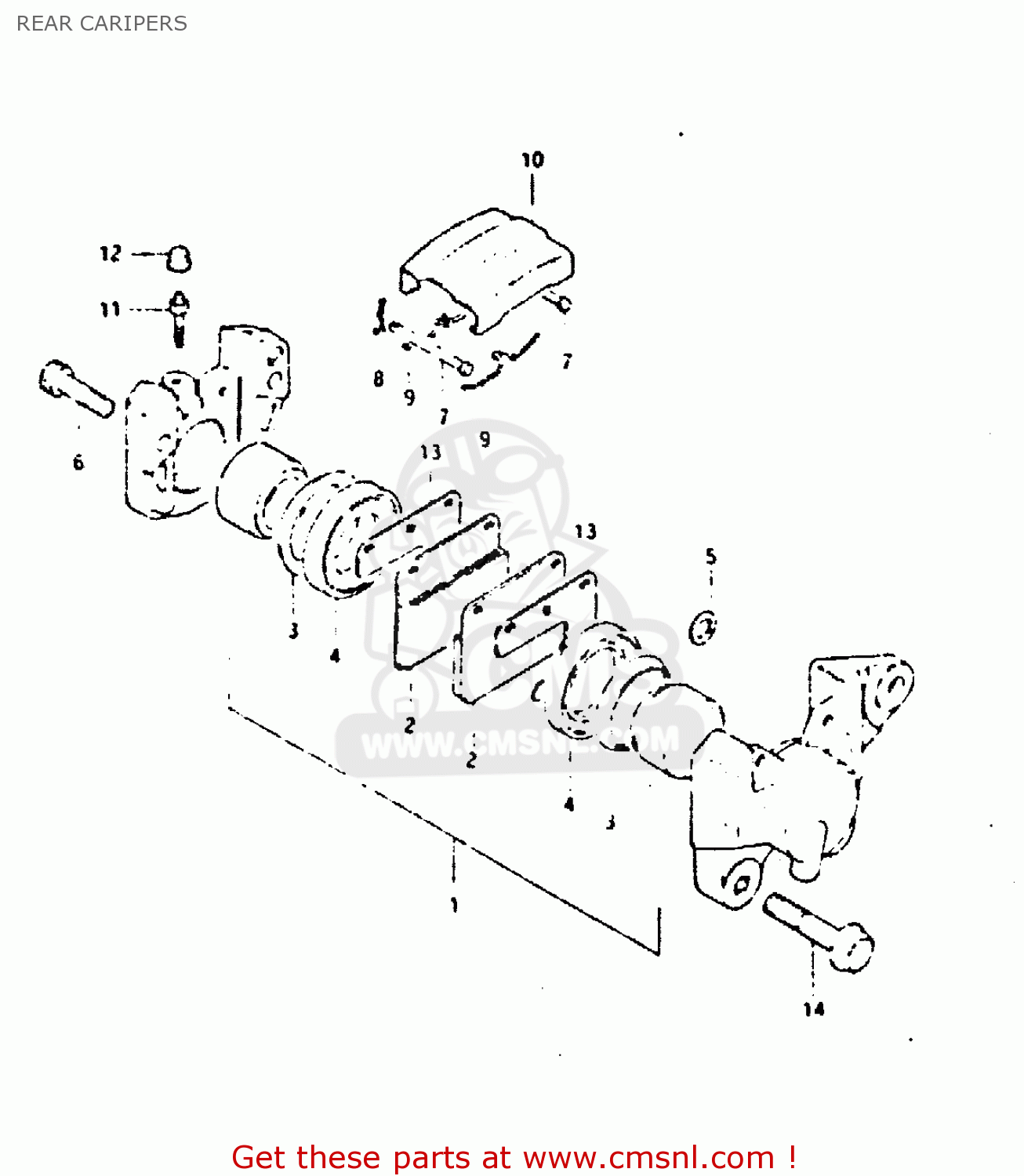

Rear caripers diagram GS650GT 1983 (D) (E01 E02 E04 E06)
REAR CARIPERS GS650GT 1983 (D) (E01 E02 E04 E06)
×
prices are in EUR
ref
part #
description
quantity
0
6910034201
ref: 0
CALIPER ASSEMBLY,REAR
€ 547.00
1
6910034820
ref: 1
PISTON SET
€ 98.00
2
6913045021
ref: 2
PAD,BRAKE (MCA)
€ 66.50
3
5910718410
ref: 3
SEAL,PISTON
€ 17.00
4
6910845000
ref: 4
BOOT,PISTON
€ 10.00
5
6910734200
ref: 5
SEAL,JOINT
€ 12.00
6
6914534200
ref: 6
BOLT,CALIPER HOUSING
€ 9.50
7
6914145000
ref: 7
PIN,PAD
€ 6.50
8
6914245000
ref: 8
CLIP,PAD PIN
€ 4.50
9
6914345001
ref: 9
SPRING
€ 8.00
10
6915145000
ref: 10
COVER,DUST
€ 26.50
11
5912118410
ref: 11
BLEEDER
€ 8.00
12
5912218410
ref: 12
CAP,BREATHER
€ 6.00
13
6915245001
ref: 13
SHIM,RR CALIPER
€ 9.50
14
0151710308
ref: 14
BOLT
€ 3.50
