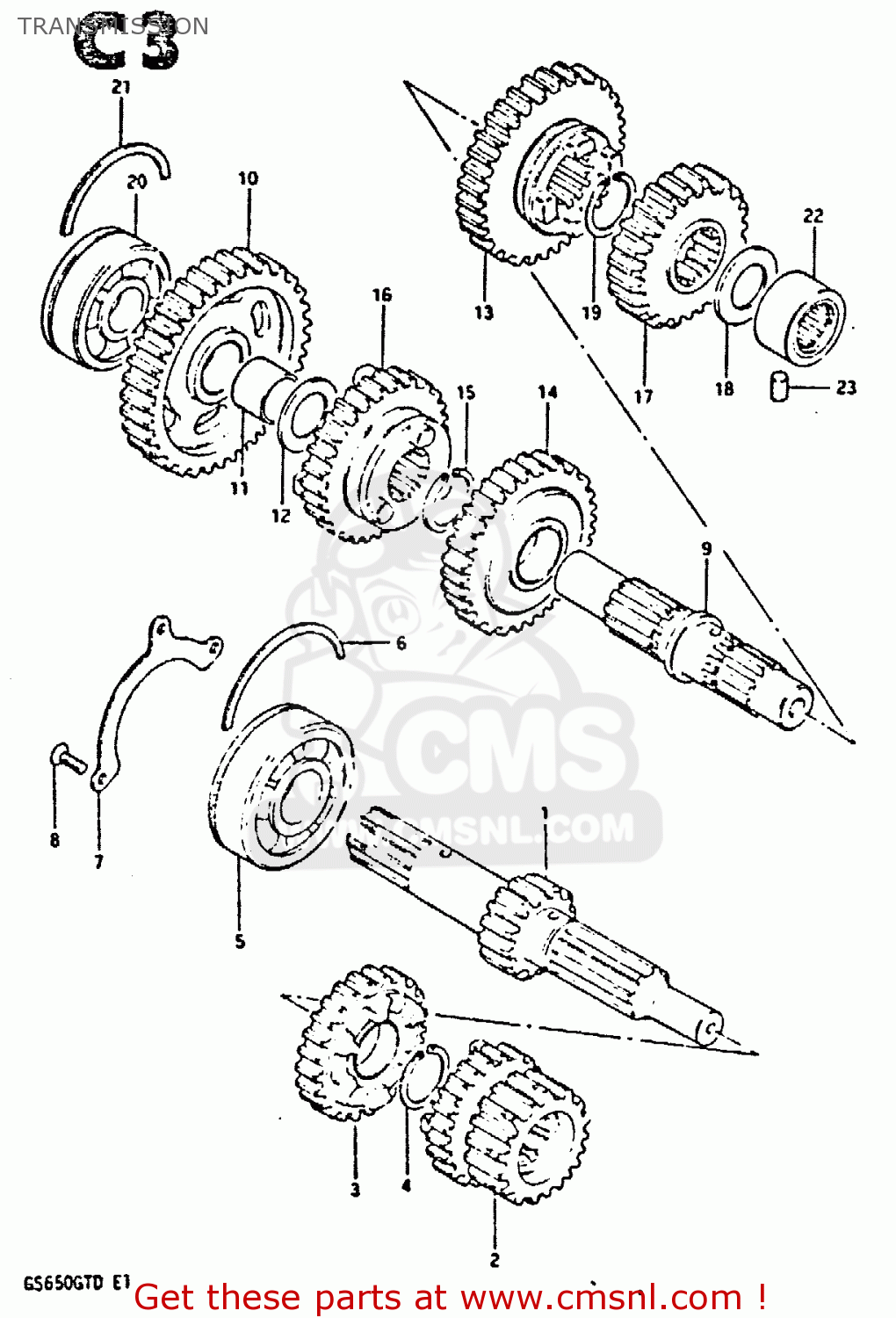

TRANSMISSION

ref

part #

description

quantity

1

2412134201
ref: 1

SHAFT,COUNTER

€ 139.00

2

2422134201
ref: 2

GEAR,2ND & 3RD DRIVE

€ 118.50

3

2424034200
ref: 3

GEAR,FOURTH DRIVE

€ 86.50

4

0938025010
ref: 4

CIRCLIP

€ 3.00

5

0926225051
ref: 5

BEARING(25X62X17)

€ 59.50

6

0939062006
ref: 6

C-RING

€ 5.00

7

2474145000
ref: 7

RETAINER,CNTR SHAFT BEARING

€ 8.00

8

0212206168
ref: 8

SCREW

€ 2.00

9

2413134200
ref: 9

SHAFT,DRIVE

€ 118.50

10

2431134200
ref: 10

GEAR,FIRST DRIVEN

€ 115.00

11

0930020023
ref: 11

BUSHING

€ 0.00

12

0821120323
ref: 12

WASHER

€ 2.50

13

2432034200
ref: 13

GEAR,SECOND DRIVEN

€ 71.00

14

2433034200
ref: 14

GEAR,THIRD DRIVEN

€ 69.50

15

0938025010
ref: 15

CIRCLIP

€ 3.00

16

2434134200
ref: 16

GEAR,FOURTH DRIVEN

€ 112.00

17

2435134200
ref: 17

GEAR,REDUCTION(NT:24)

€ 110.50

18

2435934200
ref: 18

THRUST WASHER,REDUCTION

€ 3.50

19

0938025010
ref: 19

CIRCLIP

€ 3.00

20

0926220055
ref: 20

BALL BEARING 20X47X14

€ 20.00

21

0939047003
ref: 21

C RING

€ 3.00

22

0926320038
ref: 22

BEARING(20X34X16)

€ 30.50

23

0422107129
ref: 23

PIN

€ 1.50
