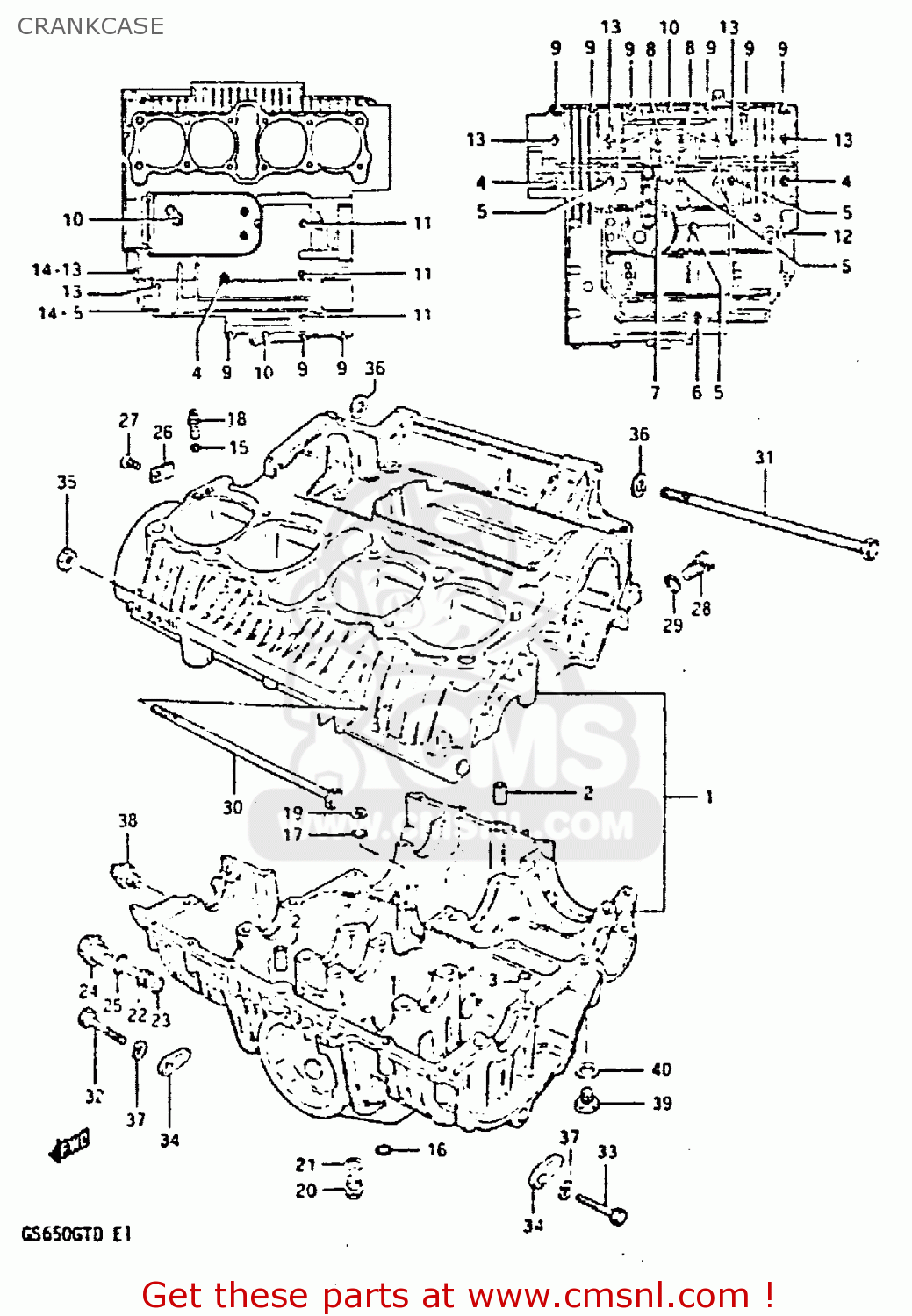

CRANKCASE

ref

part #

description

quantity

1-1

1130034890
ref: 1-1
~E.NO.148662 TO 1130

CRANKCASE SET

€ 571.50

1-2

1130034891
ref: 1-2
E.NO.148663~

CRANKCASE SET

€ 571.50

2

0920611005
ref: 2

PIN (11X20)(SUS)

€ 6.50

3

0920613004
ref: 3

PIN(10.4X13X22)

€ 3.00

4

0910308122
ref: 4

BOLT(8X110)

€ 4.00

5

0910308091
ref: 5

BOLT

€ 3.50

6

0910308038
ref: 6

BOLT(8X135)

€ 4.00

7

0910308040
ref: 7

BOLT(8X140)

€ 4.00

8

0910608015
ref: 8

BOLT

€ 4.50

9

0151706405
ref: 9

BOLT (6X40)

€ 2.00

10

0151706555
ref: 10

BOLT 6X55

€ 2.00

11

0151706905
ref: 11

BOLT (6X90)

€ 3.50

12

0151708705
ref: 12

BOLT (8X70)

€ 2.50

13

0151708955
ref: 13

BOLT (8X95)

€ 3.50

14

0831616085
ref: 14

NUT 8MM

€ 3.00

15

0928004004
ref: 15

O RING(D:1.2,ID:4)

€ 2.00

16

0928012005
ref: 16

O-RING

€ 5.00

17

0928013001
ref: 17

O RING(D:3.2,ID:12.9)

€ 4.00

18

0949324009
ref: 18

JET(12)

€ 10.50

19

0821205161
ref: 19

WASHER

€ 1.50

20

0924716002
ref: 20

PLUG

€ 3.50

21

0916816002
ref: 21

GASKET(16X22X2) (NAS)

€ 2.00

22

1132945400
ref: 22

PIN,OIL GALLERY

€ 2.50

23

0928010005
ref: 23

SEAL (D:1.9 ID:9.8)

€ 3.50

24

0924718001
ref: 24

PLUG

€ 8.00

25

0928018004
ref: 25

O RING(D:2.4,ID:17.8)

€ 5.50

26

1131934200
ref: 26

PLATE,OIL GALLERY PLUG

€ 2.50

27

0212206168
ref: 27

SCREW

€ 2.00

28

0924712005
ref: 28

PLUG

€ 0.00

29

0916812002
ref: 29

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

30

0910010138
ref: 30

BOLT

€ 11.50

31

0910010142
ref: 31

BOLT

€ 0.00

32

0110710555
ref: 32

BOLT 10X55

€ 3.50

33

0110710405
ref: 33

BOLT

€ 2.50

34

0915910020
ref: 34

NUT

€ 7.50

35

0831931205
ref: 35

NUT

€ 0.00

36

0832211105
ref: 36

WASHER

€ 2.50

37

0832121105
ref: 37

LOCK WASHER

€ 3.00

38

3782034200
ref: 38

SWITCH ASSEMBLY

€ 29.00

39

0924714001
ref: 39

PLUG

€ 5.00

40

0916814004
ref: 40

GASKET(14X19.2X2) (NAS)

€ 2.50
