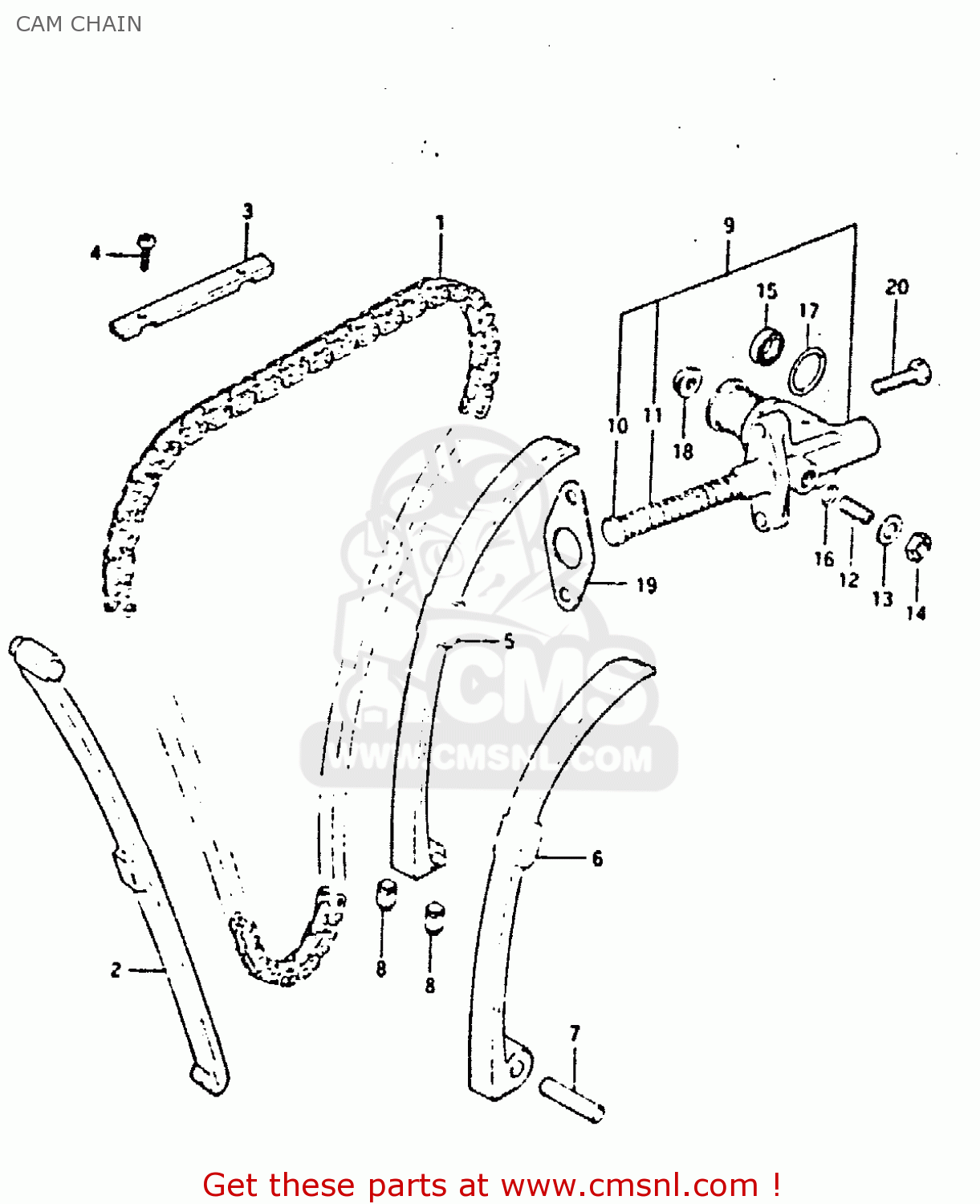

CAM CHAIN

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277134200
ref: 2

GUIDE,CAM CHAIN

€ 35.00

3

1278249140
ref: 3

GUIDE,CAM CHAIN

€ 37.50

4

0211205108
ref: 4

SCREW

€ 2.00

5

1281034201
ref: 5
~E.NO.148662

TENSIONER,CAM CHAIN

€ 60.00

6

1281134210
ref: 6
E.NO.148663~

TENSIONER,CAM CHAIN

€ 56.50

7

0920210005
ref: 7
E.NO.148663~

PIN

€ 2.00

8-1

1281444101
ref: 8-1
~E.NO.148662

CUSHION,CAM CHAIN TENSIONER

€ 8.50

8-2

1281434200
ref: 8-2
E.NO.148663~

CUSHION,CAM CHAIN TENSIONER

€ 6.50

9

1283047011
ref: 9

ADJUSTER ASSEMBLY,TENSIONER

€ 167.00

10

1283347001
ref: 10

ROD,PUSH

€ 25.00

11

0944012017
ref: 11

SPRING

€ 2.50

12

1283845010
ref: 12

SCREW,TENSIONER ADJUST

€ 6.00

13

0832211085
ref: 13

WASHER,8.5X16X

€ 1.50

14

0831011085
ref: 14

NUT

€ 1.50

15

0928410006
ref: 15

SEAL,OIL(10X16X4)

€ 4.00

16

0928006005
ref: 16

O RING(D:1.9,ID:5.7)

€ 2.50

17

0928021013
ref: 17

O RING(D:2.4,ID:20.8)

€ 4.50

18

0831616065
ref: 18

NUT

€ 2.50

19

1283731310
ref: 19
FROM 12837-47000

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

20

0912806022
ref: 20

SCREW

€ 2.50

all assemblies
