FUEL TANK

GS650GT 1983 (D) (E01 E02 E04 E06)

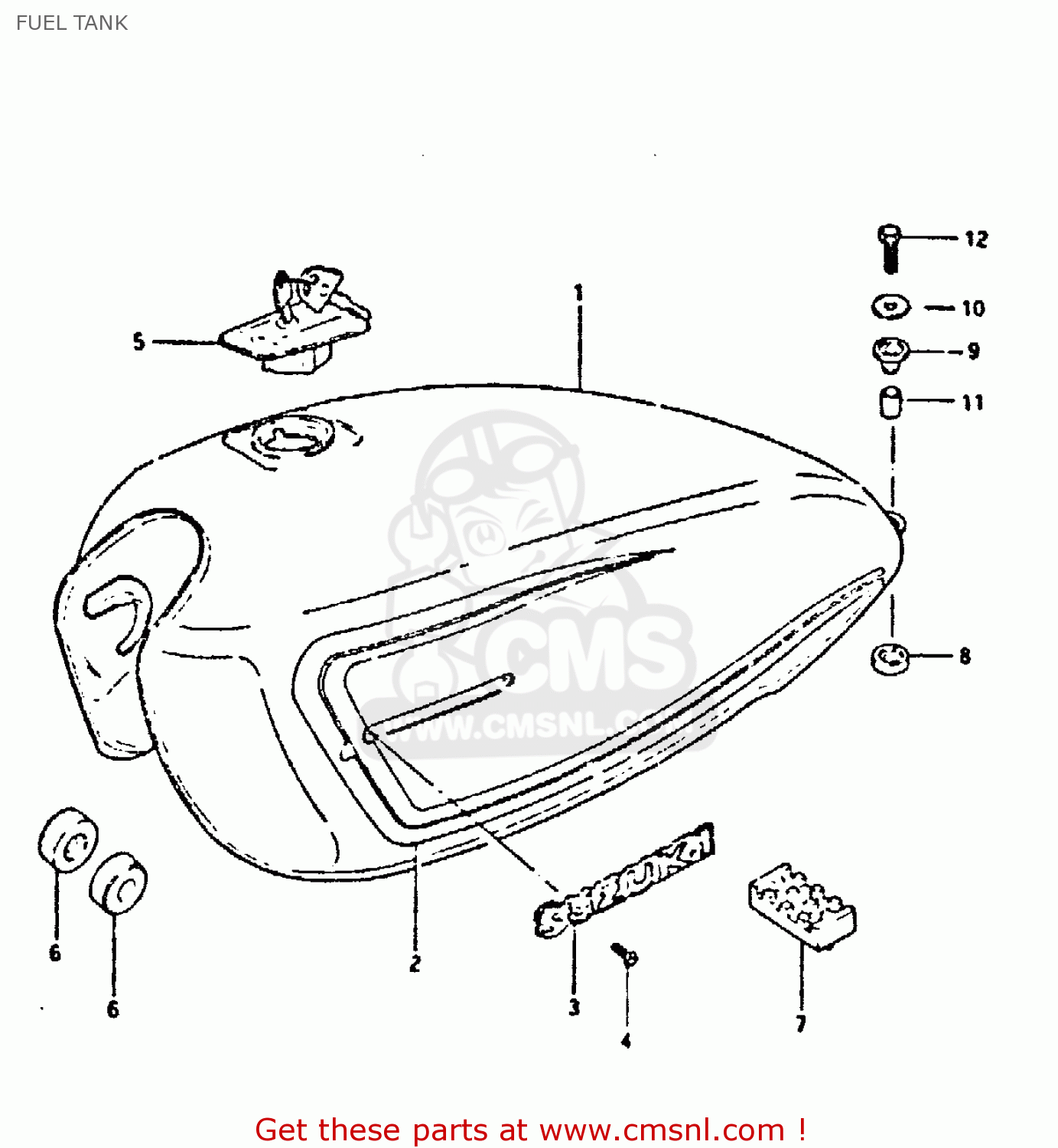

Fuel tank diagram GS650GT 1983 (D) (E01 E02 E04 E06)

prices are in EUR

ref

part #

description

quantity

1-1

4410034220019
ref: 1-1

TANK ASSEMBLY,FUEL

€ 201.50

1-2

441003422005L
ref: 1-2

TANK ASSEMBLY,FUEL

€ 201.50

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

681103422081P
ref: 2-1
FOR 019, 05L

TAPE SET,FUEL TANK

€ 0.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

6811144600
ref: 3

EMBLEM

€ 0.00

0213203065
ref: 4

SCREW 3X6

€ 2.00

4420049017KEY
ref: 5

CAP SET,FUEL TANK

€ 121.00

0932910007
ref: 6

CUSHION

€ 3.00

4454134500
ref: 7

CUSHION,FUEL TANK CTR

€ 13.00

0932014013
ref: 8

CUSHION

€ 3.00

0932010020
ref: 9

CUSHION

€ 4.00

0916006004
ref: 10

WASHER (6.5X24X1.6)

€ 1.50

0918006072
ref: 11

SPACER

€ 2.00

0110706308
ref: 12

BOLT

€ 2.50
