CYLINDER
GS650GT 1983 (D) (E01 E02 E04 E06)

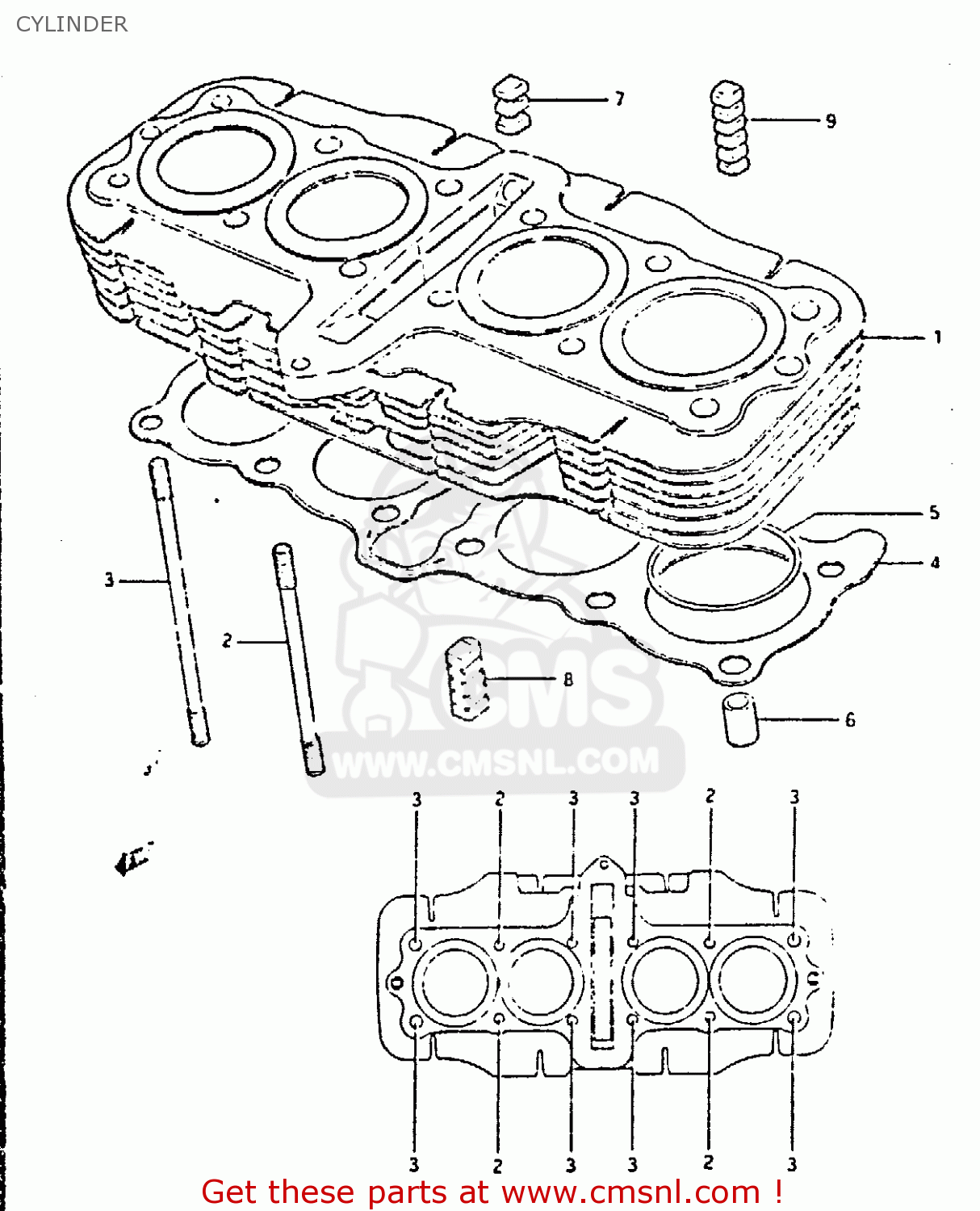

Cylinder diagram GS650GT 1983 (D) (E01 E02 E04 E06)
CYLINDER GS650GT 1983 (D) (E01 E02 E04 E06)
×
prices are in EUR
ref
part #
description
quantity
1
1121034210
ref: 1
CYLINDER
€ 0.00
2
0910808061
ref: 2
BOLT,STUD
€ 7.00
3
0910808062
ref: 3
BOLT,STUD
€ 4.50
4
1124134201
ref: 4
GASKET,CYLINDER (MCA)
€ 24.00
5
0928061001
ref: 5
O RING(D:2,ID:61)
€ 4.00
6
0920613001
ref: 6
PIN
€ 2.50
7
1125334200
ref: 7
PIN,EXHAUST VALVE
€ 6.50
8
1125334200
ref: 8
PIN,EXHAUST VALVE
€ 6.50
9
1125334200
ref: 9
PIN,EXHAUST VALVE
€ 6.50
