AIR CLEANER (MODEL Z)

GS750T 1982 (Z) USA (E03)

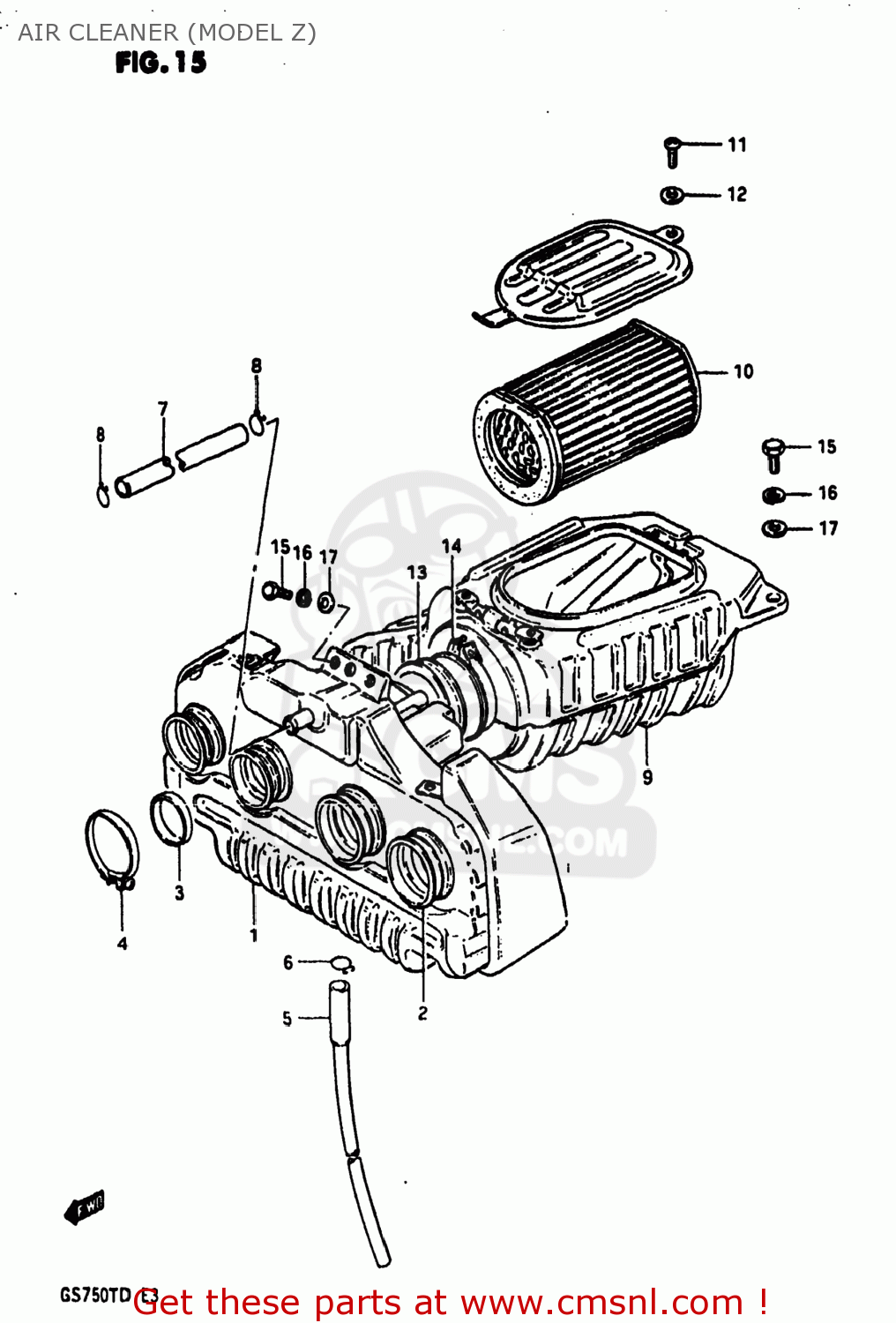

Air cleaner (model z) diagram GS750T 1982 (Z) USA (E03)

AIR CLEANER (MODEL Z) GS750T 1982 (Z) USA (E03)

AIR CLEANER (MODEL Z) GS750T 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1371045900
ref: 1

CASE COMP,AIR CLEANER

€ 71.50

2

1388145450
ref: 2

TUBE,OUTLET

€ 25.50

3

1388545450
ref: 3

RING

€ 8.00

4

0940260306
ref: 4
09402-60208

CLAMP

€ 4.50

5

1387000010
ref: 5
13870-11458

DRAIN TUBE

€ 13.50

6

0940114301
ref: 6

CLIP

€ 2.00

7

1385100220
ref: 7
09352-11153-600

TUBE,BREATHER

€ 13.50

8

0940114301
ref: 8

CLIP

€ 2.00

9

1370045810
ref: 9

CLEANER SET,AIR,REAR

€ 176.50

10

1378045500
ref: 10

FILTER,AIR CLEANER

€ 41.00

11

0211205128
ref: 11
02112-05127

SCREW

€ 2.50

12

0832221058
ref: 12
08322-01057

WASHER

€ 2.50

13

1379549000
ref: 13

HOSE,AIR CLEANER

€ 34.50

14

1379649000
ref: 14

BAND

€ 6.00

15

0110706208
ref: 15
01500-06207

BOLT

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

0832221068
ref: 17
08322-01067

WASHER

€ 2.00
