STAND
GS750T 1982 (Z) USA (E03)

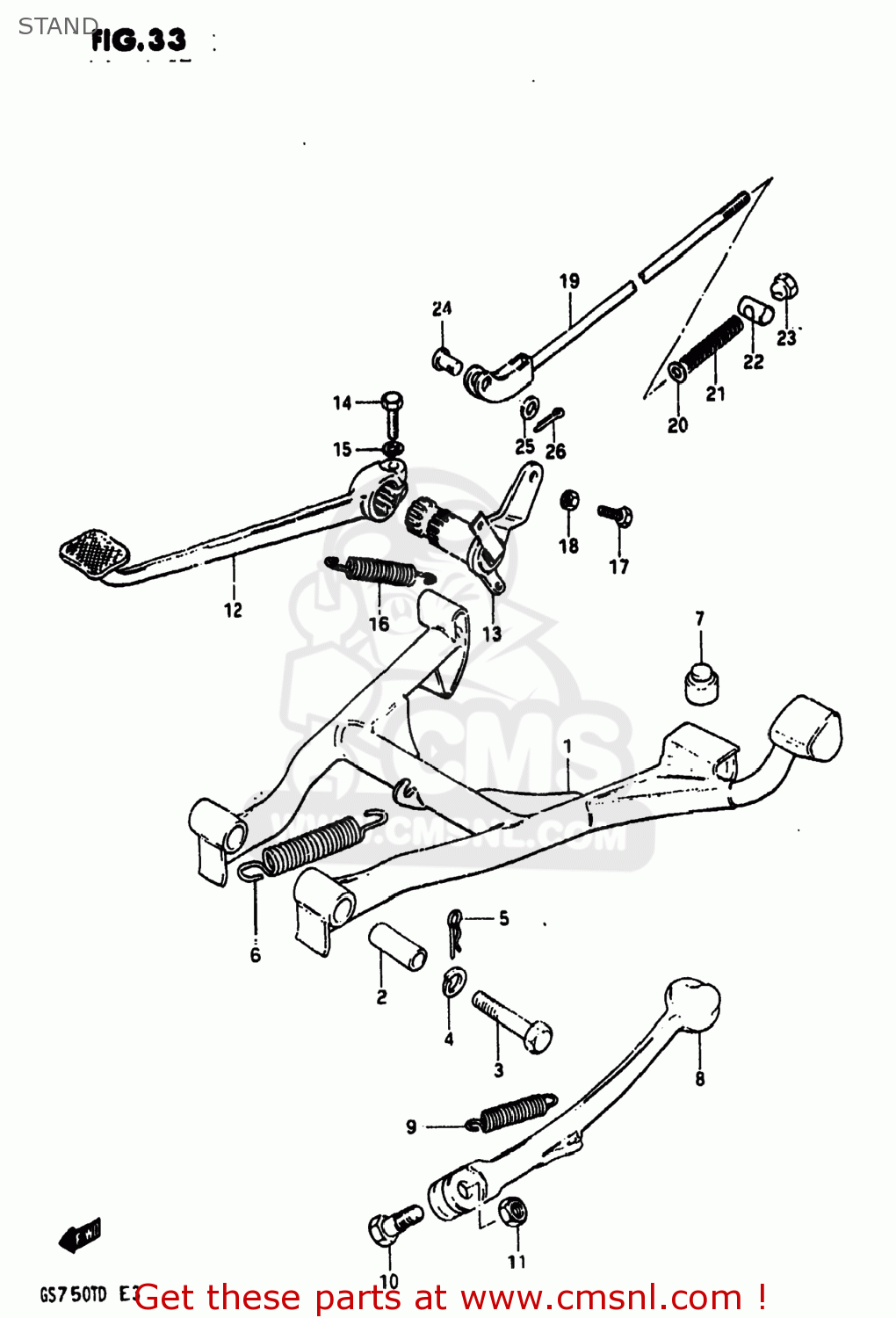

Stand diagram GS750T 1982 (Z) USA (E03)
STAND GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210049200
ref: 1-1
STAND,CENTER
€ 197.00
1-2
4210049301
ref: 1-2
42100-08C00
STAND,CENTER
€ 211.50
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944320001
ref: 6
09443-20001-XC0
SPRING
€ 11.00
7
0932110001
ref: 7
CUSHION
€ 2.50
8
4231149500
ref: 8
STAND,SIDE
€ 50.00
9
0944317008
ref: 9
09443-17008-XC0
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12
4311049500
ref: 12
PEDAL,BRAKE
€ 30.50
13
4312045900
ref: 13
ARM,BRAKE PEDAL
€ 17.00
14
0110708258
ref: 14
01500-08257
BOLT
€ 2.50
15
0832121088
ref: 15
08321-01087
LOCK WASHER
€ 2.00
16
0944314013
ref: 16
SPRING
€ 21.50
17
0110706258
ref: 17
01500-06257
BOLT
€ 2.00
18
0831011068
ref: 18
08310-00067
NUT
€ 2.50
19
4330045900
ref: 19
ROD ASSEMBLY,REAR BRAKE
€ 10.50
20
0832221068
ref: 20
08322-01067
WASHER
€ 2.00
21
0944009004
ref: 21
SPRING
€ 2.00
22-1
0920913003
ref: 22-1
09209-13018
PIN
€ 3.50
22-2
0920913005
ref: 22-2
09209-13018
PIN
€ 3.50
23-1
0915006001
ref: 23-1
09150-06010
NUT
€ 3.50
23-2
0915006009
ref: 23-2
09150-06010
NUT (6MM)
€ 3.50
24
0920006013
ref: 24
PIN(L:13.5)
€ 2.00
25
0832221068
ref: 25
08322-01067
WASHER
€ 2.00
26
0411120208
ref: 26
04111-2020A
PIN 20X20
€ 1.50
