CAM CHAIN (MODEL D)
GS750T 1982 (Z) USA (E03)

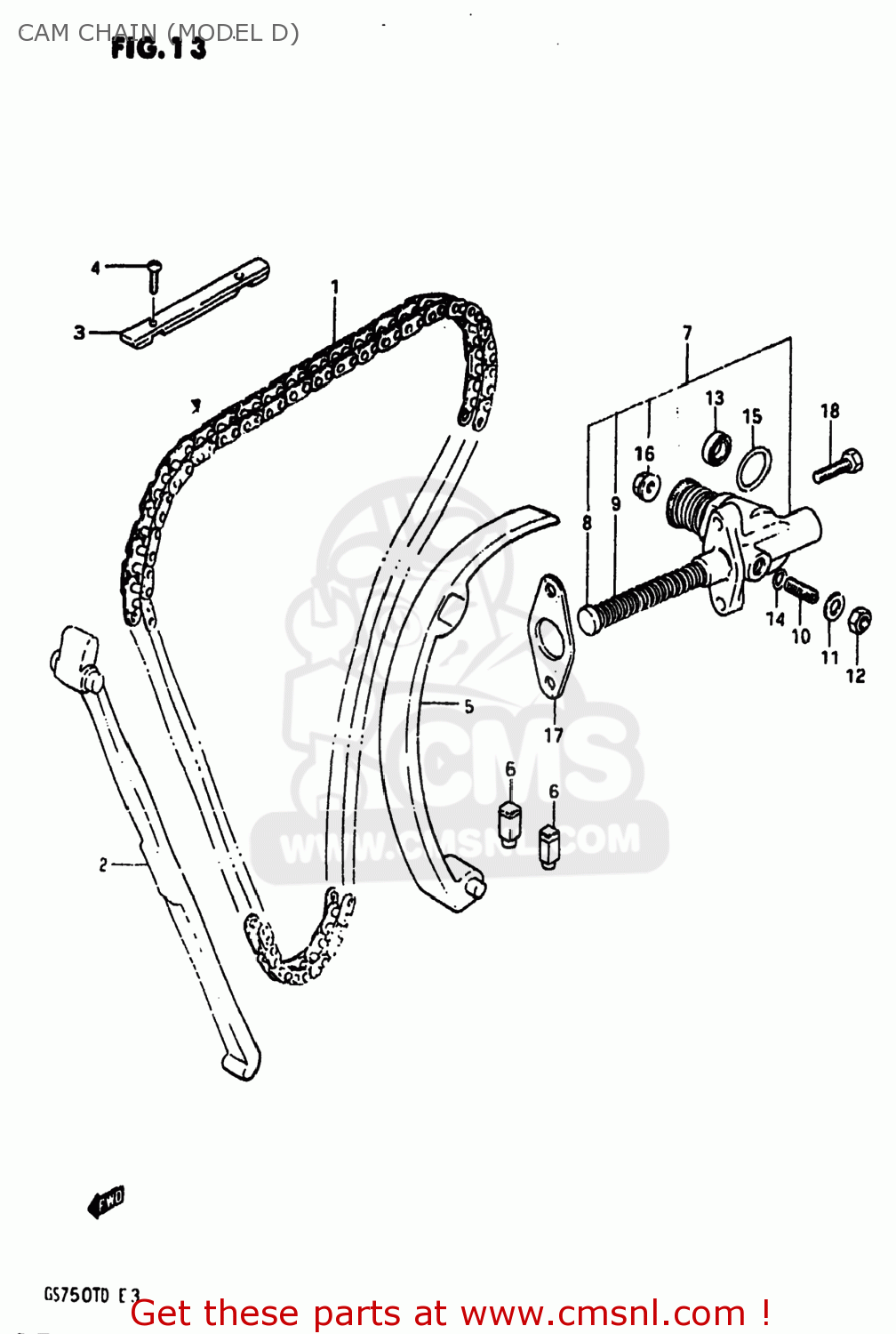

Cam chain (model d) diagram GS750T 1982 (Z) USA (E03)
CAM CHAIN (MODEL D) GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276045440
ref: 1
12760-40C01
CHAIN,CAMSHAFT DRIVE
€ 114.50
2
1277145451
ref: 2
GUIDE,CAM CHAIN NO.1
€ 53.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
€ 89.50
4
0211205128
ref: 4
02112-05127
SCREW
€ 2.50
5
1281044150
ref: 5
TENSIONER,CAM CHAIN
€ 64.00
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
€ 8.50
7
1283047011
ref: 7
12830-0930V
ADJUSTER ASSEMBLY,TENSIONER
€ 167.00
8
1283347001
ref: 8
ROD,PUSH
€ 25.00
9
0944012017
ref: 9
SPRING
€ 2.50
10
1283845010
ref: 10
12838-45001
SCREW,TENSIONER ADJUST
€ 6.00
11
0832211085
ref: 11
08322-0108A
WASHER,8.5X16X
€ 1.50
12
0831011085
ref: 12
08310-0008A
NUT
€ 1.50
13
0928410006
ref: 13
SEAL,OIL(10X16X4)
€ 4.00
14
0928006003
ref: 14
09280-06005
O-RING
€ 2.50
15
0928021013
ref: 15
O RING(D:2.4,ID:20.8)
€ 4.50
16
0831616065
ref: 16
08316-1006B
NUT
€ 2.50
17
1283747000
ref: 17
12837-47010
GASKET,TENSIONER ADJUSTER (MCA)
€ 7.50
18
0912806022
ref: 18
09103-06212
SCREW
€ 2.50
