GS750T 1982 (Z) USA (E03)

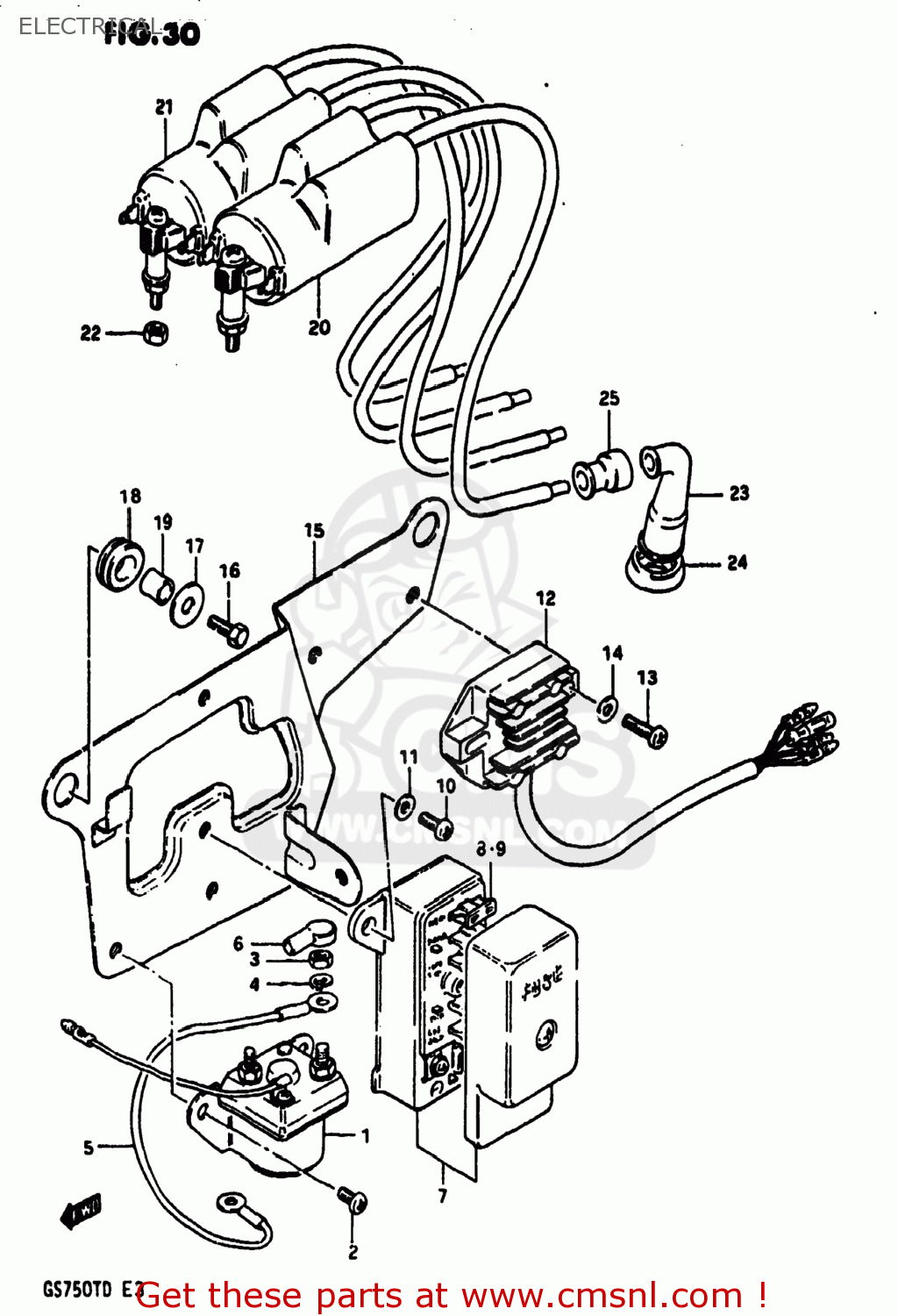

Electrical diagram GS750T 1982 (Z) USA (E03)
ELECTRICAL GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206108
ref: 2
02112-06107
SCREW
€ 1.50
3
0831022068
ref: 3
08310-00067
NUT 6MM
€ 2.50
4
0832121068
ref: 4
08321-01067
LOCK WASHER
€ 2.50
5-1
3385044110
ref: 5-1
33850-03201
CORD,BATTERY MINUS
€ 8.50
5-2
3385049002
ref: 5-2
33850-03201
WIRE,STARTER MOTOR LEAD
€ 8.50
6
3186135100
ref: 6
31861-48B10
CAP,STARTER RELAY
€ 4.50
7
3674049400
ref: 7
36740-45D00
BOX ASSEMBLY,FUSE
€ 69.50
8
0948110101
ref: 8
FUSE(10A)
€ 2.50
9
0948115101
ref: 9
FUSE(15A)
€ 1.50
10
0211206128
ref: 10
02112-06127
SCREW 6X12
€ 2.00
11
0832221068
ref: 11
08322-01067
WASHER
€ 2.00
12
3280047120
ref: 12
32800-47121
RECTIFIER ASSEMBLY
€ 248.00
13
0211206208
ref: 13
02112-06207
SCREW
€ 2.00
14
0832221068
ref: 14
08322-01067
WASHER
€ 2.00
15
4741045900
ref: 15
HOLDER COMP,ELECTRONIC PARTS
€ 9.00
16
0110706168
ref: 16
01500-06167
BOLT, UPPER
€ 3.00
17
0916006063
ref: 17
09160-06054
WASHER (6.5X22X1.6)
€ 2.00
18
0932008013
ref: 18
CUSHION
€ 4.00
19
0918007005
ref: 19
09180-06259
SPACER (7X9X7)
€ 2.50
20
3341049210
ref: 20
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
21
3342049210
ref: 21
33410-31311
COIL ASSEMBLY,IGNITION
€ 182.00
22
0831011068
ref: 22
08310-00067
NUT
€ 2.50
23
3351045010
ref: 23
CAP ASSY,SPARK PLUG
€ 23.00
24
3354132410
ref: 24
33541-38210
SEAL,SPARK PLUG
€ 7.00
25
3354298000
ref: 25
33542-38B00
SEAL,SPARK PLU
€ 4.50
