FRONT FORK
GS750T 1982 (Z) USA (E03)

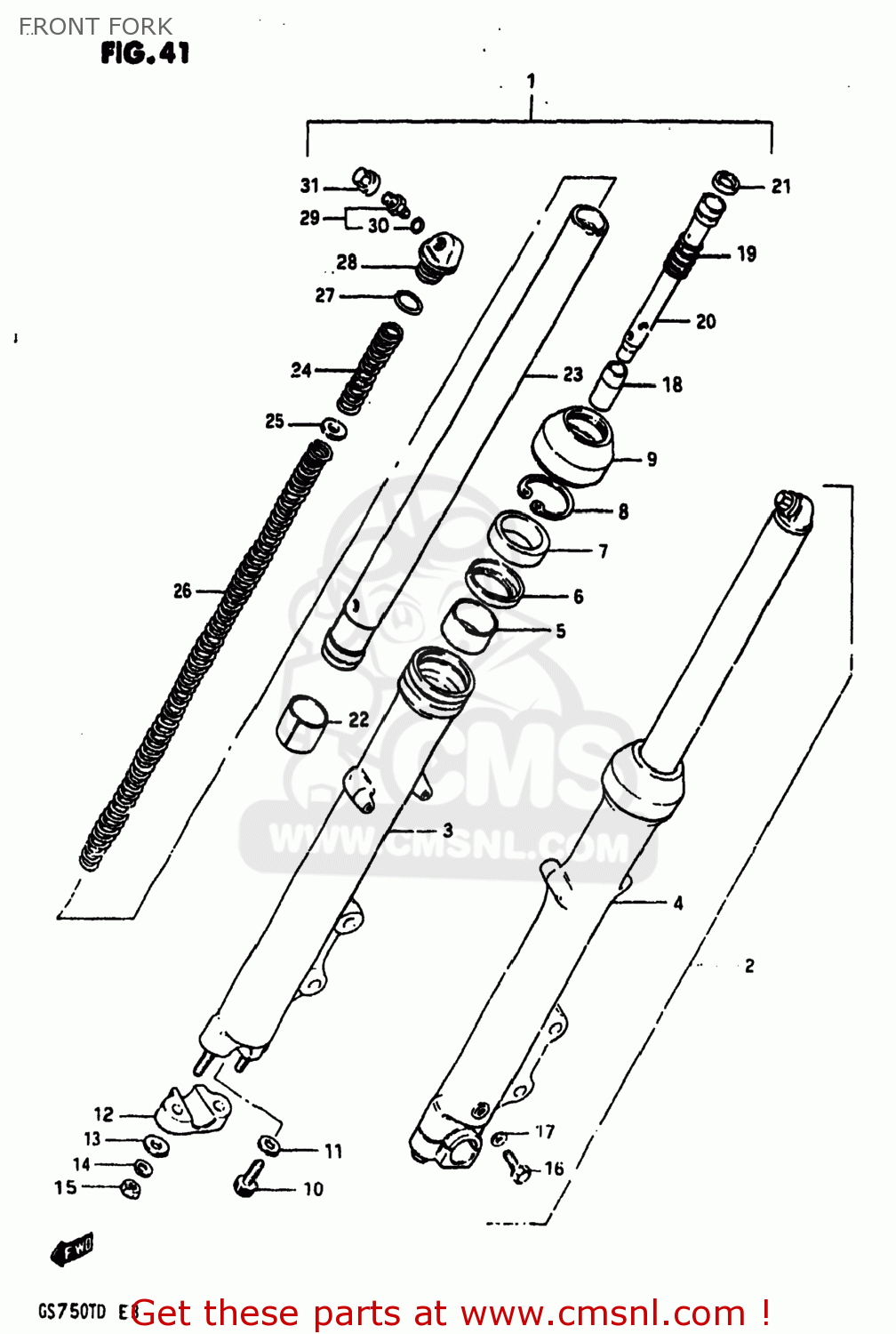

Front fork diagram GS750T 1982 (Z) USA (E03)
FRONT FORK GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110345941
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 258.50
2
5110445941
ref: 2
DAMPER ASSEMBLY,LEFT
€ 276.00
3
5113045930
ref: 3
TUBE,FORK,OUTER,RIGHT
€ 104.00
4
5114045930
ref: 4
TUBE,FORK,LEFT,OUTER
€ 134.50
5
5115245400
ref: 5
BUSH,GUIDE
€ 14.00
6
5116845031
ref: 6
51168-30B00
SPACER,SEAL
€ 5.00
7
5115333300
ref: 7
51153-19D10
OIL SEAL,FRONT FORK
€ 14.00
8
5115645400
ref: 8
51156-01A00
CIRCLIP,FORK OIL SEAL
€ 3.50
9
5157134200
ref: 9
51571-20520
BOOT
€ 19.50
10
5114748130
ref: 10
BOLT(8X27)
€ 3.50
11
5114831030
ref: 11
51148-36011
GASKET (NAS)
€ 4.00
12
5113231030
ref: 12
HOLDER,AXLE
€ 31.50
13
0832221088
ref: 13
08322-01087
WASHER
€ 2.00
14
0832121088
ref: 14
08321-01087
LOCK WASHER
€ 2.00
15
0914008005
ref: 15
09140-08017
NUT (8MM)
€ 1.50
16
0110706088
ref: 16
09100-06157
BOLT
€ 2.50
17
5118331030
ref: 17
GASKET,DRAIN,PLUG (NAS)
€ 4.00
18
5119545030
ref: 18
PIECE,OIL LOCK
€ 16.00
19
5117745030
ref: 19
SPRING,FORK REBOUND
€ 4.00
20
5114645030
ref: 20
CYLINDER,FRONT FORK
€ 25.50
21
5119631230
ref: 21
RING
€ 7.50
22
5112145400
ref: 22
PISTON
€ 22.00
23
5111045940
ref: 23
TUBE,FORK,INNER
€ 248.00
24
5117145940
ref: 24
SPRING
€ 4.50
25
5119247200
ref: 25
WASHER,SPRING
€ 2.50
26
5118445940
ref: 26
SPRING,FRONT FORK
€ 10.50
27
5111731030
ref: 27
51181-31030
O-RING
€ 3.50
28
5135145440
ref: 28
BOLT,FORK INNER TUBE
€ 17.00
29
5129345440
ref: 29
VALVE,AIR
€ 17.00
30
5111745440
ref: 30
09280-06005
O-RING
€ 2.50
31
5129445440
ref: 31
CAP
€ 9.50
