GEAR SHIFTING
GS750T 1982 (Z) USA (E03)

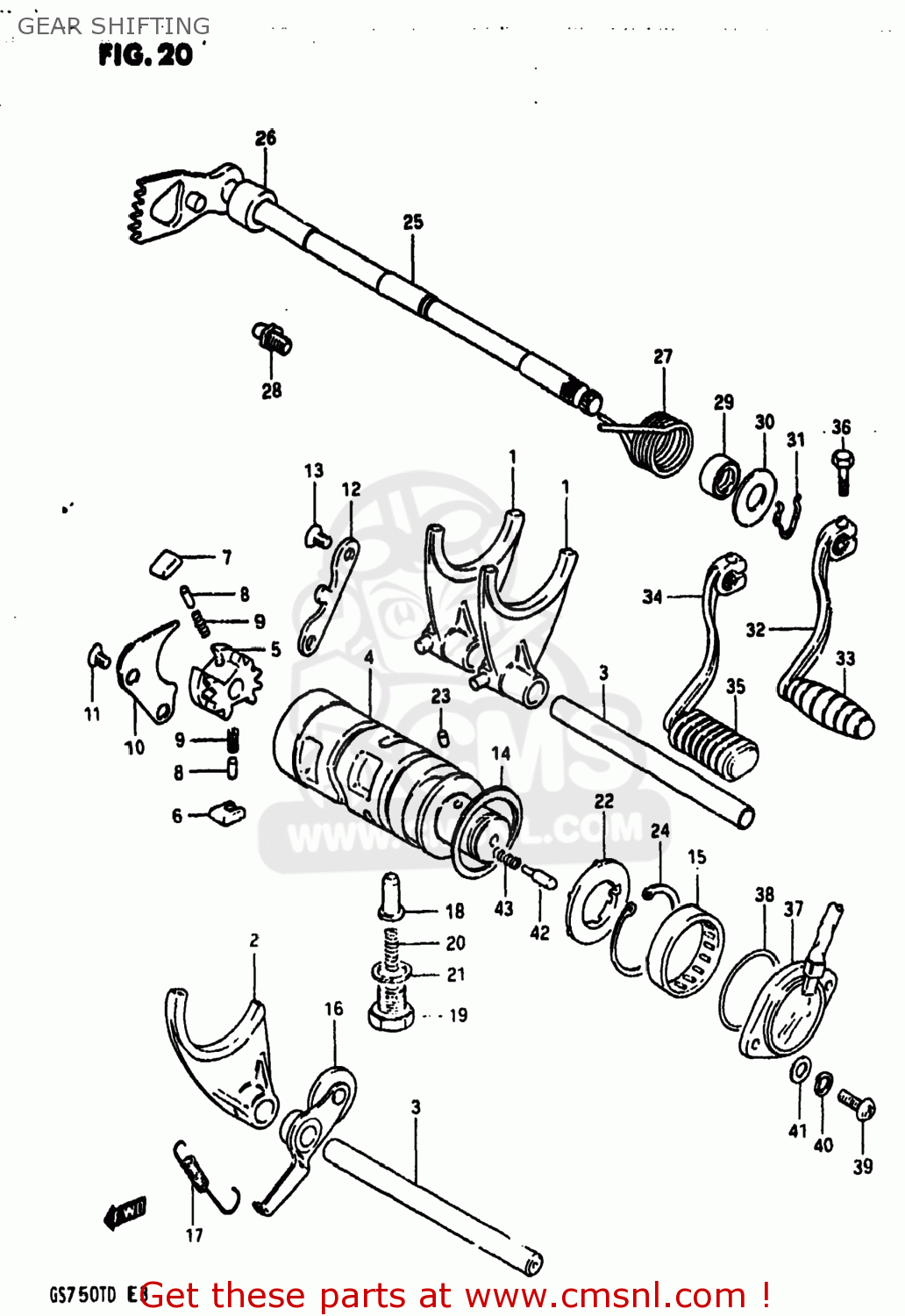

Gear shifting diagram GS750T 1982 (Z) USA (E03)
GEAR SHIFTING GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521134000
ref: 1
FORK,GEAR SHIFT NO.1
€ 54.50
2
2523134000
ref: 2
25231-34X00
FORK,GEAR SHIFT NO.3
€ 72.50
3
2541149200
ref: 3
25411-33301
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531045400
ref: 4
CAM,GEAR SHIFT
€ 108.00
5
2532211000
ref: 5
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
6
2532311000
ref: 6
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
€ 1.50
9
0944004003
ref: 9
SPRING
€ 1.50
10
2533149200
ref: 10
25331-49201
LIFTER,GEAR SHIFT PAWL
€ 43.50
11
0212206128
ref: 11
02122-06127
SCREW
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
€ 51.50
13
0212206128
ref: 13
02122-06127
SCREW
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
€ 17.50
16
2535045400
ref: 16
STOPPER,GEAR SHIFTING
€ 8.50
17
0944308019
ref: 17
SPRING
€ 2.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
20
0944006020
ref: 20
SPRING
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
€ 2.50
22
2538145400
ref: 22
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
23
0621104063
ref: 23
04221-04069
PIN 4X6
€ 2.00
24
0833131258
ref: 24
08331-3125A
CIRCLIP,25MM
€ 2.00
25
2551045400
ref: 25
SHAFT,GEAR SHIFT
€ 88.00
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
0944426017
ref: 27
SPRING
€ 5.00
28
2567101000
ref: 28
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
0916012020
ref: 30
09160-12089
WASHER (12.5X27X1.6)
€ 2.00
31
0938412001
ref: 31
08331-3112A
SPRING,RETAINER
€ 2.00
32
2560049000
ref: 32
LEVER ASSY,GEAR SHIFT
€ 54.00
33
2565216500
ref: 33
RUBBER,GEAR SHIFT PEDAL
€ 4.00
34
2560049020
ref: 34
LEVER ASSEMBLY,GEAR SHIFTING
€ 28.50
35
2565249300
ref: 35
RUBBER,PEDAL
€ 5.50
36
0110708208
ref: 36
01500-08207
BOLT
€ 3.00
37
3772045100
ref: 37
TERMINAL BASE ASSY,GEAR SHIFT
€ 92.50
38
0928026003
ref: 38
09280-26005
O-RING (D:2.4 ID:26.2)
€ 2.50
39
0211205208
ref: 39
02112-05207
SCREW 5X20
€ 3.00
40
0832121058
ref: 40
08321-0105A
LOCK WASHER
€ 2.00
41
0832221058
ref: 41
08322-01057
WASHER
€ 2.50
42
0920905011
ref: 42
PIN(5X15.5)
€ 2.00
43
0944004010
ref: 43
SPRING
€ 1.50
