STEERING STEM
GS750T 1982 (Z) USA (E03)

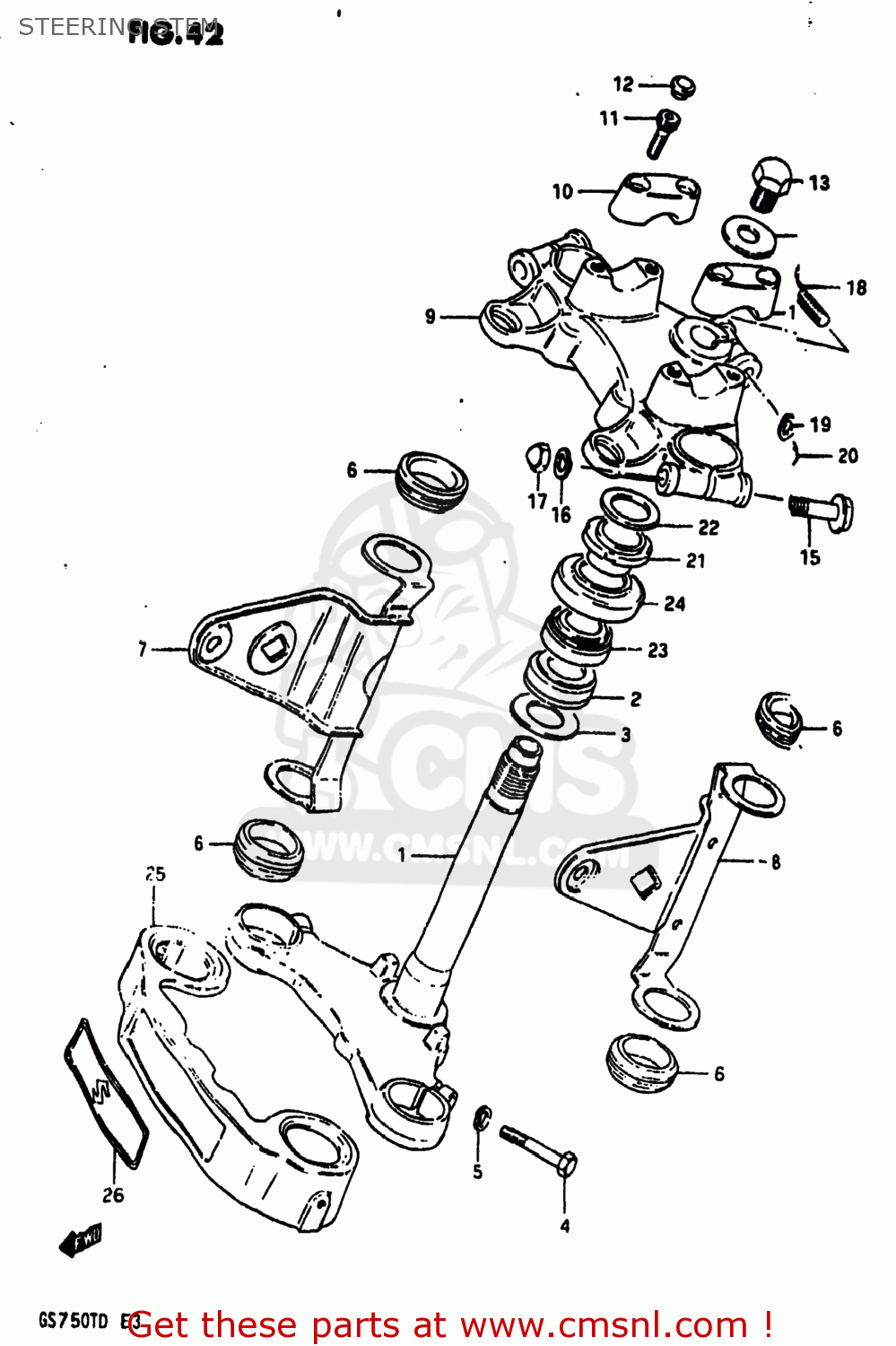

Steering stem diagram GS750T 1982 (Z) USA (E03)
STEERING STEM GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5140134811
ref: 1
51400-44870
STEM,STEERING
€ 215.50
2
0926530005
ref: 2
09265-30009
BEARING
€ 49.50
3
0821130402
ref: 3
09181-30184
WASHER,THRUST
€ 4.00
4
0110710408
ref: 4
01500-10407
BOLT 10X40
€ 3.00
5
0832121108
ref: 5
08321-01107
LOCK WASHER
€ 2.00
6
5155347000
ref: 6
51553-34280
CUSHION,HEADLAMP BRACKET
€ 3.50
7
5153034230
ref: 7
BRACKET,HEADLAMP,RIGHT
€ 26.00
8
5154034230
ref: 8
BRACKET,HEADLAMP,LEFT
€ 28.50
9
5131134200291
ref: 9
HEAD,STEERING STEM
€ 87.50
10
5621134300291
ref: 10
HOLDER,HANDLEBAR(BLACK)
€ 42.00
11
0910608013
ref: 11
07130-0830A
BOLT
€ 3.00
12
0925006004
ref: 12
CAP(OD:14.5)
€ 1.50
13
0910412013
ref: 13
BOLT(12X20)
€ 6.50
14
0916012006
ref: 14
09160-12089
WASHER
€ 2.00
15
0151710558
ref: 15
01550-10557
BOLT 10X55
€ 3.00
16
0832131108
ref: 16
08321-01107
LOCK WASHER
€ 2.00
17
0914510002
ref: 17
NUT
€ 4.00
18
0151708508
ref: 18
01550-08507
BOLT
€ 3.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0831311085
ref: 20
08313-10083
NUT,M8X1.25X12
€ 2.00
21
5163134200
ref: 21
NUT,STEERING STEM
€ 23.00
22
0916018002
ref: 22
WASHER(18.5X24X1)
€ 2.00
23
0926525008
ref: 23
09265-25019
TAPER,ROLLER BEARING
€ 48.50
24
5164340502
ref: 24
DUST SEAL,STEERING UPR
€ 8.00
25
5187134501
ref: 25
COVER,FRONT FORK
€ 34.00
26-1
6821134500
ref: 26-1
EMBLEM
€ 8.50
26-2
6821134510
ref: 26-2
EMBLEM
€ 0.00
