SIGNAL GENERATOR

GS750T 1982 (Z) USA (E03)

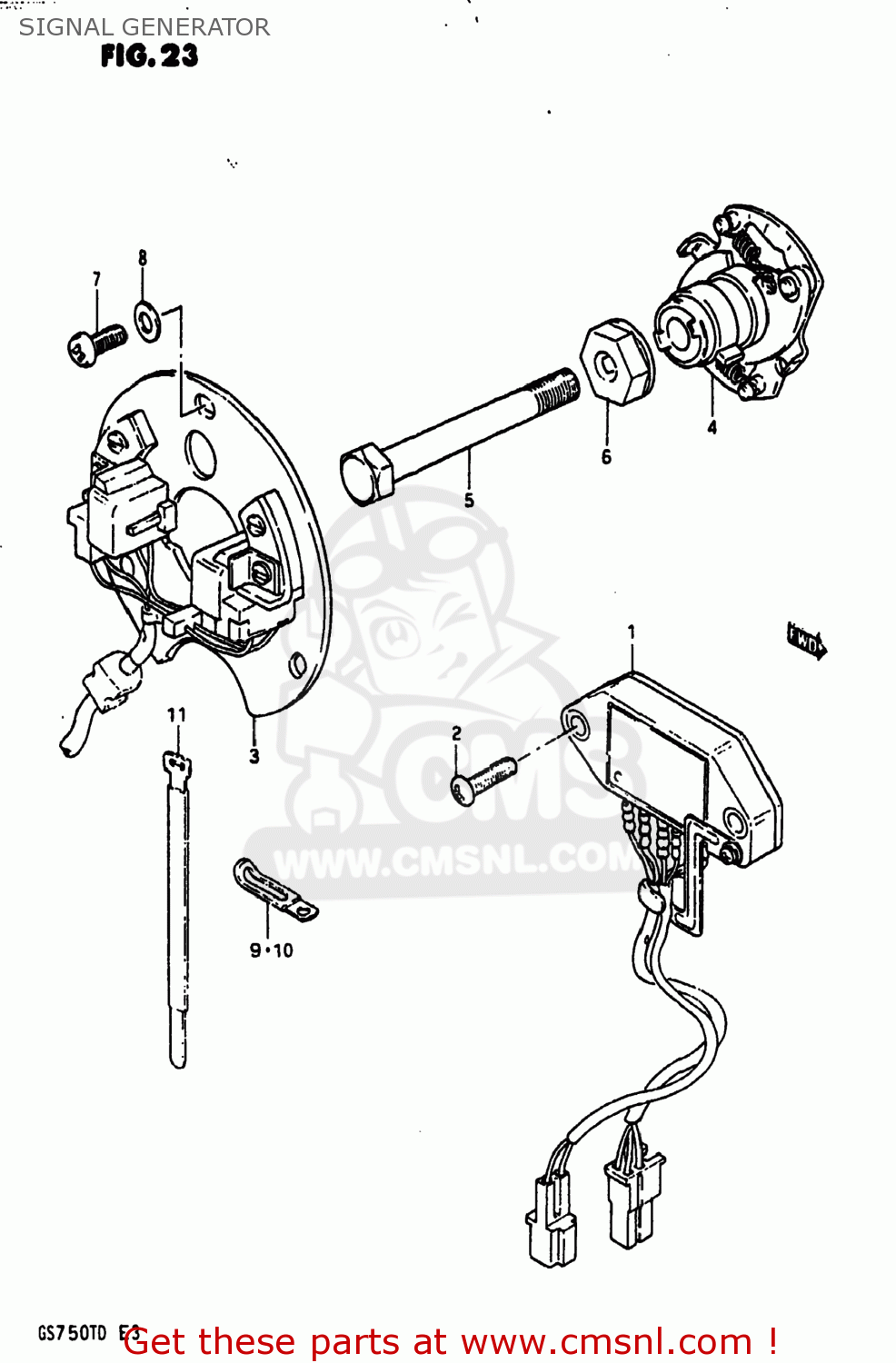

Signal generator diagram GS750T 1982 (Z) USA (E03)

SIGNAL GENERATOR GS750T 1982 (Z) USA (E03)

SIGNAL GENERATOR GS750T 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290045411
ref: 1
32900-45120

IGNITER UNIT

€ 492.50

2

0211206258
ref: 2
02112-06257

SCREW

€ 2.00

3

3311045110
ref: 3
33110-45410

SIGNAL GENERATOR ASSEMBLY

€ 296.50

4

3312045420
ref: 4

GOVERNOR ASSEMBLY

€ 155.50

5

0110708658
ref: 5
01500-0865B

BOLT

€ 3.00

6

3346547000
ref: 6

WASHER

€ 19.00

7

0912505024
ref: 7

SCREW(5X12)

€ 2.00

8

0916005027
ref: 8
08322-01057

WASHER

€ 2.50

9

0940406401
ref: 9
09404-06432

CLAMP L:35

€ 2.50

10

0940408401
ref: 10
09404-08420

CLAMP

€ 3.50

11

0940718301
ref: 11

CLAMP

€ 6.00
