FRONT WHEEL (MODEL Z)
GS750T 1982 (Z) USA (E03)

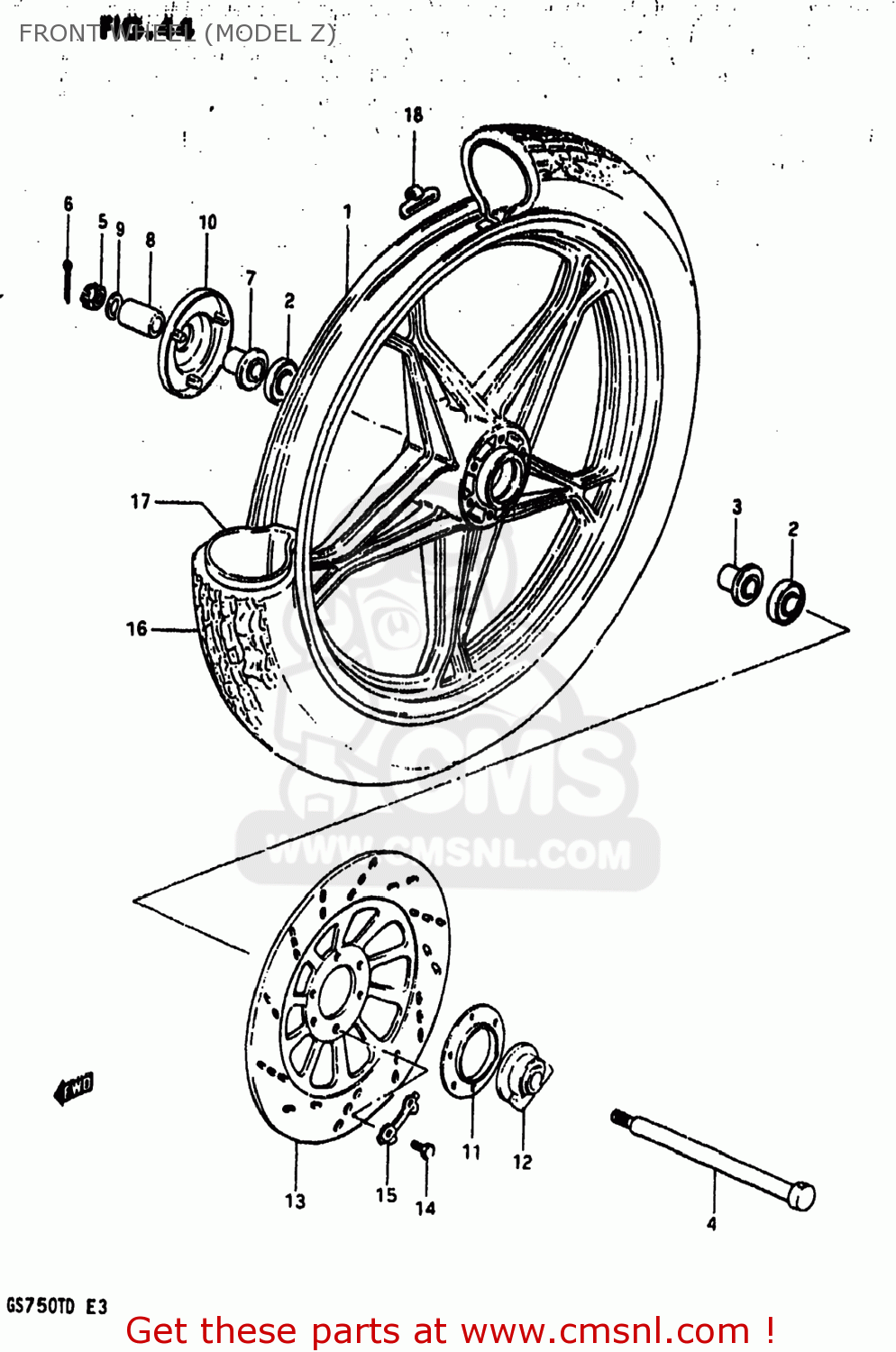

Front wheel (model z) diagram GS750T 1982 (Z) USA (E03)
FRONT WHEEL (MODEL Z) GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411145300291
ref: 1
CASTING WHEEL,FRONT 1.85
€ 518.00
2
0812363027
ref: 2
BEARING
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
€ 13.00
4
5471133002
ref: 4
54711-3300V
AXLE,FRONT
€ 41.00
5
0831431128
ref: 5
08314-3112A
NUT 12MM
€ 2.00
6
0411130308
ref: 6
04111-3030A
COTTER PIN
€ 1.50
7
5474018402
ref: 7
SPACER,FR AXLE,R
€ 18.50
8
0918015034
ref: 8
SPACER(15X22X30)
€ 7.00
9
0832221128
ref: 9
08322-01127
WASHER
€ 2.00
10
5487145000
ref: 10
COVER,FR HUB,R
€ 6.00
11
5487145010
ref: 11
DUST SEAL,SPEEDOMETER GEAR BOX
€ 21.00
12
5460018401
ref: 12
54600-18402
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 90.50
13
5922134550
ref: 13
DISC,BRAKE
€ 234.50
14
0910008140
ref: 14
BOLT(8X25)
€ 2.00
15
0916908016
ref: 15
WASHER
€ 3.50
16-1
5510045910
ref: 16-1
TIRE,FRONT
€ 64.00
16-2
5510045950
ref: 16-2
TIRE,FRONT
€ 50.00
17
5520015010
ref: 17
55200-44610
TUBE,INNER
€ 41.00
18-1
5541145100
ref: 18-1
55412-17G00
BALANCER,WHEEL
€ 7.00
18-2
5541245100
ref: 18-2
BALANCER,WHEEL
€ 4.00
18-3
5541345100
ref: 18-3
55411-00A00-10V
BALANCER,WHEEL
€ 6.50
