CAM SHAFT - VALVE
GS750T 1982 (Z) USA (E03)

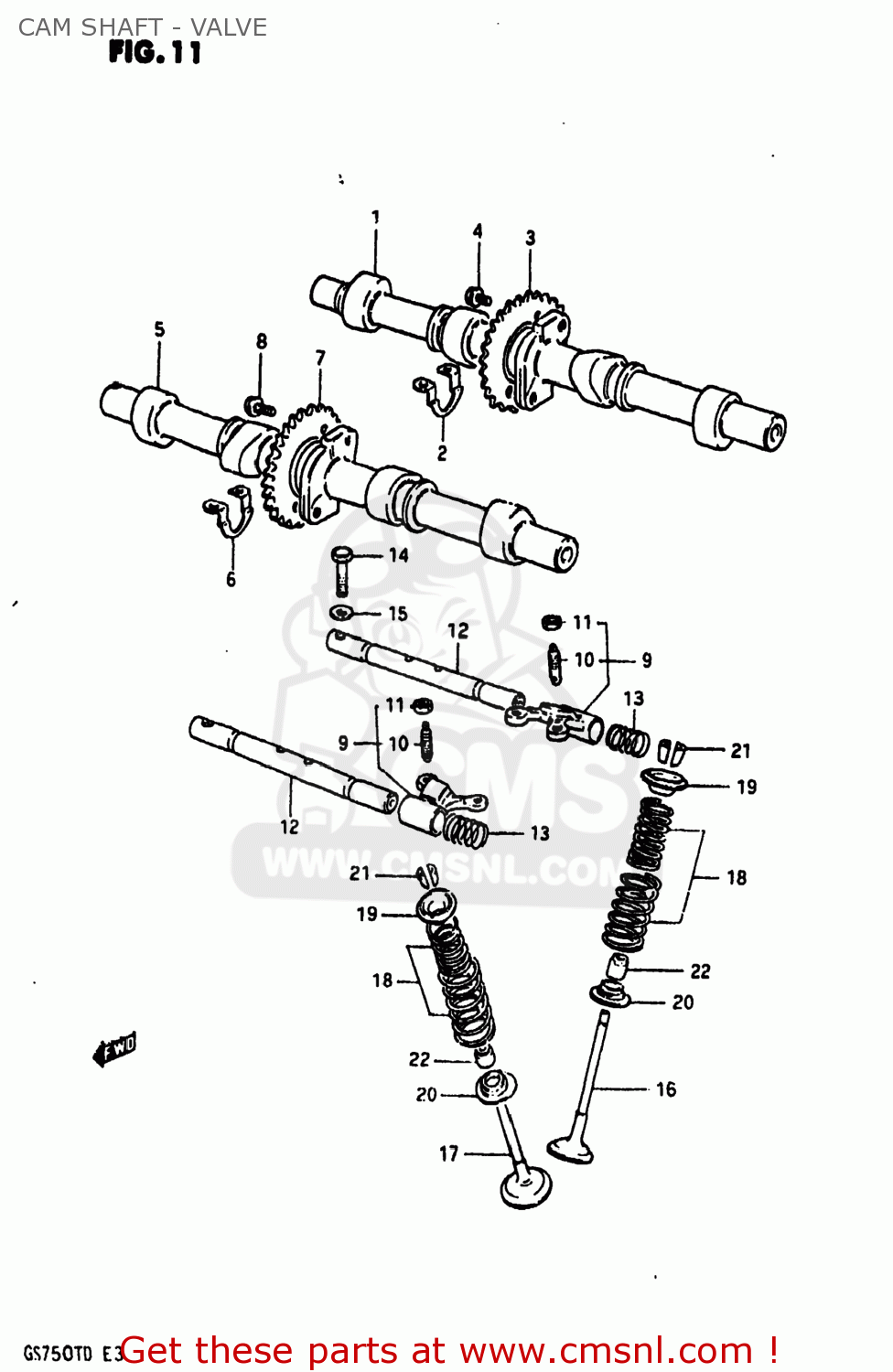

Cam shaft - valve diagram GS750T 1982 (Z) USA (E03)
CAM SHAFT - VALVE GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1270045810
ref: 1
CAMSHAFT SET,INTAKE
€ 255.50
2-1
1271245070
ref: 2-1
SHIM,CAMSHAFT
€ 11.50
2-2
1271245071
ref: 2-2
SHIM
€ 7.50
2-3
1271245072
ref: 2-3
SHIM,CAMSHAFT
€ 9.50
3
1274145401
ref: 3
SPROCKET,INTAKE CAMSHAFT
€ 35.00
4
0910307001
ref: 4
BOLT(7X11)
€ 2.00
5
1270045820
ref: 5
CAMSHAFT SET,EXHAUST
€ 372.50
6-1
1271245070
ref: 6-1
SHIM,CAMSHAFT
€ 11.50
6-2
1271245071
ref: 6-2
SHIM
€ 7.50
6-3
1271245072
ref: 6-3
SHIM,CAMSHAFT
€ 9.50
7
1275145401
ref: 7
SPROCKET,EXHAUST CAMSHAFT
€ 31.50
8
0910307001
ref: 8
BOLT(7X11)
€ 2.00
9
1284045410
ref: 9
12840-45401
ARM,VALVE ROCKER
€ 78.50
10
1284249210
ref: 10
12842-49201
SCREW,TAPPET ADJUSTING
€ 5.50
11
1284349210
ref: 11
12843-27A00
NUT,ADJUSTING
€ 3.00
12
1286049200
ref: 12
12860-31300
SHAFT,VALVE ROCKER
€ 33.50
13
0944013014
ref: 13
SPRING
€ 2.50
14
0110706308
ref: 14
01500-06307
BOLT
€ 2.50
15
0832221068
ref: 15
08322-01067
WASHER
€ 2.00
16-1
1291145410
ref: 16-1
VALVE,INTAKE
€ 21.50
16-2
1291145420
ref: 16-2
12911-45410
VALVE,INTAKE
€ 21.50
17-1
1291245410
ref: 17-1
VALVE,EXHAUST
€ 32.00
17-2
1291245420
ref: 17-2
12912-45410
VALVE,EXHAUST
€ 32.00
18
1292049210
ref: 18
SPRING SET,VALVE
€ 16.00
19
1293149200
ref: 19
12931-49201
RETAINER,VALVE SPRING
€ 5.50
20
1293349200
ref: 20
12933-49201
SEAT,VALVE SPRING
€ 4.50
21
1293249200
ref: 21
COTTER VALVE
€ 2.50
22
0928905003
ref: 22
09289-05015
OIL SEAL
€ 6.50
