CRANKCASE COVER
GS750T 1982 (Z) USA (E03)

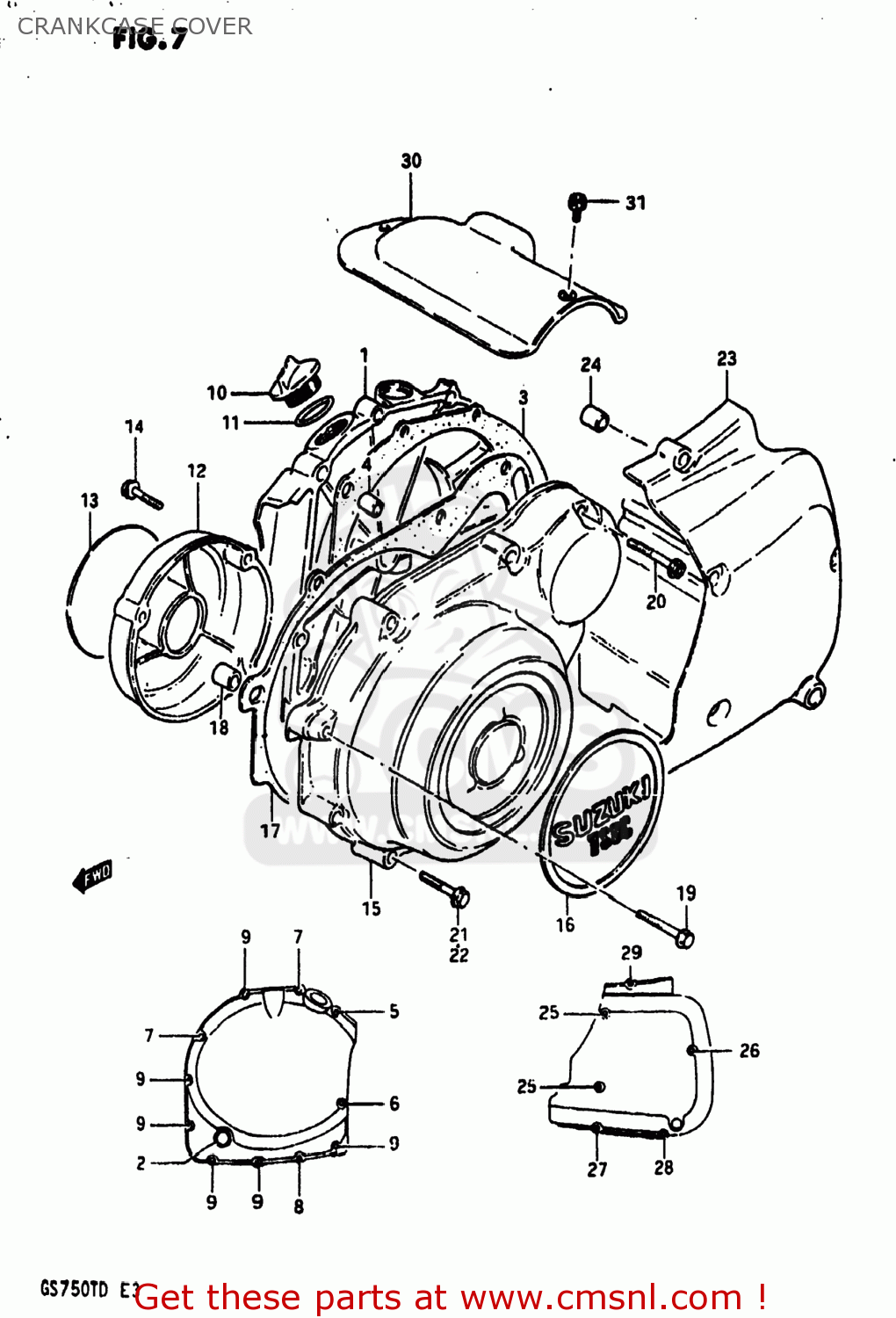

Crankcase cover diagram GS750T 1982 (Z) USA (E03)
CRANKCASE COVER GS750T 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134045401
ref: 1
COVER,CLUTCH
€ 292.00
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148245400
ref: 3
11482-45400-H17
GASKET,CLUTCH COVER (MCA)
€ 20.00
4
0421109129
ref: 4
PIN
€ 2.00
5
0154706408
ref: 5
01547-06407
BOLT (6X40)
€ 2.50
6
0154706358
ref: 6
01547-06357
BOLT (6X35)
€ 2.50
7
0154706308
ref: 7
01547-06307
BOLT (6X30)
€ 2.50
8
0154706258
ref: 8
01547-06257
BOLT
€ 2.50
9
0154706208
ref: 9
01547-06207
BOLT (6X20)
€ 2.50
10
0925930001
ref: 10
09200-30810
CAP
€ 8.50
11
0928032005
ref: 11
O RING(D:2.2,ID:32)
€ 2.00
12
1138149202
ref: 12
COVER,CONTACT BREAKER
€ 49.00
13
6823549500
ref: 13
EMBLEM
€ 21.50
14
0154705308
ref: 14
01547-05307
BOLT (5X30)
€ 2.00
15
1135145401
ref: 15
COVER,MAGNETO
€ 293.00
16
6823349500
ref: 16
EMBLEM,MAGNETO COVER
€ 23.50
17
1148349200
ref: 17
11483-49210
GASKET,MAGNETO COVER (MCA)
€ 13.00
18
0920613001
ref: 18
04211-13189
PIN
€ 2.50
19
0154706458
ref: 19
01547-06457
BOLT
€ 2.50
20
0154706408
ref: 20
01547-06407
BOLT (6X40)
€ 2.50
21
0154706358
ref: 21
01547-06357
BOLT (6X35)
€ 2.50
22
0154706308
ref: 22
01547-06307
BOLT (6X30)
€ 2.50
23
1136049201
ref: 23
COVER,ENGINE SPROCKET
€ 127.00
24
0421109129
ref: 24
PIN
€ 2.00
25
0154706958
ref: 25
01547-06957
BOLT 6X95
€ 4.00
26
0154706858
ref: 26
01547-06857
BOLT (6X85)
€ 2.50
27
0154706708
ref: 27
01547-06707
BOLT (6X70)
€ 2.50
28
0154706558
ref: 28
01547-06557
BOLT (6X55)
€ 2.50
29
0154706308
ref: 29
01547-06307
BOLT (6X30)
€ 2.50
30-1
1138249002
ref: 30-1
COVER,STARTER MOTOR
€ 43.00
30-2
1138245410
ref: 30-2
COVER,STARTER MOTOR
€ 35.00
31-1
0154705088
ref: 31-1
01547-05087
BOLT
€ 2.00
31-2
0154705085
ref: 31-2
01547-0508B
BOLT (5X8)
€ 2.50
