AIR CLEANER (MODEL X)

GS850GL 1980 (T) USA (E03)

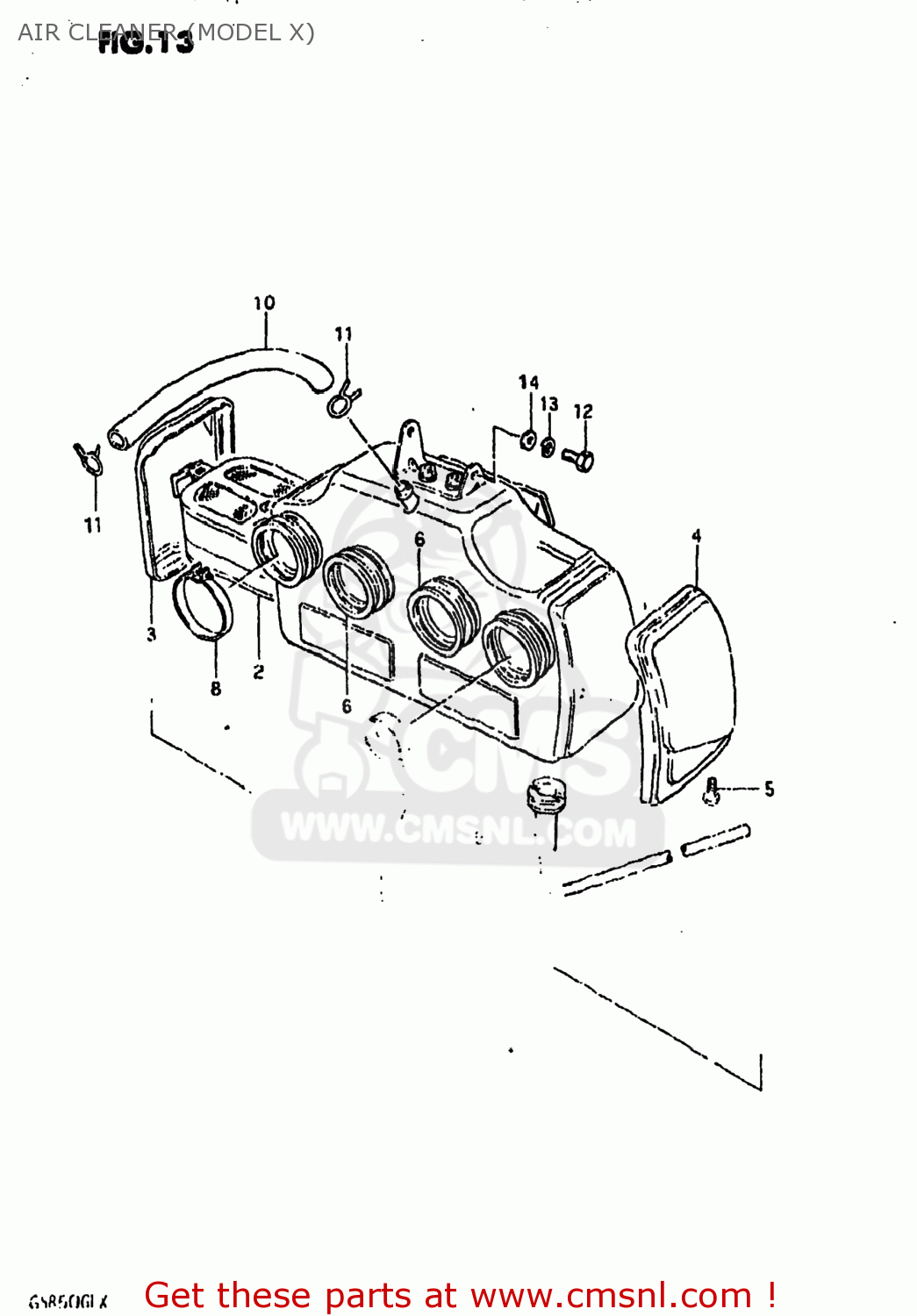

Air cleaner (model x) diagram GS850GL 1980 (T) USA (E03)

AIR CLEANER (MODEL X) GS850GL 1980 (T) USA (E03)

AIR CLEANER (MODEL X) GS850GL 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370049070
ref: 1
13700-49072

CLEANER ASSEMBLY,AIR

€ 132.00

2

1378049070
ref: 2

FILTER ASSY

€ 90.00

3

1374049070
ref: 3
13740-45100

CAP,AIR CLEANER

€ 44.50

4

1375049070
ref: 4
13750-45100

CAP,AIR CLEANER,LEFT

€ 43.50

5

0214205126
ref: 5
02142-0512A

SCREW

€ 1.50

6

1388149070
ref: 6

TUBE,OUTLET

€ 15.50

7

1388545450
ref: 7

RING

€ 8.00

8

0940260206
ref: 8
09402-60208

CLAMP

€ 4.50

9

1387000130
ref: 9
13870-11458

DRAIN TUBE

€ 13.50

10

1385100250
ref: 10
09352-11153-600

TUBE,BREATHER

€ 13.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

0110706128
ref: 12
01500-06127

BOLT

€ 2.00

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

0832211068
ref: 14
08322-0106B

WASHER 6MM

€ 2.00
