FUEL TANK (MODEL T)
GS850GL 1980 (T) USA (E03)

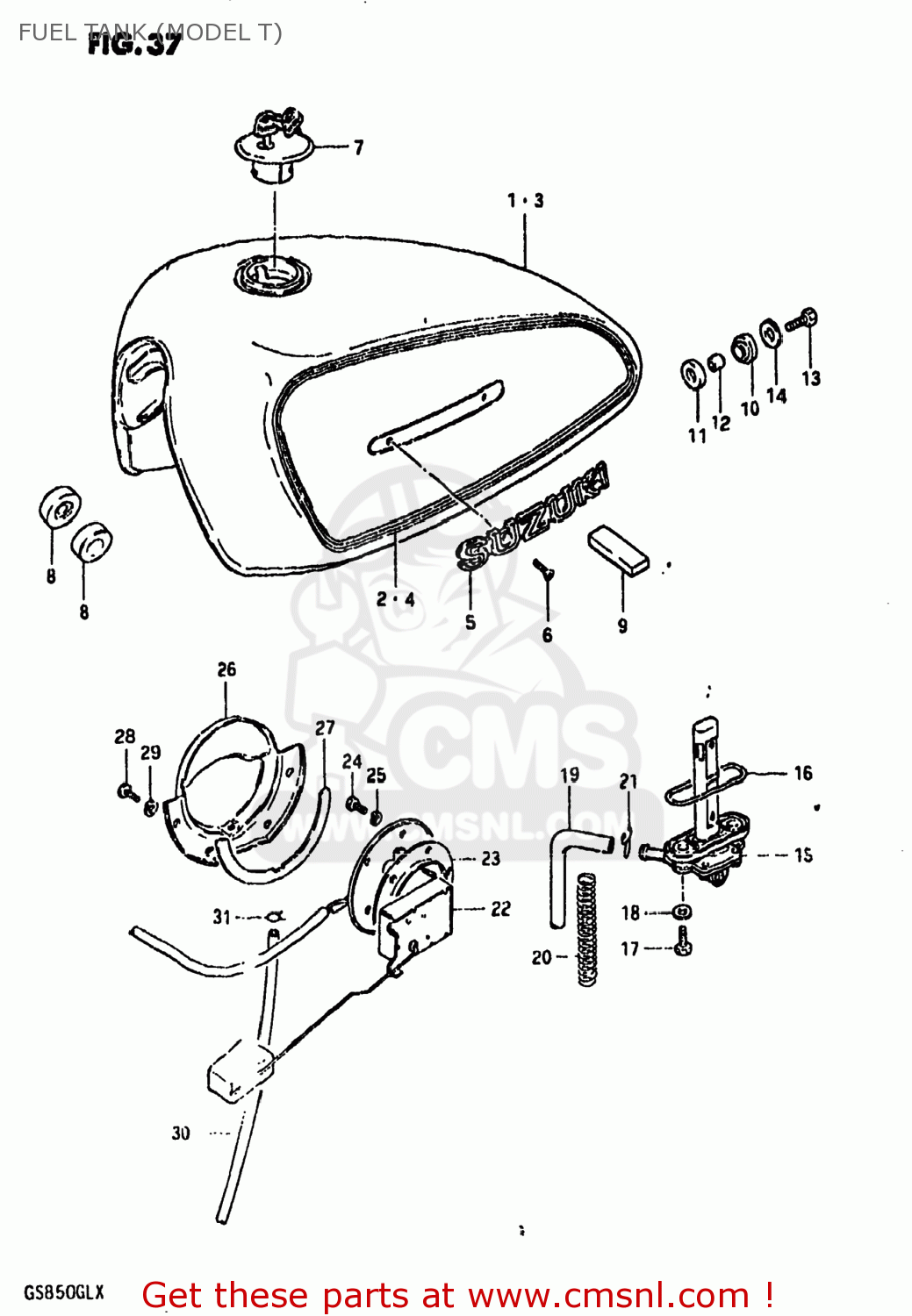

Fuel tank (model t) diagram GS850GL 1980 (T) USA (E03)
FUEL TANK (MODEL T) GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
441004720010U
ref: 1
44110-47200-13L
TANK ASSEMBLY,FUEL
€ 681.50
2
681104720066Y
ref: 2
TAPE SET,FUEL TANK
€ 50.00
3
441004720008E
ref: 3
44110-47200-13L
TANK ASSEMBLY,FUEL
€ 681.50
4
681104720067M
ref: 4
TAPE SET,FUEL TANK
€ 22.50
5
6811145200
ref: 5
68111-45010
EMBLEM
€ 26.00
6
0213203065
ref: 6
02122-0306B
SCREW 3X6
€ 2.00
7
4420030702
ref: 7
44200-30830
CAP SET,FUEL TANK
€ 112.00
8
0932910007
ref: 8
CUSHION
€ 3.00
9
0932901005
ref: 9
CUSHION
€ 11.50
10
0932012010
ref: 10
09320-12013
CUSHION
€ 3.00
11
0932012023
ref: 11
09320-12017
CUSHION
€ 2.50
12
0918008067
ref: 12
SPACER(8.5X12X19)
€ 2.50
13
0110708308
ref: 13
01500-08307
BOLT (8X30)
€ 2.50
14
0916008002
ref: 14
09160-08135
WASHER (8.5X29X1.6)
€ 2.00
15
4430047270
ref: 15
COCK ASSY,FUEL
€ 97.50
16
4434847270
ref: 16
GASKET (NAS)
€ 7.50
17
0912806024
ref: 17
09103-06212
SCREW (6X25)
€ 2.50
18
0916806010
ref: 18
09168-06023
GASKET
€ 2.00
19
0934307026
ref: 19
09352-70103-00B
HOSE
€ 17.50
20
0944013017
ref: 20
09440-13043
SPRING
€ 14.50
21
0940110403
ref: 21
CLIP
€ 7.00
22
3481045300
ref: 22
GAUGE ASSEMBLY,FUEL LEVEL
€ 66.50
23
3482545100
ref: 23
GASKET,FUEL LEVEL GAUGE (NAS)
€ 7.00
24
0110405108
ref: 24
01500-0510B
BOLT
€ 1.50
25
0832121058
ref: 25
08321-0105A
LOCK WASHER
€ 2.00
26
3488549002
ref: 26
34885-49005
PLATE,FUEL DRAIN
€ 21.00
27
3488849000
ref: 27
GASKET,FUEL DRAIN PLATE (NAS)
€ 15.00
28
0211205088
ref: 28
02112-05087
SCREW
€ 2.00
29
0832121058
ref: 29
08321-0105A
LOCK WASHER
€ 2.00
30
0934305165
ref: 30
09352-50823-00B
HOSE,FUEL
€ 13.00
31
0940108402
ref: 31
CLIP
€ 1.50
