FRONT FORK (MODEL T)
GS850GL 1980 (T) USA (E03)

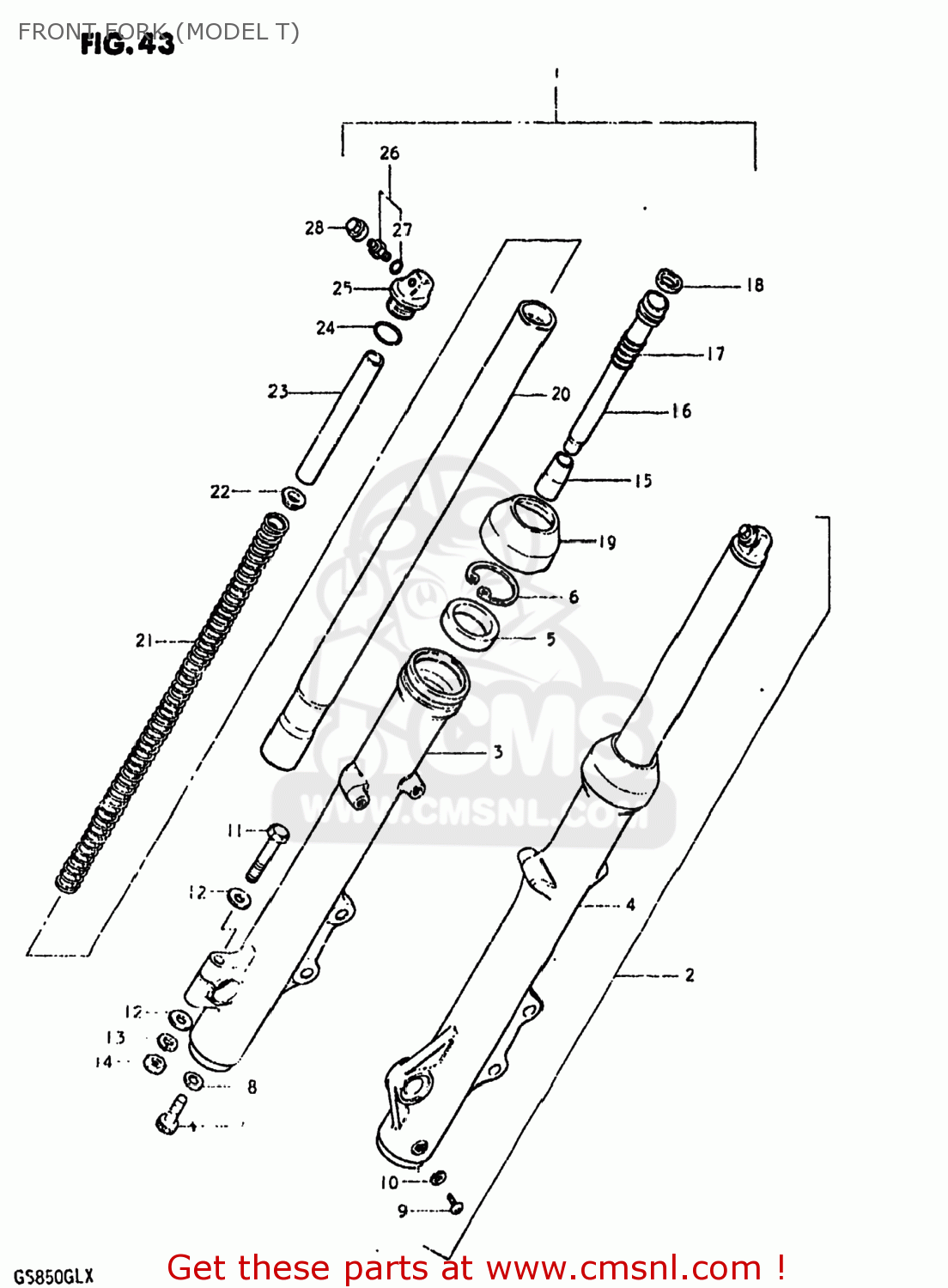

Front fork (model t) diagram GS850GL 1980 (T) USA (E03)
FRONT FORK (MODEL T) GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110345300
ref: 1
DAMPER ASSEMBLY,RIGHT
€ 209.00
2
5110445300
ref: 2
51100-45810
DAMPER ASSEMBLY,LEFT
€ 238.00
3
5113045300
ref: 3
51130-49130
TUBE,FORK,OUTER,RIGHT
€ 130.00
4
5114045300
ref: 4
51140-49130
TUBE,FORK,LEFT,OUTER
€ 193.50
5
5115349000
ref: 5
51153-08C20
OIL SEAL,FRONT FORK
€ 16.50
6
5115640301
ref: 6
RING,STOPPER
€ 4.50
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
€ 2.50
9
0211204088
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
0110708508
ref: 11
01500-08507
BOLT 8X50
€ 3.00
12
0832221088
ref: 12
08322-01087
WASHER
€ 2.00
13
0832131088
ref: 13
08321-01087
WASHER,LOCK,8.
€ 2.00
14
0831012088
ref: 14
08310-00087
NUT
€ 2.00
15
5119549071
ref: 15
PIECE,OIL LOCK
€ 12.00
16
5114649000
ref: 16
CYLINDER,FRONT FORK
€ 78.00
17
5117749000
ref: 17
SPRING,REBOUND
€ 7.50
18
5119649000
ref: 18
RING,PISTON
€ 9.00
19
5117349002
ref: 19
SEAL,DUST
€ 13.00
20
5111049100
ref: 20
TUBE,FORK,INNER
€ 228.00
21
5117145300
ref: 21
SPRING
€ 15.00
22
5117238010
ref: 22
GUIDE,FRONT FORK SPRING C
€ 9.50
23
5117645300
ref: 23
SPACER,SPRING
€ 3.00
24
5111716310
ref: 24
O RING
€ 4.50
25
5135141211
ref: 25
CAP
€ 41.00
26
5129349001
ref: 26
VALVE
€ 18.00
27
5111741211
ref: 27
O RING
€ 6.50
28
5129449000
ref: 28
CAP,VALVE
€ 22.50
