CYLINDER
GS850GL 1980 (T) USA (E03)

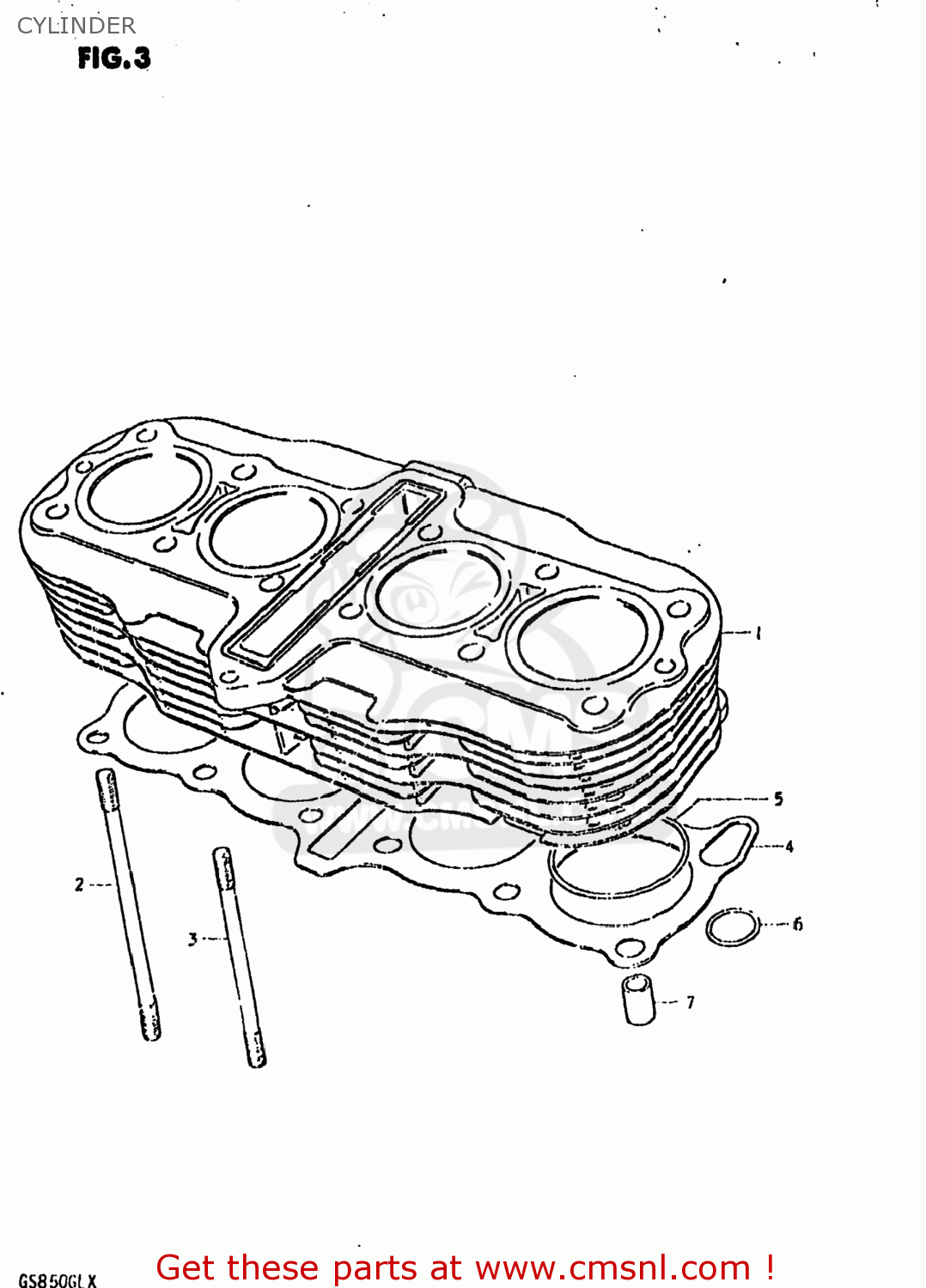

Cylinder diagram GS850GL 1980 (T) USA (E03)
CYLINDER GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1121045100
ref: 1-1
CYLINDER
€ 0.00
1-2
1121045110
ref: 1-2
CYLINDER
€ 0.00
2
0910810027
ref: 2
BOLT,STUD
€ 12.00
3
0910810028
ref: 3
09108-10112
STUD
€ 9.00
4-1
1124145040
ref: 4-1
11241-45110-H17
GASKET,CYLINDER (MCA)
€ 12.50
4-2
1124145110
ref: 4-2
11241-45110-H17
GASKET,CYLINDER (MCA)
€ 12.50
5
0928070001
ref: 5
O RING(D:2,ID:70)
€ 7.50
6
0928021004
ref: 6
O RING(D:3.05)
€ 4.00
7
0920613001
ref: 7
04211-13189
PIN
€ 2.50
