OIL PUMP - OIL FILTER
GS850GL 1980 (T) USA (E03)

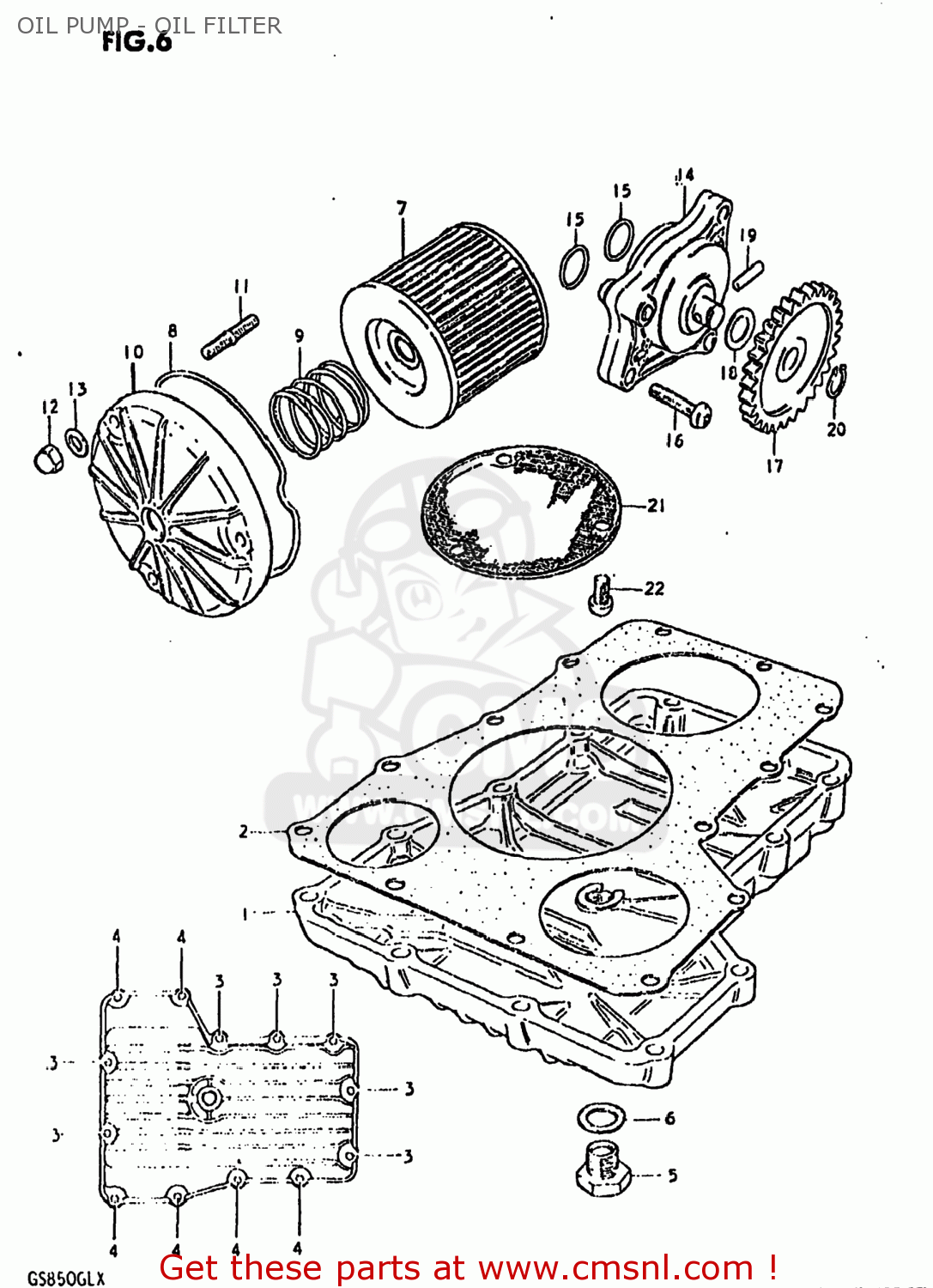

Oil pump - oil filter diagram GS850GL 1980 (T) USA (E03)
OIL PUMP - OIL FILTER GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1151145300
ref: 1
PAN,OIL
€ 72.50
2
1148945001
ref: 2
11489-45001-H17
GASKET,OIL PAN (MCA)
€ 15.50
3
0151706308
ref: 3
01550-06307
BOLT
€ 2.00
4
0151706258
ref: 4
01550-06257
BOLT
€ 2.50
5
0924714001
ref: 5
09247-14002
PLUG
€ 5.00
6
0916814004
ref: 6
GASKET(14X19.2X2) (NAS)
€ 2.50
7
1651045040
ref: 7
FILTER ASSY,ENGINE OIL
€ 7.50
8
1651845000
ref: 8
O RING,OIL FILTER CHAMBER CAP
€ 7.50
9
0944032004
ref: 9
SPRING
€ 13.50
10-1
1651245100
ref: 10-1
16512-45101
CAP,OIL FILTER
€ 37.50
10-2
1651245101
ref: 10-2
CAP,ENGINE OIL FILTER
€ 37.50
11
0142106208
ref: 11
01421-0620A
STUD 6X20
€ 2.50
12
0831311068
ref: 12
08313-10067
NUT
€ 2.00
13
0832221068
ref: 13
08322-01067
WASHER
€ 2.00
14-1
1640049011
ref: 14-1
16400-49020
PUMP ASSEMBLY,OIL
€ 134.00
14-2
1640049020
ref: 14-2
PUMP ASSEMBLY,ENGINE OIL
€ 134.00
15
0928013004
ref: 15
O RING(D:1.9,ID:13)
€ 2.50
16
0211206258
ref: 16
02112-06257
SCREW
€ 2.00
17
1633149990
ref: 17
16331-49000
GEAR,OIL PUMP DRIVEN
€ 84.50
18
0822110185
ref: 18
SHIM
€ 2.00
19
0926104009
ref: 19
PIN(4X15.8)
€ 1.50
20
0833131109
ref: 20
CIRCLIP
€ 2.00
21-1
1652045000
ref: 21-1
16520-45010
STRAINER,ENGINE OIL
€ 12.00
21-2
1652045010
ref: 21-2
STRAINER,ENGINE OIL
€ 12.00
22-1
0211206128
ref: 22-1
02112-06127
SCREW 6X12
€ 2.00
22-2
0211206128
ref: 22-2
02112-06127
SCREW 6X12
€ 2.00
