MUFFLER (MODEL T)
GS850GL 1980 (T) USA (E03)

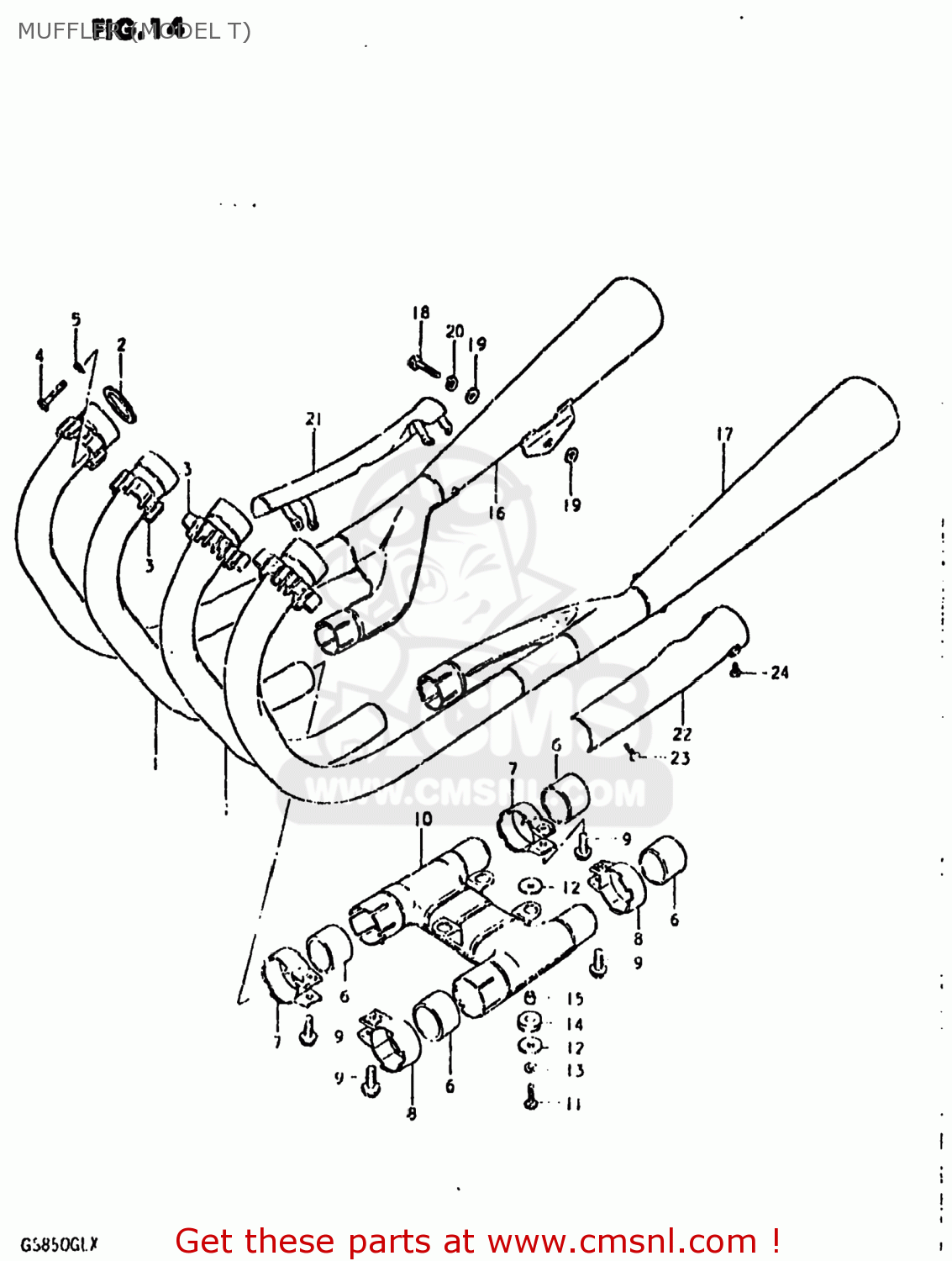

Muffler (model t) diagram GS850GL 1980 (T) USA (E03)
MUFFLER (MODEL T) GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1417045200
ref: 1
14170-45201
PIPE,CENTER EXHAUST
€ 110.00
2
1418111010
ref: 2
14181-01D00
GASKET,EXHAUST PIPE (NAS)
€ 8.00
3
1418244000
ref: 3
CLAMP,EXHAUST PIPE
€ 108.00
4
0110708358
ref: 4
01500-0835B
BOLT
€ 3.50
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
1477144011
ref: 6
14771-44030
CONNECTOR,MUFFLER
€ 35.00
7
1445944000
ref: 7
CLAMP,MUFFLER CONNECTOR,R
€ 14.00
8
1445944000
ref: 8
CLAMP,MUFFLER CONNECTOR,R
€ 14.00
9
0151708258
ref: 9
01550-08257
BOLT
€ 2.50
10
1421045201
ref: 10
BODY,PREMUFFLER
€ 110.00
11
0130406308
ref: 11
01500-06307
BOLT
€ 2.50
12
0916008004
ref: 12
09160-08134
WASHER
€ 2.50
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
0932010014
ref: 14
CUSHION
€ 4.00
15
0918006082
ref: 15
SPACER(6.5X10.5X6.5)
€ 2.50
16
1431045310
ref: 16
14305-45310-H01
BODY,MUFFLER
€ 546.00
17
1434045310
ref: 17
14306-45310-H01
BODY,MUFFLER
€ 173.50
18
0110710308
ref: 18
01500-1030A
BOLT 10X30
€ 3.00
19
0832221108
ref: 19
08322-01107
WASHER
€ 2.50
20
0832121108
ref: 20
08321-01107
LOCK WASHER
€ 2.00
21
1478045201
ref: 21
14780-45202
COVER,MUFFLER
€ 33.00
22
1479045200
ref: 22
14790-45201
COVER,MUFFLER
€ 29.50
23
0211205168
ref: 23
02112-05167
SCREW
€ 2.50
24
0211205068
ref: 24
09125-05122
SCREW
€ 4.00
