HEADLAMP HOUSING - FRONT FENDER (MODEL X)

GS850GL 1980 (T) USA (E03)

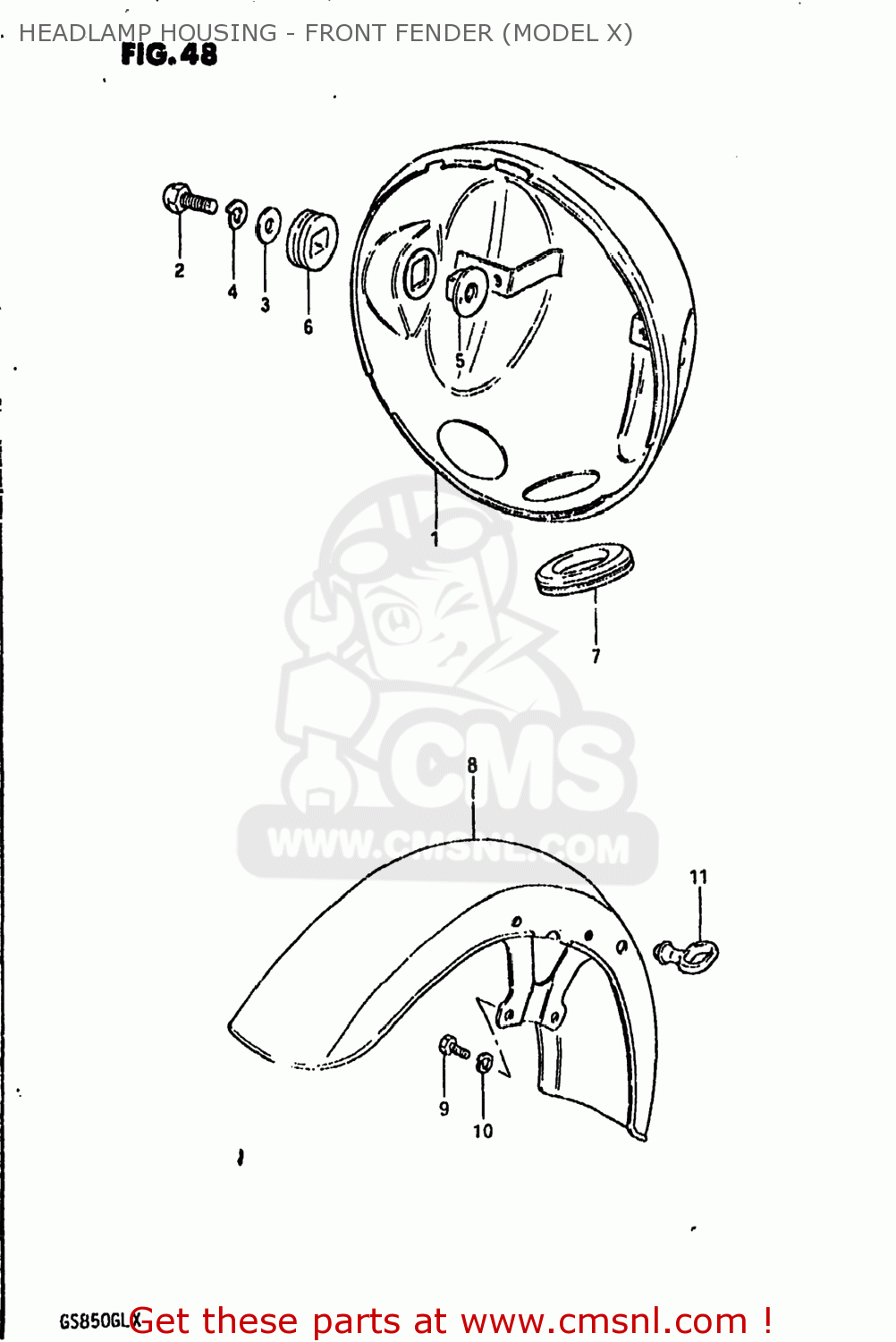

Headlamp housing - front fender (model x) diagram GS850GL 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

5181045300
ref: 1

HOUSING,HEADLAMP

€ 46.50

0120408207
ref: 2

BOLT

€ 3.00

0832211088
ref: 3
08322-01087

WASHER

€ 2.00

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5182136200
ref: 5

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 6

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 7

GROMMET,HEADLAMP HOUSING

€ 4.00

5311045310
ref: 8
53110-45311

FENDER,FRONT

€ 353.50

0110708168
ref: 9
01500-0816B

BOLT

€ 2.00

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

5862121203
ref: 11
58621-21204

GUIDE,CABLE

€ 7.50
