CRANKSHAFT
GS850GL 1980 (T) USA (E03)

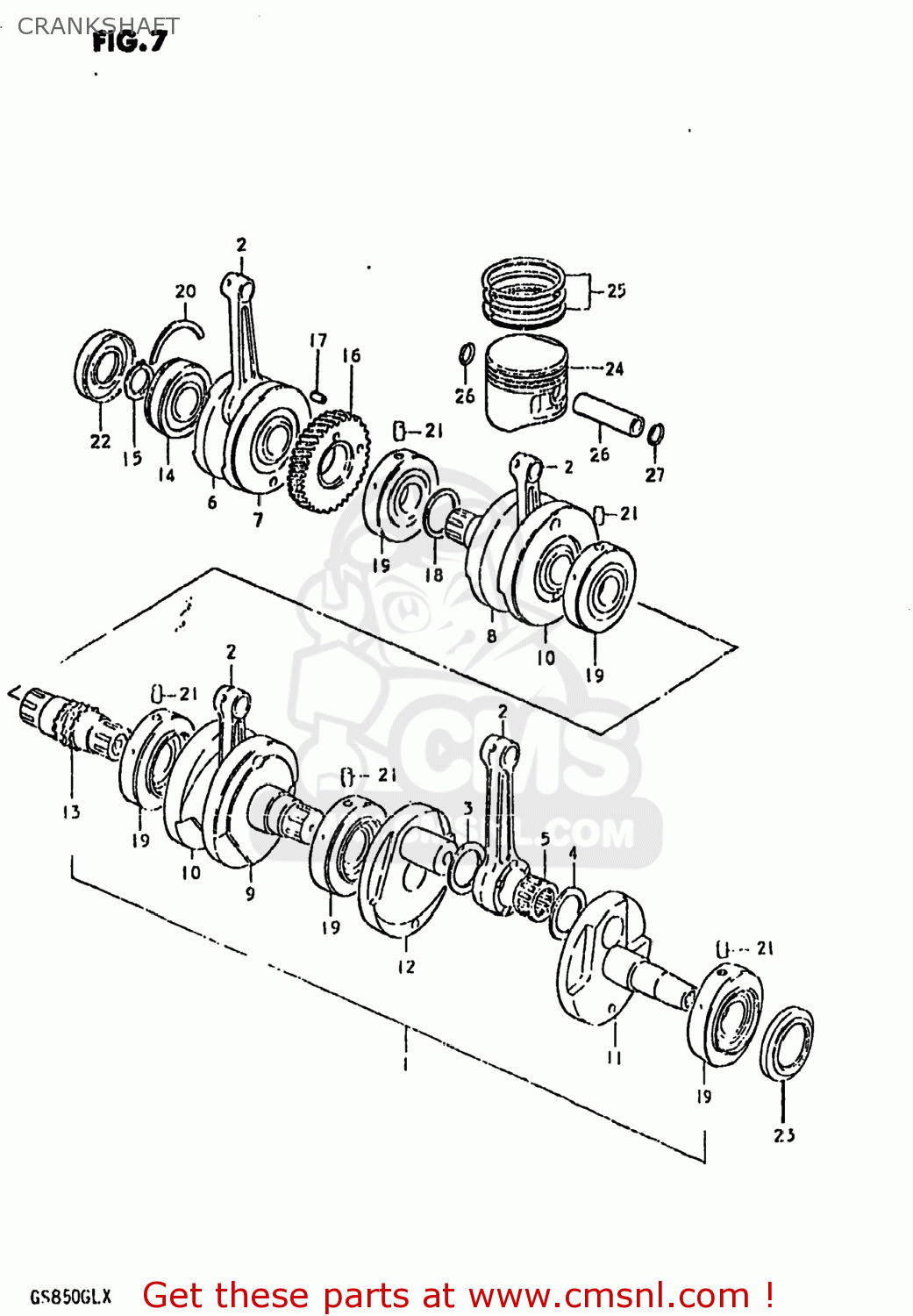

Crankshaft diagram GS850GL 1980 (T) USA (E03)
CRANKSHAFT GS850GL 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220045100
ref: 1
12200-45104
CRANKSHAFT ASSEMBLY
€ 1,895.00
2
1216145100
ref: 2
12161-45101
CONNECTING ROD
€ 94.50
3
0916029008
ref: 3
WASHER (29X48X2)
€ 6.00
4
0916029009
ref: 4
WASHER (29X48X1)
€ 5.50
5
0926329002
ref: 5
BEARING(29X39X20)
€ 28.50
6
1222045100
ref: 6
CRANKSHAFT
€ 0.00
7
1223145100
ref: 7
WEB,CRANK,RIGHT
€ 135.50
8
1224145100
ref: 8
CRANKSHAFT
€ 0.00
9
1227145100
ref: 9
CRANKSHAFT, MIDDLE LH
€ 0.00
10
1225045100
ref: 10
WEB,CRANK,MIDDLE
€ 149.00
11
1226145100
ref: 11
12261-45101
CRANKSHAFT,LEFT
€ 132.50
12
1229045100
ref: 12
WEB,CRANK,LEFT
€ 114.50
13
1228145100
ref: 13
SHAFT,TIMING CHAIN DRIVE
€ 81.00
14
0926230033
ref: 14
BEARING(30X72X19)
€ 47.00
15
0833111308
ref: 15
08331-3130A
CIRCLIP,30MM
€ 3.00
16
2111145100
ref: 16
GEAR,PRIMARY DRIVE
€ 47.00
17
0422108129
ref: 17
PIN
€ 2.00
18
0821128403
ref: 18
WASHER
€ 0.00
19
0926432002
ref: 19
09264-32009
BEARING
€ 138.00
20
0939072004
ref: 20
C RING
€ 3.00
21
0422107129
ref: 21
PIN
€ 1.50
22
0928330021
ref: 22
SEAL,OIL(30X72X11)
€ 22.00
23
0928948001
ref: 23
09289-48002
OIL SEAL
€ 12.00
24-1
1211145110
ref: 24-1
PISTON
€ 77.00
24-2
1211145110050
ref: 24-2
12103-45830-050
PISTON
€ 111.50
24-3
1211145110100
ref: 24-3
PISTON (70.00MM)
€ 111.50
25-1
1214045120
ref: 25-1
12140-45121
RING SET,PISTON
€ 61.50
25-2
1214045120050
ref: 25-2
12140-45121-050
RING SET,PISTON (OS:0.5)
€ 37.50
25-3
1214049001
ref: 25-3
RING SET,PISTON
€ 73.50
26
1215129001
ref: 26
PIN,PISTON
€ 9.00
27
0938116002
ref: 27
09381-16001
CIRCLIP
€ 1.50
