CYLINDER HEAD COVER

GS850GL 1980 (T) USA (E03)

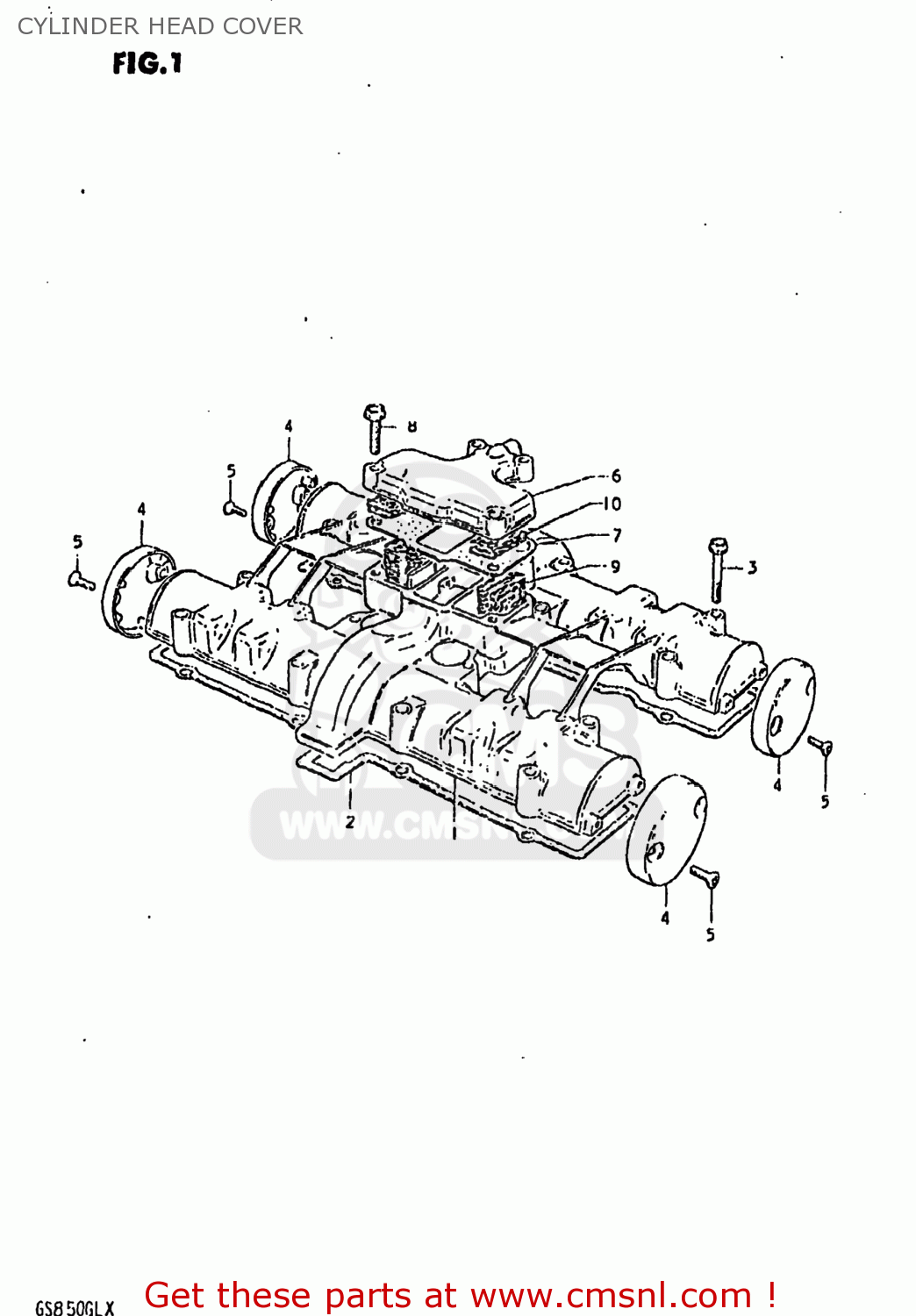

Cylinder head cover diagram GS850GL 1980 (T) USA (E03)

CYLINDER HEAD COVER GS850GL 1980 (T) USA (E03)

CYLINDER HEAD COVER GS850GL 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117145000
ref: 1

COVER,CYLINDER HEAD

€ 270.50

2

1117345002
ref: 2
11173-45004-H17

GASKET,CYLINDER HEAD COVER (MCA)

€ 227.50

3

0151706408
ref: 3
01550-06407

BOLT

€ 2.50

4-1

1117445000
ref: 4-1
11174-49000

CAP,CYLINDER HEAD COVER

€ 38.00

4-2

1117449000
ref: 4-2

CAP,CYLINDER HEAD COVER

€ 38.00

5

0213205127
ref: 5
02122-05127

SCREW 5X12

€ 2.50

6

1117645010
ref: 6
11176-45011

COVER,BREATHER

€ 32.50

7

1117745000
ref: 7
11177-45000-H17

GASKET (MCA)

€ 9.00

8

0151706258
ref: 8
01550-06257

BOLT

€ 2.50

9

1118645000
ref: 9
11186-45001

COVER,BREATHER

€ 5.50

10

1118745000
ref: 10
11187-45001

SEPARATOR,OIL BREATHER

€ 6.50
