STARTER CLUTCH

GS850GL 1980 (T) USA (E03)

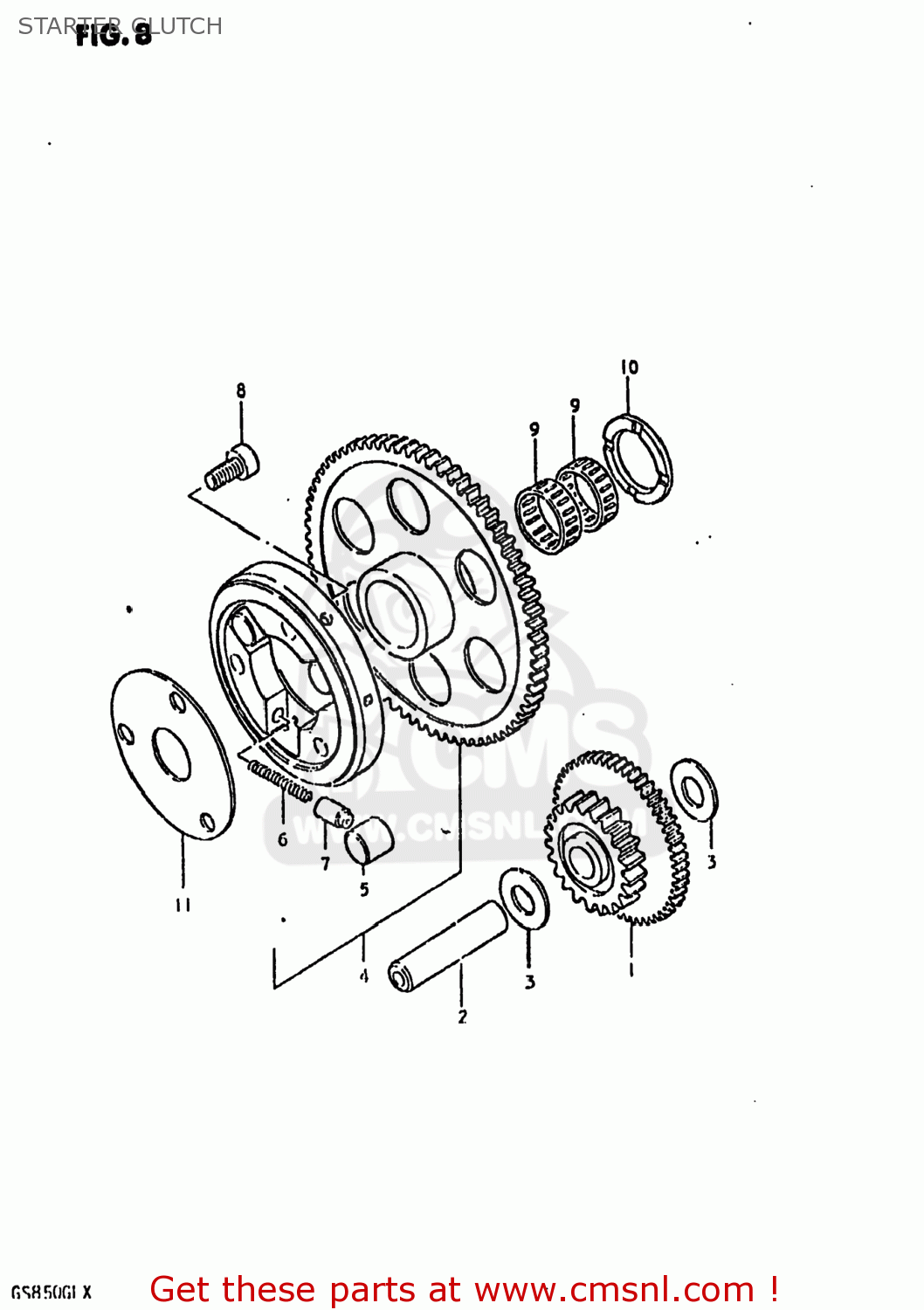

Starter clutch diagram GS850GL 1980 (T) USA (E03)

STARTER CLUTCH GS850GL 1980 (T) USA (E03)

STARTER CLUTCH GS850GL 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

1261145000
ref: 1-1

GEAR,STARTER IDLE

€ 65.00

1-2

1261145110
ref: 1-2

GEAR,STARTER IDLE

€ 46.00

2-1

0920613003
ref: 2-1

PIN(7.4X13X56)

€ 9.00

2-2

0920613009
ref: 2-2

PIN(7.4X13X61)

€ 11.00

3

0916013003
ref: 3

WASHER(13.3X25X0.85)

€ 2.50

4

1260045820
ref: 4
12600-45821

CLUTCH SET,STARTER

€ 216.50

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608006
ref: 8
07130-0816A

BOLT

€ 3.00

9

0926325020
ref: 9

BEARING(25X29X9.9)

€ 13.50

10

0916025019
ref: 10

WASHER(25X38X2.5)

€ 10.00

11

1264945000
ref: 11

SHIM,STARTER CLUTCH HUB

€ 7.00
