ref
part #
description
quantity

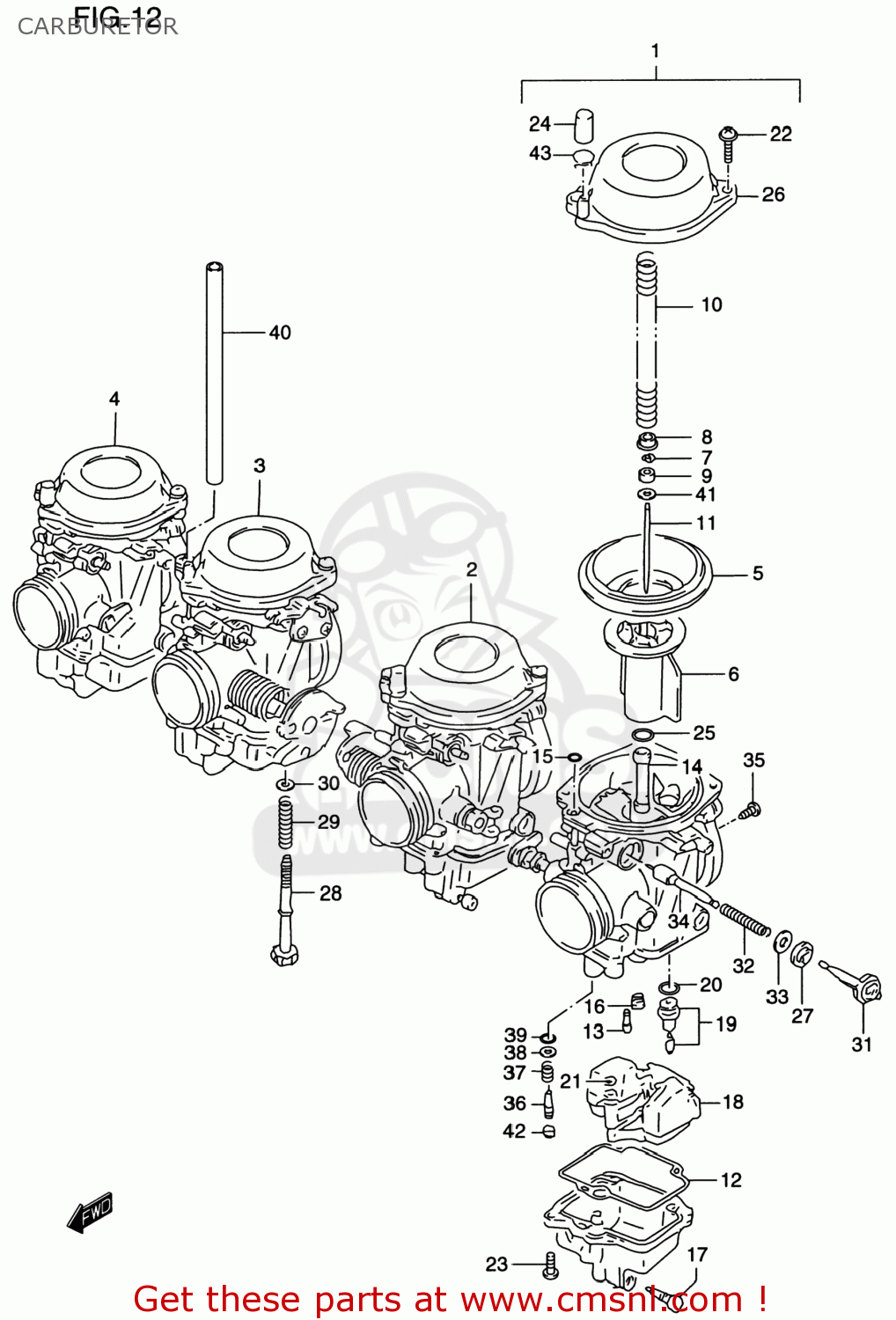

1-1
CARBURETOR ASSEMBLY,LEFT
1-3
CARBURETOR ASSEMBLY,LEFT
1-4
CARBURETOR ASSEMBLY,LEFT
2-1
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-3
CARBURETOR ASSEMBLY,MIDDLE,LEFT
2-4
CARBURETOR ASSEMBLY,MIDDLE,LEFT
3-1
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-2
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-3
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
3-4
CARBURETOR ASSEMBLY,MIDDLE,RIGHT
4-1
CARBURETOR ASSEMBLY,RIGHT
4-3
CARBURETOR ASSEMBLY,RIGHT
4-4
CARBURETOR ASSEMBLY,RIGHT
5
DIAPHRAGM
6
VALVE,PISTON
7
E RING
8
RING
9
RING
10
SPRING
12
GASKET,FLOAT CHAMBER (NAS)
13
JET,PILOT(37.5)
15
O RING
16
JET,MAIN(102.5)
17
SCREW,DRAIN
18
FLOAT ASSY
19-1
VALVE ASSEMBLY,NEEDLE
19-2
VALVE ASSY,NEEDLE(NI)
20
O-RING,NEEDLE VALVE
21
O RING
22
SCREW
23
SCREW
24-1
CAP
24-2
CAP
25
O RING
26
COVER,DIAPHRAGM
27
CAP,STARTER
28
SCREW,ADJUSTER
29
SPRING
30
WASHER
31
HOLDER,GUIDE
32
SPRING
33
WASHER
34
PLUNGER ASSY
35
JET,PILOT AIR(1.5)
36
SCREW,PILOT
37
SPRING
38
WASHER
39
O RING,PILOT AIR SCREW
40
HOSE(5X9X600)
41
WASHER
42
PLUG
43
CLIP
