OIL COOLER
GSF1200S BANDIT 1997 (V) USA (E03)

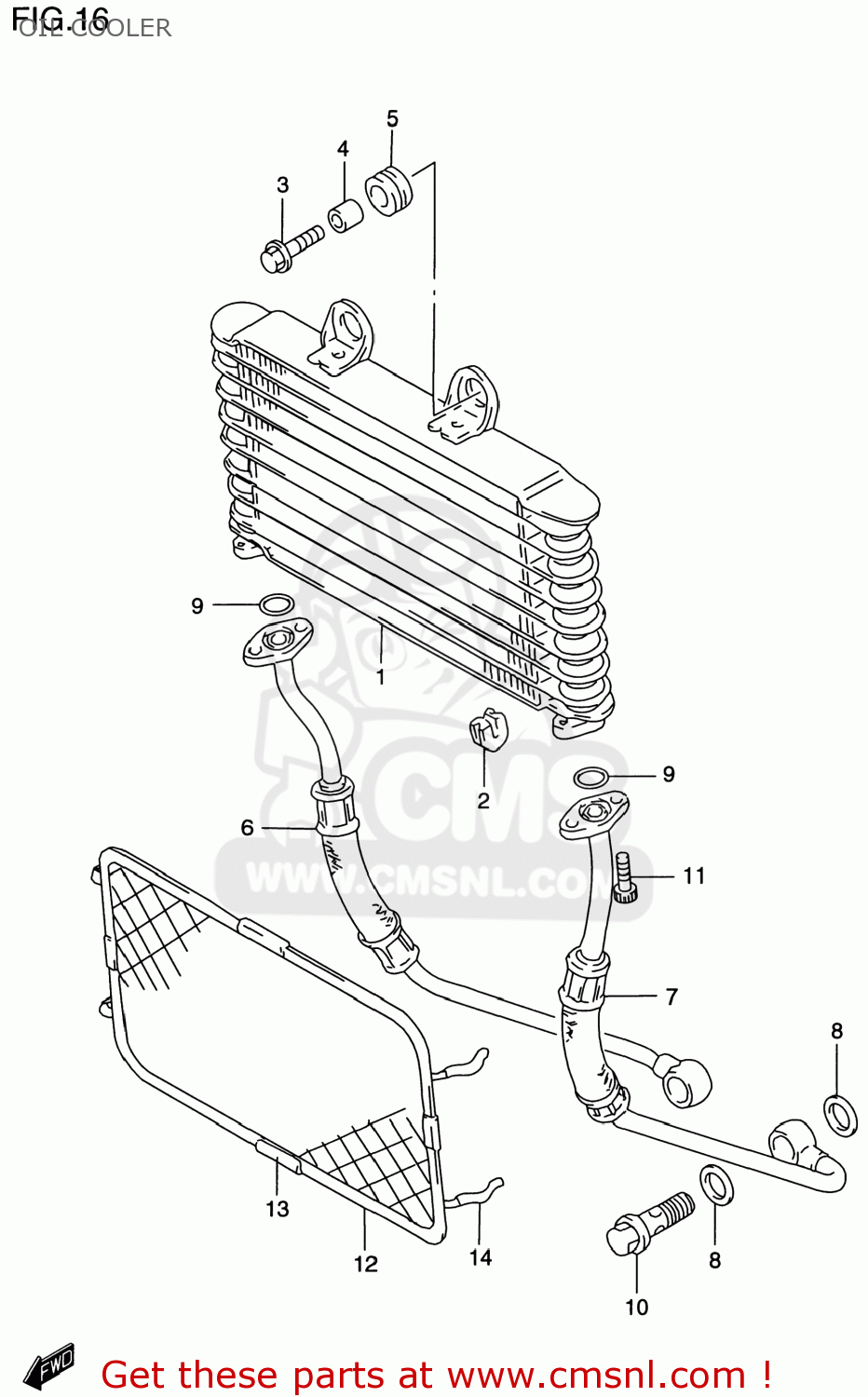

Oil cooler diagram GSF1200S BANDIT 1997 (V) USA (E03)
OIL COOLER GSF1200S BANDIT 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1660027E10
ref: 1
COOLER ASSY,OIL
€ 727.50
2
1662827A00
ref: 2
CUSHION,OIL COOLER NO.2
€ 3.00
3-1
0911606143
ref: 3-1
09116-06115
BOLT 6X20
€ 2.00
3-2
0911606115
ref: 3-2
BOLT(6X20)
€ 2.00
4
0918006310
ref: 4
SPACER(6.5X10X10)
€ 2.00
5
0932010015
ref: 5
CUSHION
€ 2.50
6
1646027E10
ref: 6
HOSE,OIL COOLER,R
€ 290.00
7
1647027E10
ref: 7
16470-27E11
HOSE COMP,OIL COOLER,LEFT
€ 380.50
8
0916816002
ref: 8
GASKET(16X22X2) (NAS)
€ 2.00
9
0928012008
ref: 9
O RING(D:2.4,ID:12.3)
€ 3.00
10
0936016002
ref: 10
BOLT UNION
€ 12.00
11
0713006303
ref: 11
07130-0630B
BOLT
€ 3.00
12
1665027E10
ref: 12
GUARD,OIL COOLER
€ 54.50
13
1665427E00
ref: 13
PROTECTOR,CTR
€ 3.00
14
0935230503600
ref: 14
HOSE(3X5X600)
€ 8.00
