SEAT
GSF1200S BANDIT 1997 (V) USA (E03)

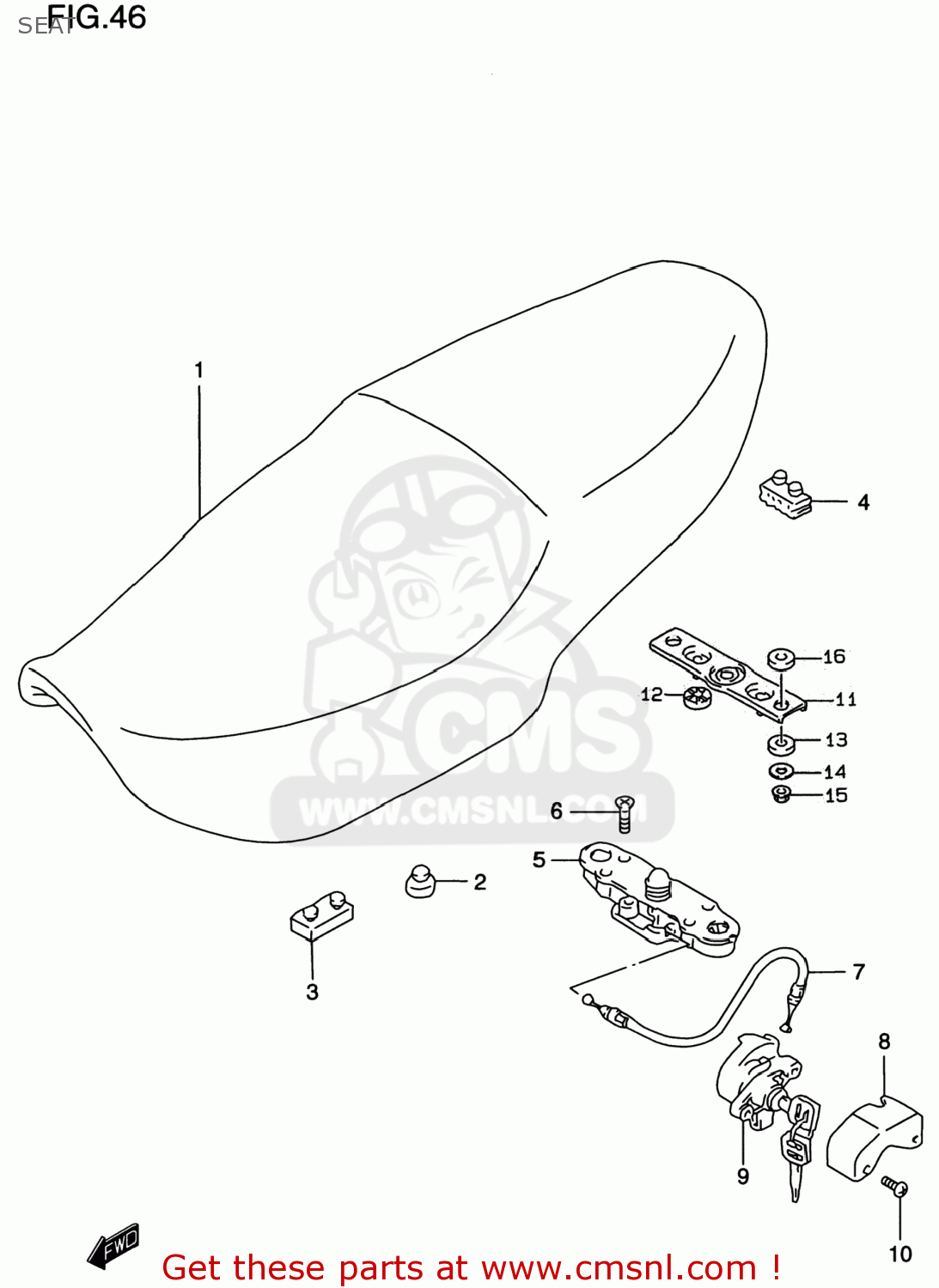

Seat diagram GSF1200S BANDIT 1997 (V) USA (E03)
SEAT GSF1200S BANDIT 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510026E31P21
ref: 1-1
45100-26E32-P21
SEAT ASSEMBLY (BLACK)
€ 175.50
1-2
4510026E70P21
ref: 1-2
45100-26E71-P21
SEAT ASSEMBLY
€ 170.50
2
0932110012
ref: 2
CUSHION
€ 3.00
3
0932108006
ref: 3
CUSHION
€ 3.00
4
4514931300
ref: 4
CUSHION,SEAT(40X20X15)
€ 2.00
5
4522013601
ref: 5
LOCK ASSY,SEAT STRIKER
€ 47.00
6
0211206303
ref: 6
02112-0630A
SCREW 6X30
€ 2.50
7
4528008A00
ref: 7
CABLE,SEAT LOCK
€ 13.00
8
4528926E00
ref: 8
GUARD,SEAT LOCK
€ 13.00
9
9570010833
ref: 9
95700-10835
LOCK SET,SEAT & HELMET
€ 99.50
10-1
0913906092
ref: 10-1
SCREW(6X14)
€ 3.50
10-2
4579126E00
ref: 10-2
09139-05072
SCREW,SEAT LOCK
€ 2.50
11
4521526E00
ref: 11
STRIKER,SEAT LOCK
€ 38.50
12
4521313601
ref: 12
CUSHION,SEAT LOCK(10X22X6)
€ 1.50
13
0932014017
ref: 13
CUSHION
€ 3.00
14
0821206201
ref: 14
WASHER
€ 1.50
15
0831620063
ref: 15
08316-2006A
NUT
€ 2.00
16
0932010038
ref: 16
CUSHION
€ 4.00
