FRAME (MODEL X)

GSF1200S BANDIT 1997 (V) USA (E03)

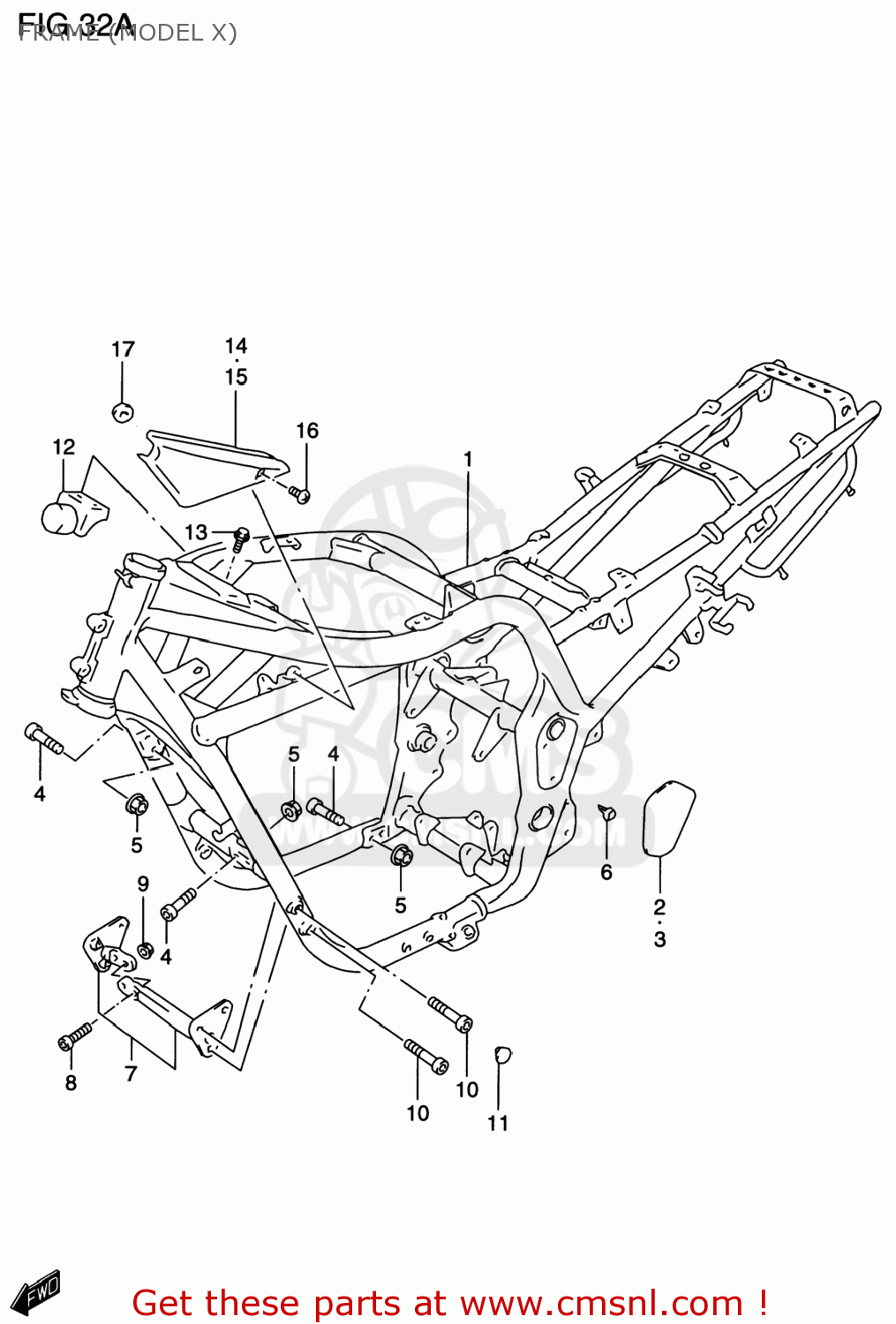

Frame (model x) diagram GSF1200S BANDIT 1997 (V) USA (E03)

FRAME (MODEL X) GSF1200S BANDIT 1997 (V) USA (E03)

FRAME (MODEL X) GSF1200S BANDIT 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110027E6133J
ref: 1-1

FRAME(BLACK)

€ 1,317.00

1-2

4110027E61Y7G
ref: 1-2

FRAME(GREEN)

€ 1,905.00

1-3

4110027E7133J
ref: 1-3

FRAME(BLACK)

€ 2,747.00

1-4

4110027E71Y7G
ref: 1-4

FRAME (GREEN)

€ 2,747.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5
08319-3110A

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7-1

4190027E0033J
ref: 7-1

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

7-2

4190027E00Y7G
ref: 7-2

PLATE,ENGINE MOUNTING NO.1 (G

€ 111.00

8

0712010303
ref: 8
07120-1030B

BOLT

€ 4.00

9

0831931103
ref: 9
08319-3110A

NUT

€ 3.00

10

0713008503
ref: 10
07130-0850A

BOLT

€ 3.50

11

0925008016
ref: 11

CAP(OD:12)

€ 2.50

12

4255027E50
ref: 12

DAMPER COMP,FRAME

€ 52.00

13

0155006123
ref: 13
01550-0612A

BOLT

€ 2.50

14

4751126E00291
ref: 14

COVER,FRAME HEAD,R

€ 15.50

15

4752126E00291
ref: 15

COVER,FRAME HEAD,L

€ 22.00

16

0913905021
ref: 16

SCREW(5X12)

€ 2.00

17

0932008013
ref: 17

CUSHION

€ 4.00
