REAR CALIPER (GSF1200SAV)

GSF1200S BANDIT 1997 (V) USA (E03)

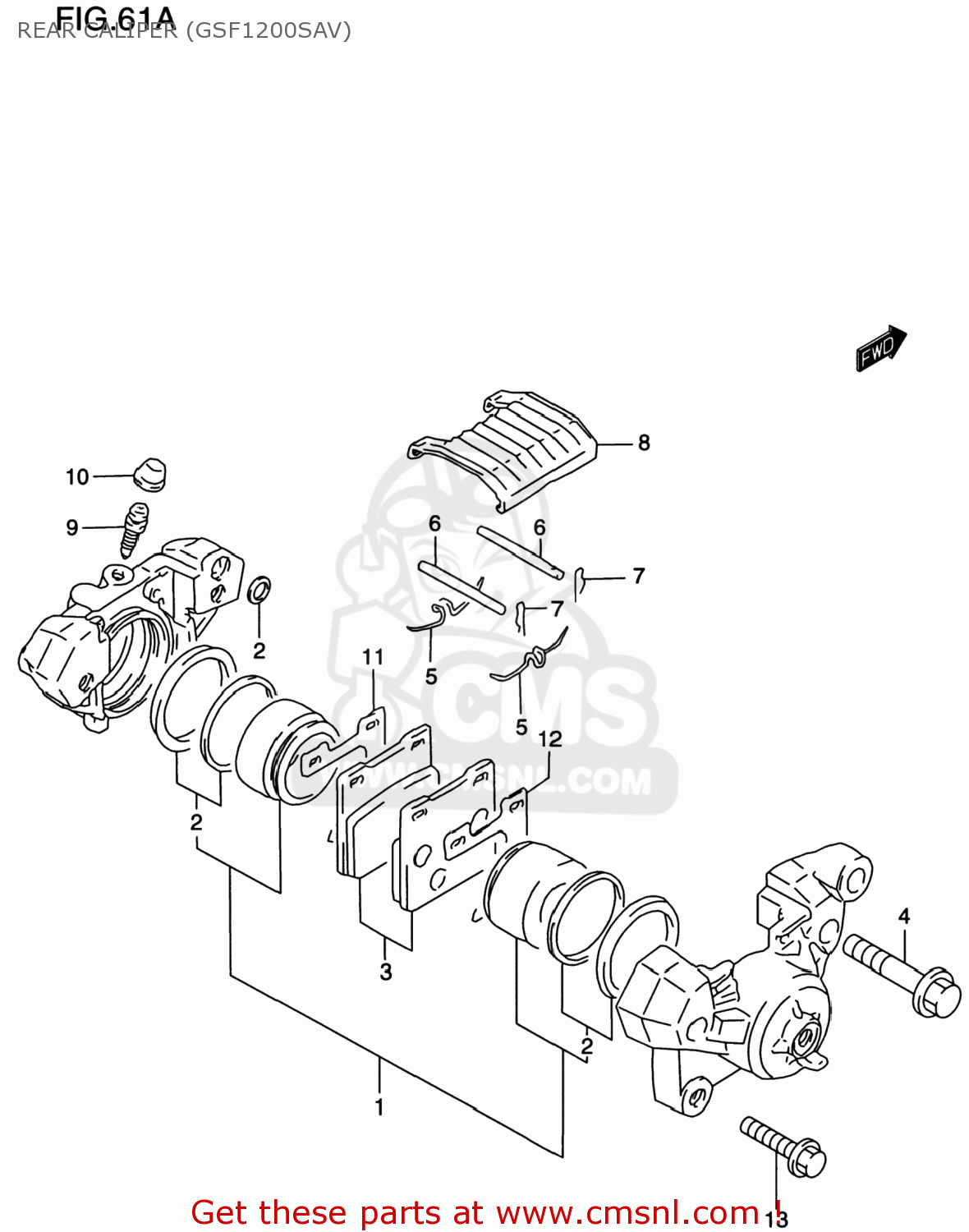

Rear caliper (gsf1200sav) diagram GSF1200S BANDIT 1997 (V) USA (E03)

REAR CALIPER (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
REAR CALIPER (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
REAR CALIPER (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity

6910001D03
ref:
69100-01D04-999
CALIPER ASSEMBLY,REAR
€ 448.00
1
6910005850
ref: 1
69100-05851
PISTON SET
6910005850
€ 122.50
2
6910032820
ref: 2
69101-05840
SEAL SET,PISTON
6910032820
€ 26.00
3
6910020810
ref: 3
PAD SET (NAS)
6910020810
€ 41.50
4
5914516700
ref: 4
BOLT,HOUSING
5914516700
€ 8.00
5
5914316700
ref: 5
SPRING
5914316700
€ 7.50
6
6914145000
ref: 6
PIN,PAD
6914145000
€ 6.50
7
6914245000
ref: 7
CLIP,PAD PIN
6914245000
€ 4.50
8
5915116701
ref: 8
COVER
5915116701
€ 13.50
9
5912118410
ref: 9
BLEEDER
5912118410
€ 8.00
10
5515666310
ref: 10
CAP,BLEEDER PLUG
5515666310
€ 6.00
11
5937120C00
ref: 11
SHIM,INNER
5937120C00
€ 7.50
12
5938120C00
ref: 12
SHIM,OUTER
5938120C00
€ 7.50
13
0155008303
ref: 13
01550-0830A
BOLT
0155008303
€ 3.00
