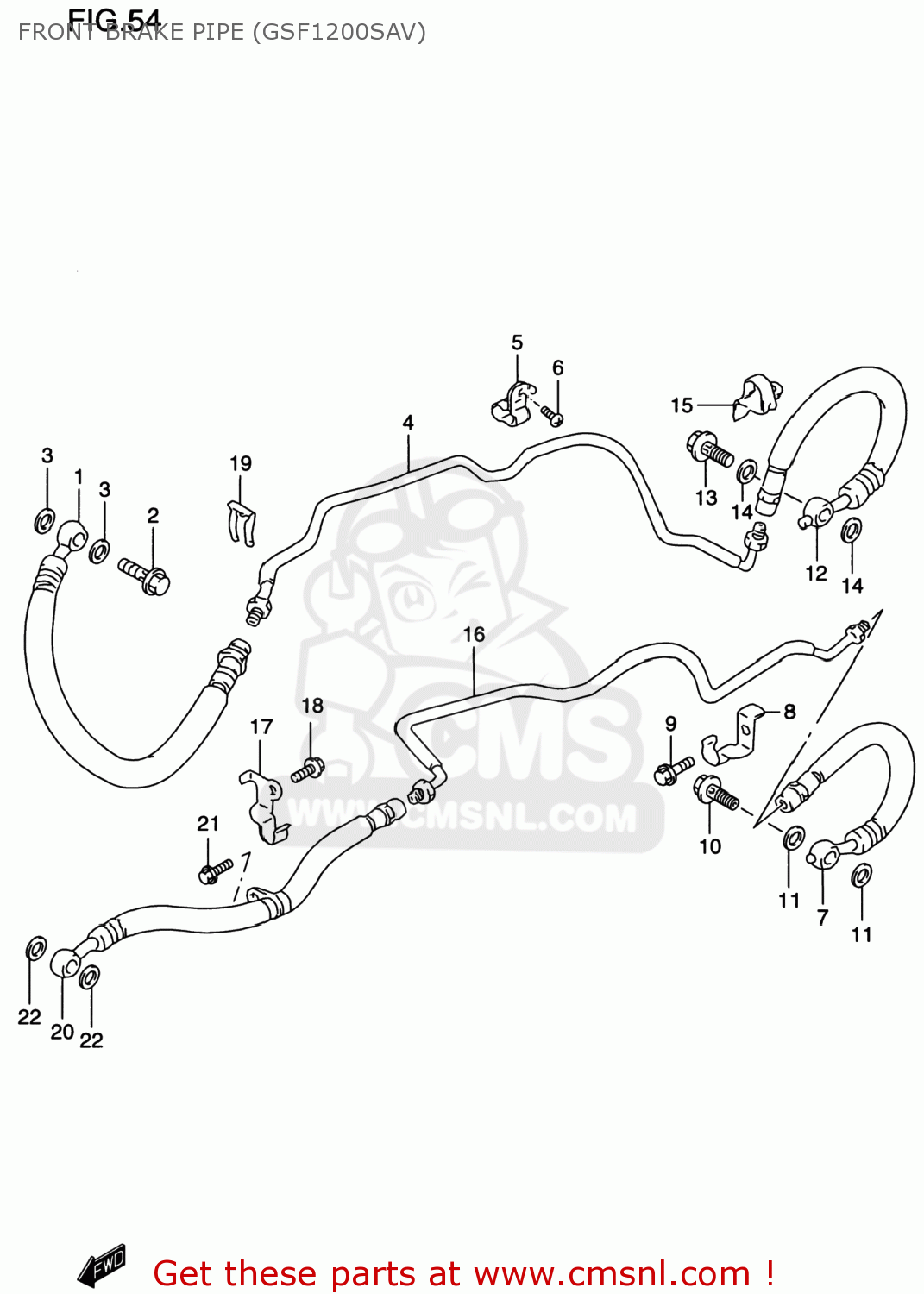

FRONT BRAKE PIPE (GSF1200SAV)

GSF1200S BANDIT 1997 (V) USA (E03)

Front brake pipe (gsf1200sav) diagram GSF1200S BANDIT 1997 (V) USA (E03)

FRONT BRAKE PIPE (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)

FRONT BRAKE PIPE (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5948027E60
ref: 1

HOSE COMP,FRONT BRAKE

€ 51.50

2

0936010042
ref: 2
09360-10062

BOLT UNION

€ 5.00

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5925027E50
ref: 4

PIPE,FR BRAKE NO.1

€ 22.00

5

5925327E50
ref: 5

CLAMP,FR BRAKE PIPE

€ 9.00

6

0214206163
ref: 6
02142-0616A

SCREW

€ 2.50

7

5956027E70
ref: 7

HOSE,FR BRAKE HU OUT

€ 39.50

8

5955227E50
ref: 8

CLAMP,FR BRAKE HOSE HU OUT

€ 9.00

9

0155006163
ref: 9
01550-0616A

BOLT

€ 2.50

10

0936010042
ref: 10
09360-10062

BOLT UNION

€ 5.00

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5956027E60
ref: 12

HOSE,FR BRAKE HU IN

€ 39.50

13

0936010042
ref: 13
09360-10062

BOLT UNION

€ 5.00

14

0916110009
ref: 14

WASHER(10X15X1.5)

€ 2.00

15

5955127E50
ref: 15

CLAMP,FR BRAKE HOSE HU IN

€ 9.00

16

5945027E50
ref: 16

PIPE,FR BRAKE NO.2

€ 21.00

17

5926527E50
ref: 17

CLAMP,FR BRAKE HOSE JOINT

€ 9.50

18

0155006163
ref: 18
01550-0616A

BOLT

€ 2.50

19

0938313001
ref: 19
09383-13003

E RING

€ 2.50

20

5956027E50
ref: 20

HOSE,FR BRAKE JOINT

€ 65.00

21

0155006163
ref: 21
01550-0616A

BOLT

€ 2.50

22

0916110009
ref: 22

WASHER(10X15X1.5)

€ 2.00
