Buy Suzuki GSF Parts Online


FRONT WHEEL (GSF1200SV/SW/SX/SY)

GSF1200S BANDIT 1997 (V) USA (E03)

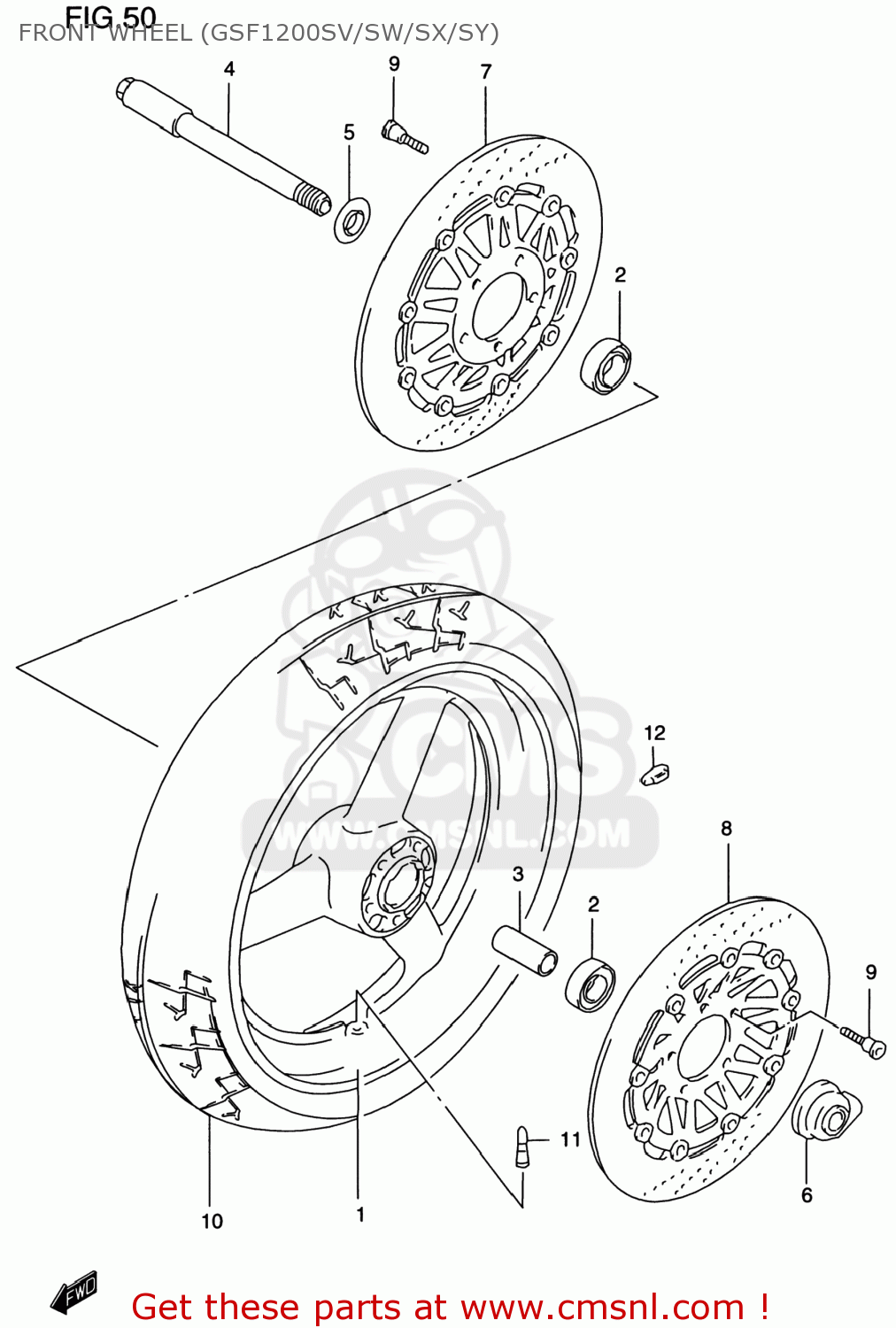

Front wheel (gsf1200sv/sw/sx/sy) diagram GSF1200S BANDIT 1997 (V) USA (E03)

FRONT WHEEL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1997 (V) USA (E03)
FRONT WHEEL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1997 (V) USA (E03)
FRONT WHEEL (GSF1200SV/SW/SX/SY) GSF1200S BANDIT 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5411117E1135W
ref: 1
54111-17E12-35W
WHEEL,FRONT (MT3.50X17)
€ 700.50
2
0812362047
ref: 2
BEARING
0812362047
€ 17.00
3
0918020103
ref: 3
SPACER(20.8X27.2X74)
0918020103
€ 31.50
4
5471117C00
ref: 4
AXLE,FR
5471117C00
€ 93.00
5
5474017C00
ref: 5
SPACER,FR HUB BEARING,R
5474017C00
€ 17.50
6
5460017C01
ref: 6
BOX ASSY,SPEEDOMETER GEAR
5460017C01
€ 139.00
7
5921031E10
ref: 7
DISC,FR BRAKE,R
5921031E10
€ 241.50
8
5922031E10
ref: 8
DISC,FR BRAKE,L
5922031E10
€ 241.50
9
0910608125
ref: 9
09106-08148
BOLT 8X33
0910608125
€ 6.00
10
5511027E30
ref: 10
TIRE,FRONT 120/70 ZR17
€ 0.00
10
5511027E30
ref: 10
TIRE,FRONT 120/70 ZR17
€ 0.00
11
4313024A00
ref: 11
VALVE ASSY,WHEEL RIM(TR412)
4313024A00
€ 7.00
12-1
5541100A00
ref: 12-1
BALANCER,WHEEL (10G)
€ 6.50
12-2
5541200A01
ref: 12-2
55412-17G00
BALANCER,WHEEL (20G)
€ 7.00
