FRAME COVER (GSF1200SV)

GSF1200S BANDIT 1997 (V) USA (E03)

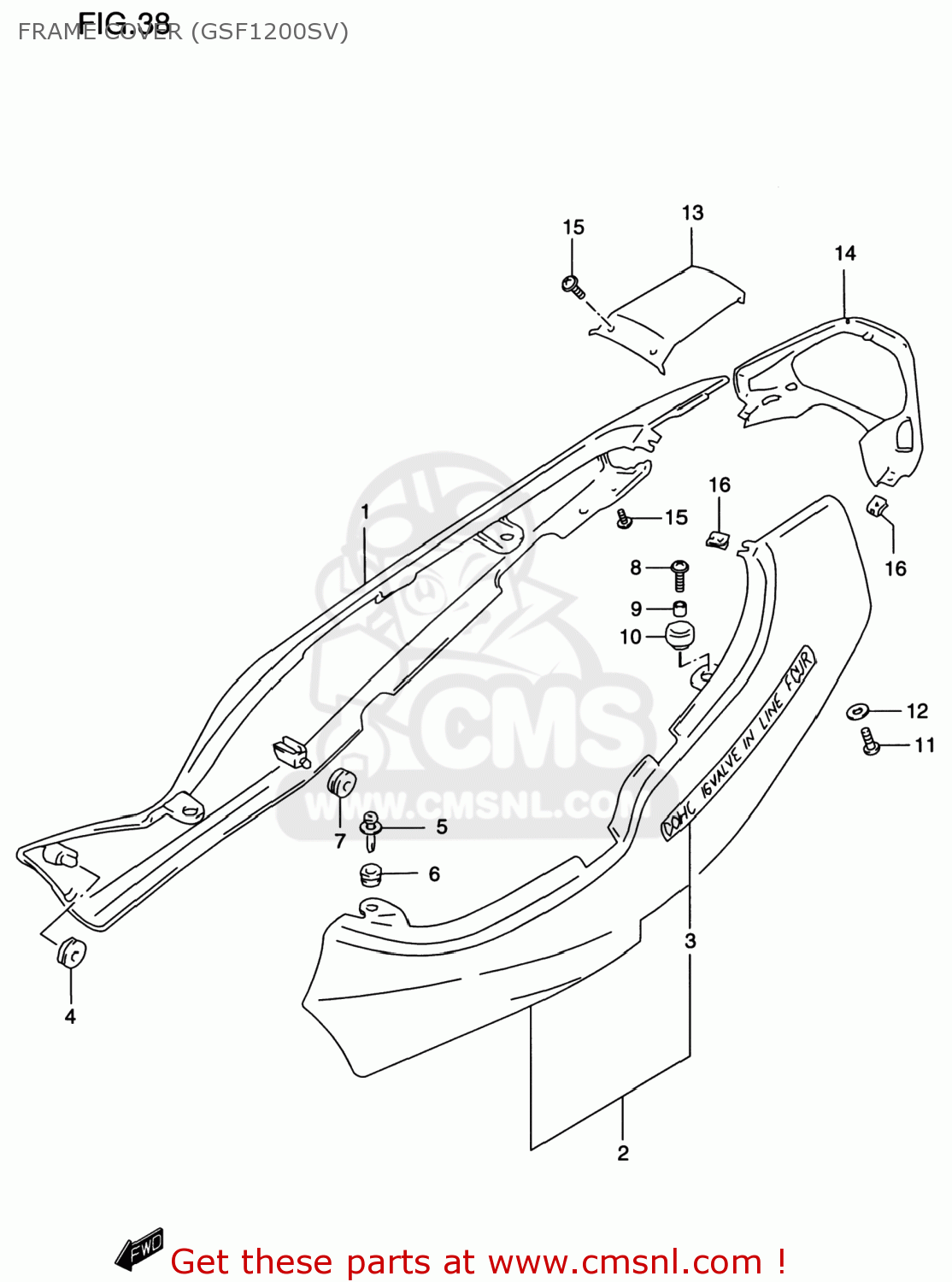

Frame cover (gsf1200sv) diagram GSF1200S BANDIT 1997 (V) USA (E03)

FRAME COVER (GSF1200SV) GSF1200S BANDIT 1997 (V) USA (E03)

FRAME COVER (GSF1200SV) GSF1200S BANDIT 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711026E5022U
ref: 1-1

COVER,FRAME,R(MAROON)

€ 174.50

1-2

4711026E50Y0N
ref: 1-2

COVER,FRAME,R(BLUE)

€ 175.00

2-1

4721026E5022U
ref: 2-1

COVER,FRAME,L(MAROON)

€ 174.50

2-2

4721026E50Y0N
ref: 2-2

COVER,FRAME,L(BLUE)

€ 175.50

3

6813126E3024G
ref: 3

EMBLEM,FRAME COVER

€ 9.50

4

4716121E00
ref: 4

CUSHION,FRAME COVER FR

€ 7.50

5

0940910306
ref: 5

CLIP

€ 3.00

6

0932010043
ref: 6
09320-10501

CUSHION

€ 5.50

7

0932008018
ref: 7

CUSHION

€ 4.00

8

0913606105
ref: 8

SCREW(6X20)

€ 2.00

9

0918006286
ref: 9

SPACER(6.5X10X9.4)

€ 2.50

10

0932010045
ref: 10

CUSHION

€ 3.50

11

0214206163
ref: 11
02142-0616A

SCREW

€ 2.50

12

0916106021
ref: 12

WASHER(6.3X16X1.5)

€ 2.50

13-1

4731126E0022U
ref: 13-1

COVER,FRAME CTR

€ 35.00

13-2

4731126E00Y0N
ref: 13-2

COVER,FRAME,CENTER

€ 35.50

14

4733126E00291
ref: 14

COVER,FRAME RR

€ 52.00

15

0324115123
ref: 15
03241-1512B

SCREW

€ 2.50

16

0914805020
ref: 16

NUT

€ 2.00
