REAR CUSHION LEVER (GSF1200SAV)

GSF1200S BANDIT 1997 (V) USA (E03)

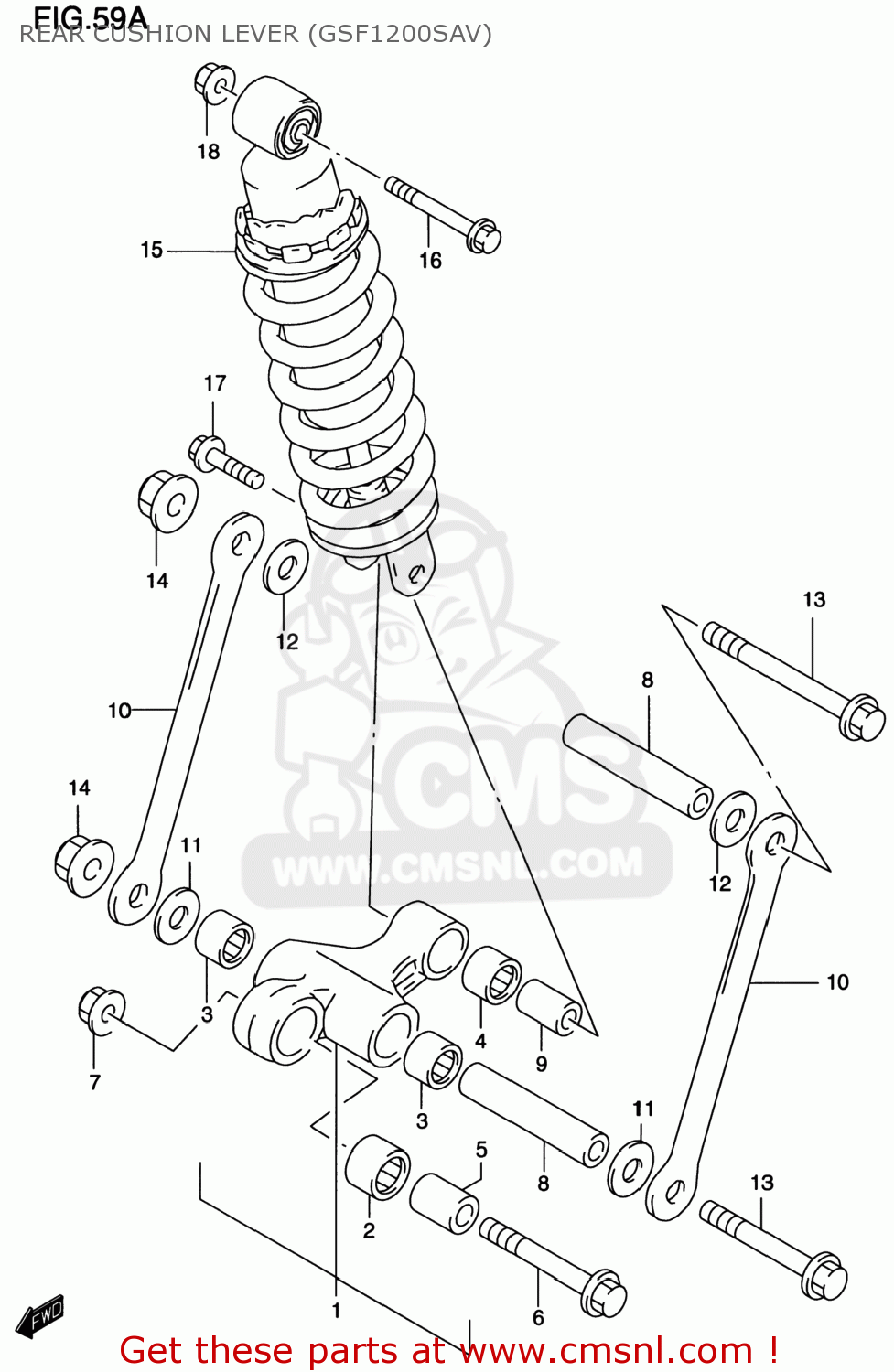

Rear cushion lever (gsf1200sav) diagram GSF1200S BANDIT 1997 (V) USA (E03)

REAR CUSHION LEVER (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)

REAR CUSHION LEVER (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6260033871
ref: 1

LEVER SET,RR CUSHION

€ 318.00

2

0926320064
ref: 2

BEARING(20X27X26)

€ 20.00

3

0926317037
ref: 3

BEARING(17X24X25)

€ 19.00

4

0926317034
ref: 4

BEARING(17X24X26)

€ 21.50

5

6268401D00
ref: 5

SPACER,RR CUSHION LEVER FR

€ 17.00

6

6266842A02
ref: 6

BOLT,CUSHION LEVER FR

€ 7.00

7

0831931128
ref: 7
08319-3112A

NUT 12MM

€ 4.00

8

0918012122
ref: 8

SPACER(12X17X85)

€ 15.00

9

6268440A10
ref: 9

SPACER,RR CUSHION LEVER

€ 11.50

10

6264127E10
ref: 10

ROD,RR CUSHION LEVER

€ 19.00

11

0916012037
ref: 11

WASHER(12X34X1)

€ 4.00

11

0916012037
ref: 11

WASHER(12X34X1)

€ 4.00

12

6262842AA0
ref: 12

WASHER,RR CUSH LVR CTR,L

€ 6.00

12

6262842AA0
ref: 12

WASHER,RR CUSH LVR CTR,L

€ 6.00

13

0910312037
ref: 13

BOLT(12X115)

€ 11.00

14

0831931128
ref: 14
08319-3112A

NUT 12MM

€ 4.00

15

6210027E70
ref: 15

ABSORBER ASSY,RR SHOCK

€ 0.00

16

0910310064
ref: 16

BOLT(10X50)

€ 4.50

17

0910310049
ref: 17

BOLT(10X44)

€ 5.50

18

0831931107
ref: 18

NUT

€ 3.00
