Buy Suzuki GSF Parts Online


HORN / HANDLE SWITCH

GSF1200S BANDIT 1997 (V) USA (E03)

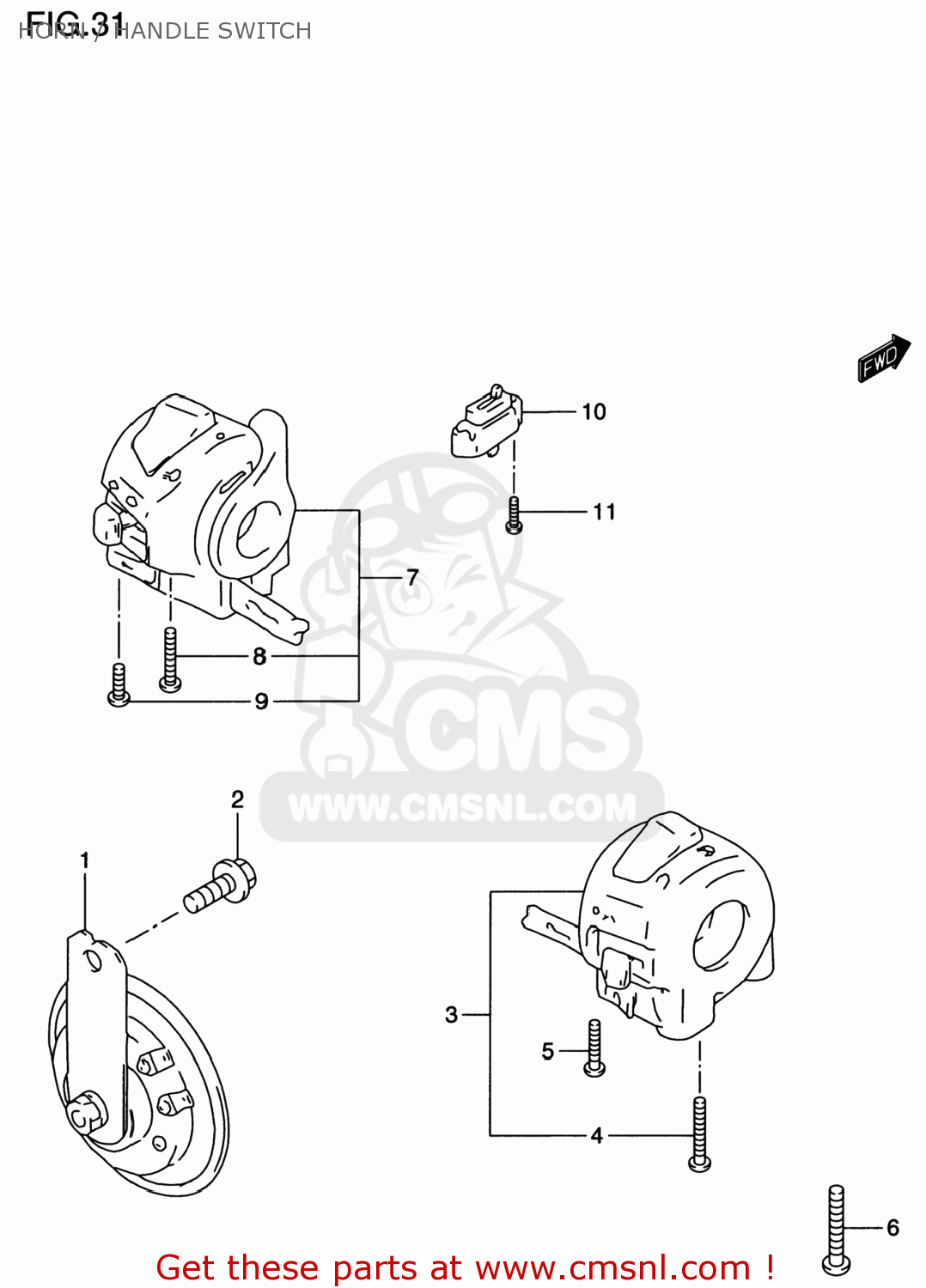

Horn / handle switch diagram GSF1200S BANDIT 1997 (V) USA (E03)

HORN / HANDLE SWITCH GSF1200S BANDIT 1997 (V) USA (E03)
HORN / HANDLE SWITCH GSF1200S BANDIT 1997 (V) USA (E03)
HORN / HANDLE SWITCH GSF1200S BANDIT 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3850221E02
ref: 1
HORN ASSY
3850221E02
€ 63.50
2
0155008123
ref: 2
01550-0812A
BOLT
0155008123
€ 3.50
3
3720033E31
ref: 3
SWITCH ASSY,HANDLE,R
3720033E31
€ 135.00
4
0211205503
ref: 4
02112-0550B
SCREW
0211205503
€ 2.00
5
0211205303
ref: 5
02112-0530A
SCREW
0211205303
€ 1.50
6
0211205103
ref: 6
02112-0510A
SCREW
0211205103
€ 2.00
7-1
3740026E30
ref: 7-1
37400-26E31
SWITCH ASSEMBLY,HANDLE,LEFT
€ 133.00
7-2
3740026E31
ref: 7-2
SWITCH ASSY,HANDLE,L
€ 133.00
8
0211205503
ref: 8
02112-0550B
SCREW
0211205503
€ 2.00
9
0211205253
ref: 9
02112-0525A
SCREW
0211205253
€ 1.50
10
3756038A00
ref: 10
SWITCH ASSY,CLUTCH
3756038A00
€ 20.00
11
3756426E00
ref: 11
09132-03017
SCREW
3756426E00
€ 3.00
up
