ELECTRICAL (GSF1200SAV)

GSF1200S BANDIT 1997 (V) USA (E03)

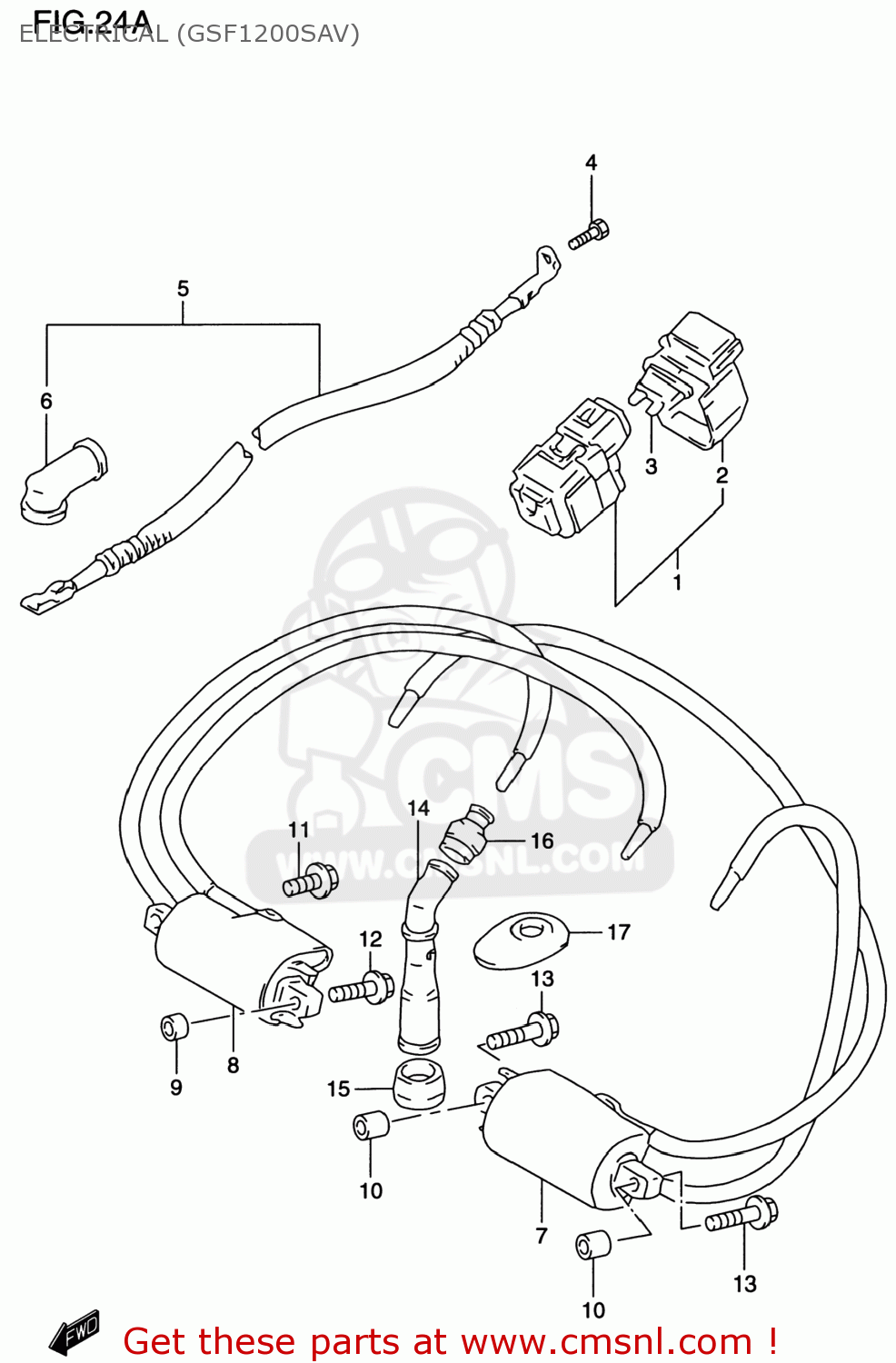

Electrical (gsf1200sav) diagram GSF1200S BANDIT 1997 (V) USA (E03)

ELECTRICAL (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
ELECTRICAL (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
ELECTRICAL (GSF1200SAV) GSF1200S BANDIT 1997 (V) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
3180026E00
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
3186126E00
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3381027E00
ref: 5
WIRE,STARTER MOTOR LEAD
3381027E00
€ 30.50
6
3186148B10
ref: 6
CAP,STARTER MOTOR LEAD
3186148B10
€ 4.50
7
3341027E00
ref: 7
COIL ASSY,IGNITION
3341027E00
€ 113.00
8
3342027E00
ref: 8
COIL ASSEMBLY,IGNITION
€ 144.00
9
0918006095
ref: 9
SPACER(6X12X10)
0918006095
€ 4.50
10
0918006198
ref: 10
SPACER(6.2X12X16)
0918006198
€ 3.50
11
0150006203
ref: 11
01500-0620A
BOLT
0150006203
€ 2.00
12
0150006303
ref: 12
01500-0630A
BOLT
0150006303
€ 2.50
13
0150006403
ref: 13
01500-0640B
BOLT
0150006403
€ 2.00
14
3351048B10
ref: 14
CAP,SPARK PLUG
3351048B10
€ 29.50
15
3354123E01
ref: 15
SEAL,SPARK PLUG CAP
3354123E01
€ 7.00
16
3354238B00
ref: 16
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
17
3354348B00
ref: 17
COVER,SPARK PLUG CAP
3354348B00
€ 12.50
