CAM CHAIN

GSX1100 1981 (X) GENERAL EXPORT (E01)

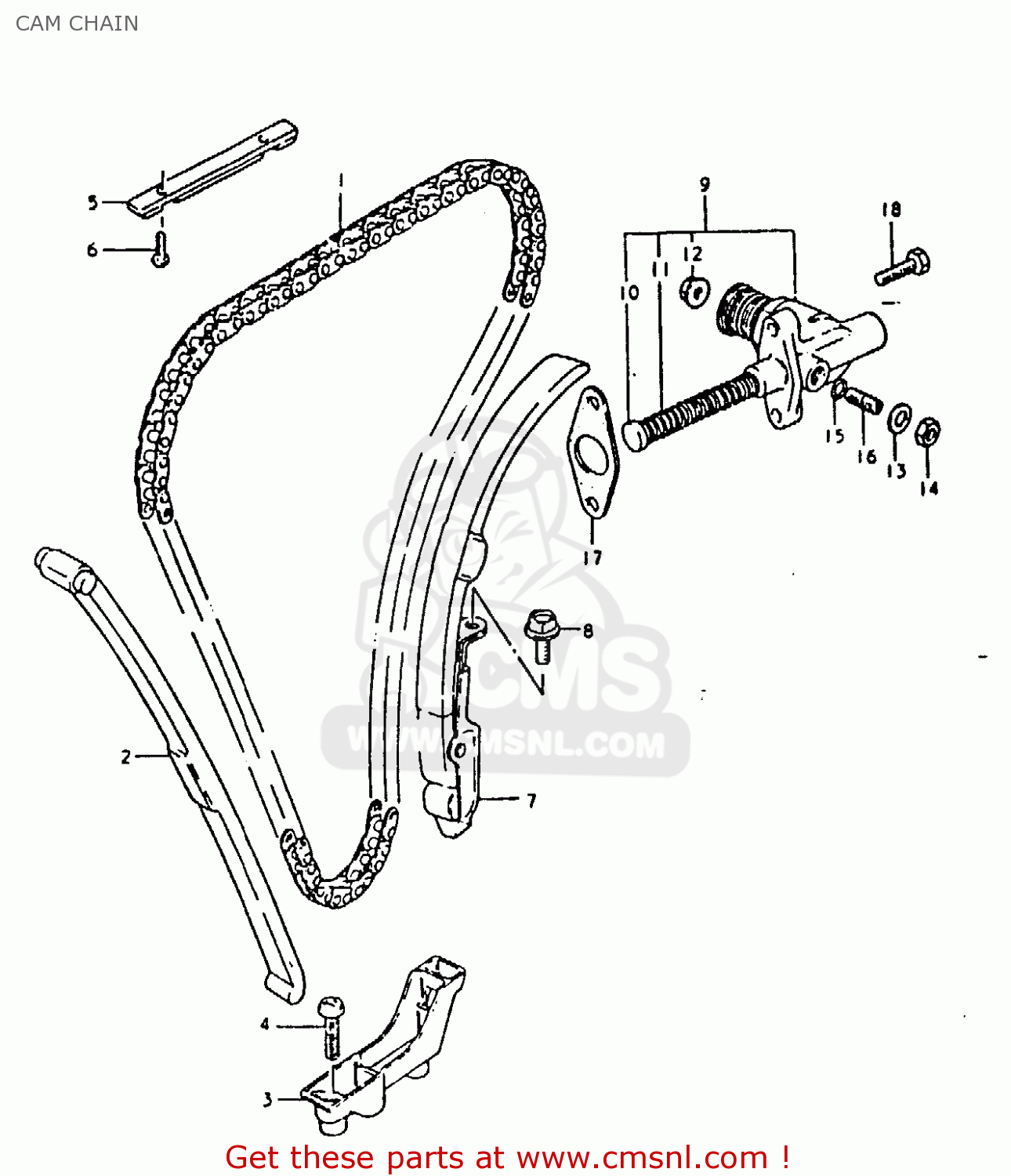

Cam chain diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

CAM CHAIN GSX1100 1981 (X) GENERAL EXPORT (E01)
CAM CHAIN GSX1100 1981 (X) GENERAL EXPORT (E01)
CAM CHAIN GSX1100 1981 (X) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
1276049010
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 112.00
2
1277145052
ref: 2
GUIDE,CAM CHAIN NO.1
1277145052
€ 33.50
3
1277649000
ref: 3
HOLDER,CAM CHAIN GUIDE
1277649000
€ 13.00
4
0211205128
ref: 4
SCREW
€ 2.50
5
1278247040
ref: 5
GUIDE,CAM CHAIN NO.3
1278247040
€ 89.50
6
0211205128
ref: 6
SCREW
€ 2.50
7
1281049250
ref: 7
TENSIONER,CAM CHAIN
1281049250
€ 77.00
8
0151708168
ref: 8
BOLT
€ 3.00
9
1283047001
ref: 9
ADJUSTER ASSEMBLY,TENSIONER
1283047001
€ 167.00
10
1283347001
ref: 10
ROD,PUSH
1283347001
€ 25.00
11
0944012017
ref: 11
SPRING
0944012017
€ 2.50
12
1283845001
ref: 12
SCREW
1283845001
€ 6.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
0831012088
ref: 14
NUT
0831012088
€ 2.00
15
0928006003
ref: 15
O-RING
0928006003
€ 2.50
16
0915906017
ref: 16
NUT
0915906017
€ 2.50
17
1283747000
ref: 17
GASKET,TENSIONER ADJUSTER (MCA)
1283747000
€ 7.50
18
0912806024
ref: 18
SCREW (6X25)
0912806024
€ 2.50
