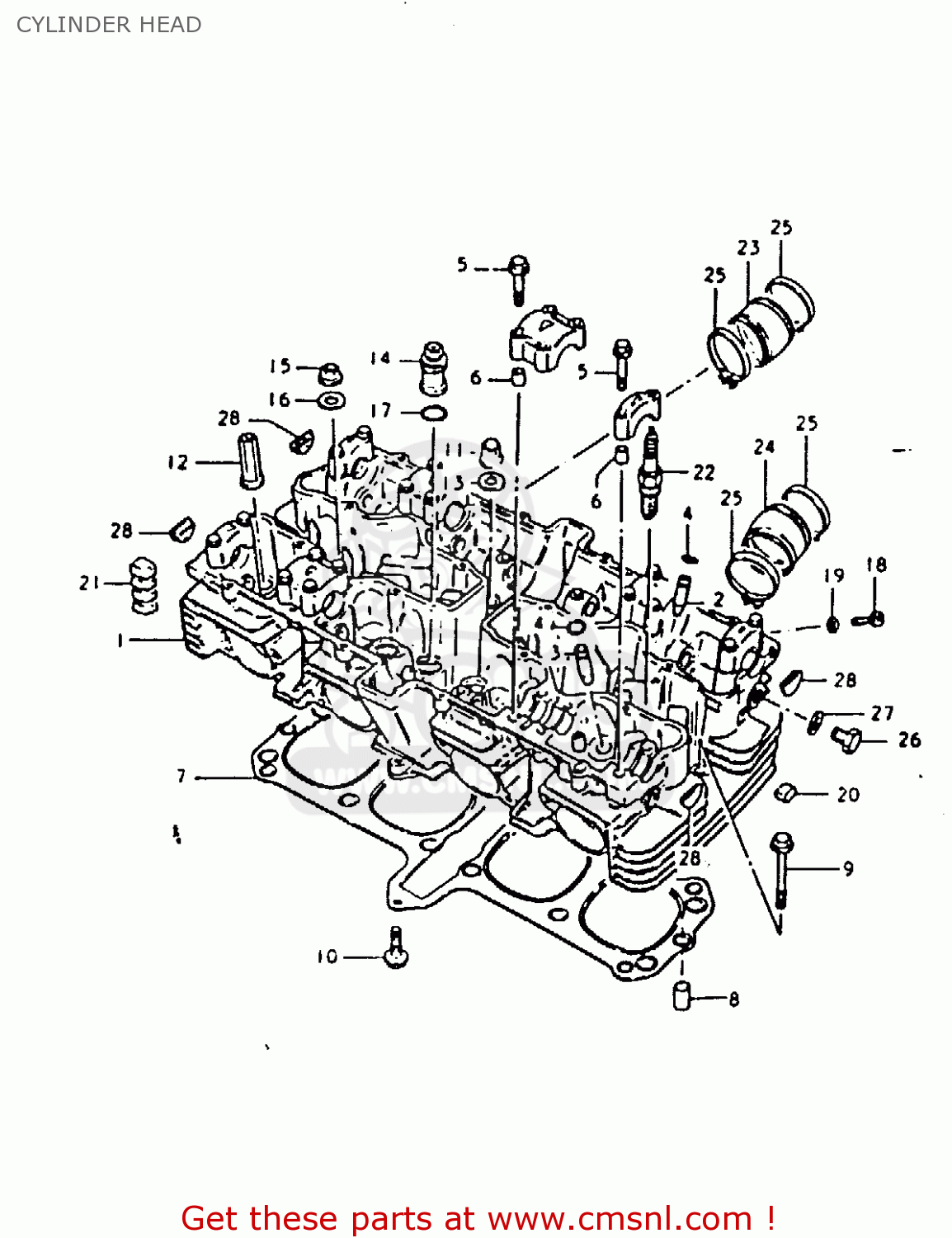

CYLINDER HEAD

ref

part #

description

quantity

1-1

1110049840
ref: 1-1
MODEL T, ~E.NO.11284

HEAD ASSEMBLY,CYLINDER

€ 733.00

1-2

1110049841
ref: 1-2
MODEL T, X, E.NO.112

HEAD ASSEMBLY,CYLINDER

€ 733.00

2

1111549290
ref: 2

GUIDE,INTAKE VALVE

€ 19.50

3

1111549290
ref: 3

GUIDE,INTAKE VALVE

€ 19.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114149201
ref: 7

GASKET,CYLINDER HEAD (NAS)

€ 120.50

8

0421111189
ref: 8

PIN

€ 2.00

9

0151706558
ref: 9

BOLT

€ 2.50

10

0151706308
ref: 10

BOLT

€ 2.00

11

0915910026
ref: 11

NUT

€ 6.00

12

0915910029
ref: 12

NUT

€ 59.50

13

0916810019
ref: 13

GASKET (NAS)

€ 3.50

14

1114549200
ref: 14

NUT,CYLINDER HEAD SEAL

€ 12.50

15

0831616108
ref: 15

NUT

€ 2.00

16

0916010039
ref: 16

WASHER(10.5X22X2.3)

€ 2.50

17

0928017002
ref: 17

O RING(D:2.4,ID:16.8)

€ 3.50

18

0910605006
ref: 18

BOLT

€ 2.00

19

0916805010
ref: 19

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

20-1

1115145000
ref: 20-1
MODEL T,~E.NO.112843

PAD,CYLINDER HEAD

€ 3.00

20-2

1115245000
ref: 20-2

PAD

€ 3.50

21

1125148000
ref: 21
MODEL T, X, E.NO.112

PAD,CYLINDER

€ 6.50

22-1

NOTUSED
ref: 22-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22-2

NOTUSED
ref: 22-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22-3

0948200149
ref: 22-3
E2, E4, E16, E17, E1

SPARK PLUG DR8ES-L

€ 3.50

22-4

0948200223
ref: 22-4
E2, E4, E16, E17, E1

PLUG,SPARK(X24ESR-U)

€ 3.50

23

1311149200
ref: 23

PIPE,INTAKE,R

€ 20.00

24

1312149200
ref: 24

PIPE,INTAKE,L

€ 20.00

25

0940252306
ref: 25

CLAMP

€ 6.00

26

0924714012
ref: 26

PLUG (14X12)

€ 3.50

27

0916814004
ref: 27

GASKET(14X19.2X2) (NAS)

€ 2.50

28

0924123002
ref: 28

PLUG

€ 8.50

all assemblies
