REAR BRAKE HOSE

GSX1100 1981 (X) GENERAL EXPORT (E01)

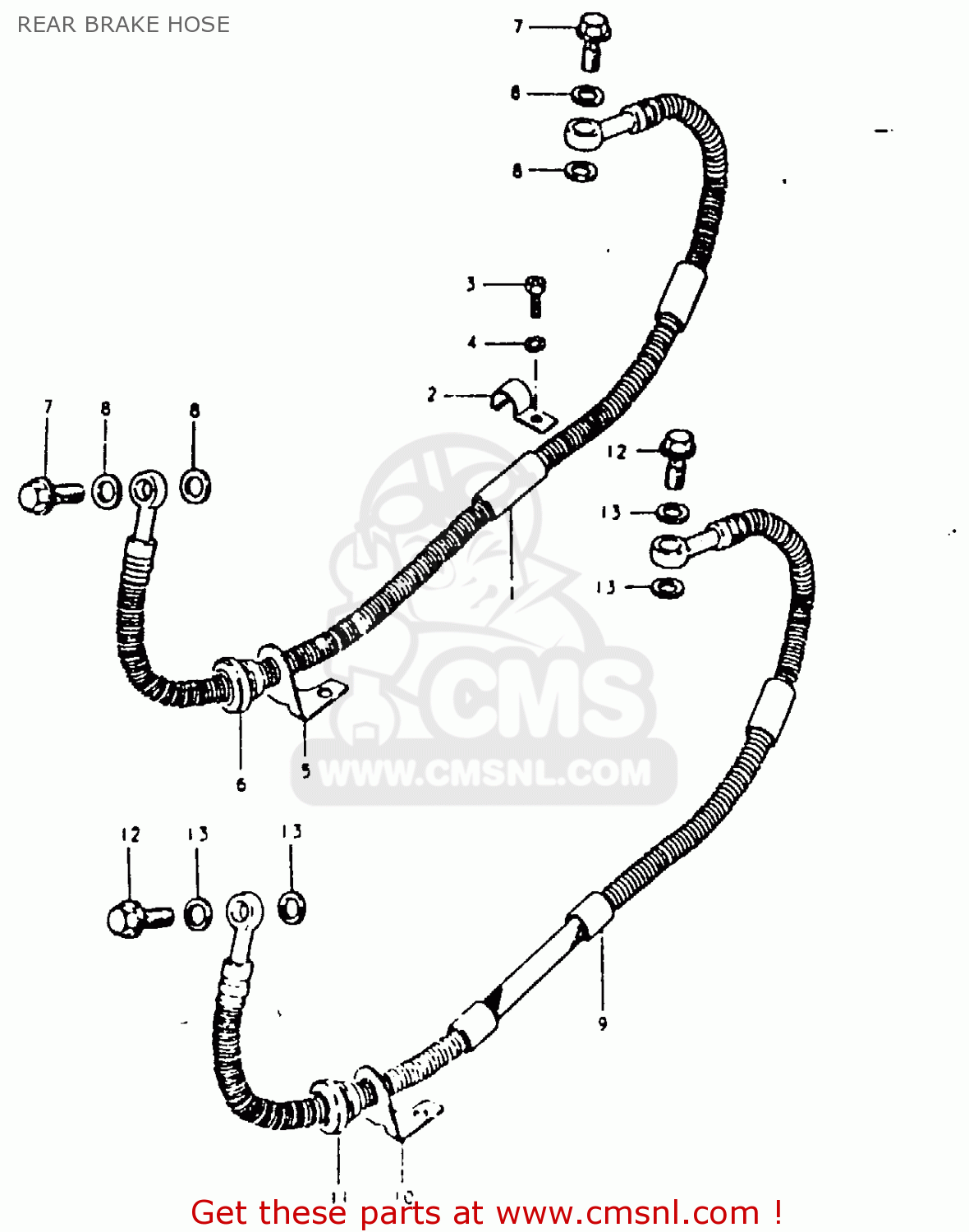

Rear brake hose diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

6948049002
ref: 1
FOR 61100-49820, 611

HOSE,REAR BRAKE

€ 62.50

6926849000
ref: 2

CLAMP,REAR BRAKE HOSE

€ 5.50

0912806013
ref: 3

SCREW(6X8)

€ 1.50

0832121068
ref: 4

LOCK WASHER

€ 2.50

6924347000
ref: 5

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 6

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0936010007
ref: 7

BOLT,UNION

€ 6.50

0916110005
ref: 8

WASHER

€ 2.00

6948049003
ref: 9
FOR 61100-49821 6110

HOSE,REAR BRAKE

€ 76.50

6924347000
ref: 10

GUIDE,BRAKE HOSE

€ 5.50

5924436200
ref: 11

GROMMET,BRAKE HOSE GUIDE

€ 4.00

0936010009
ref: 12

BOLT UNION

€ 6.50

0916110005
ref: 13

WASHER

€ 2.00
