SEAT

GSX1100 1981 (X) GENERAL EXPORT (E01)

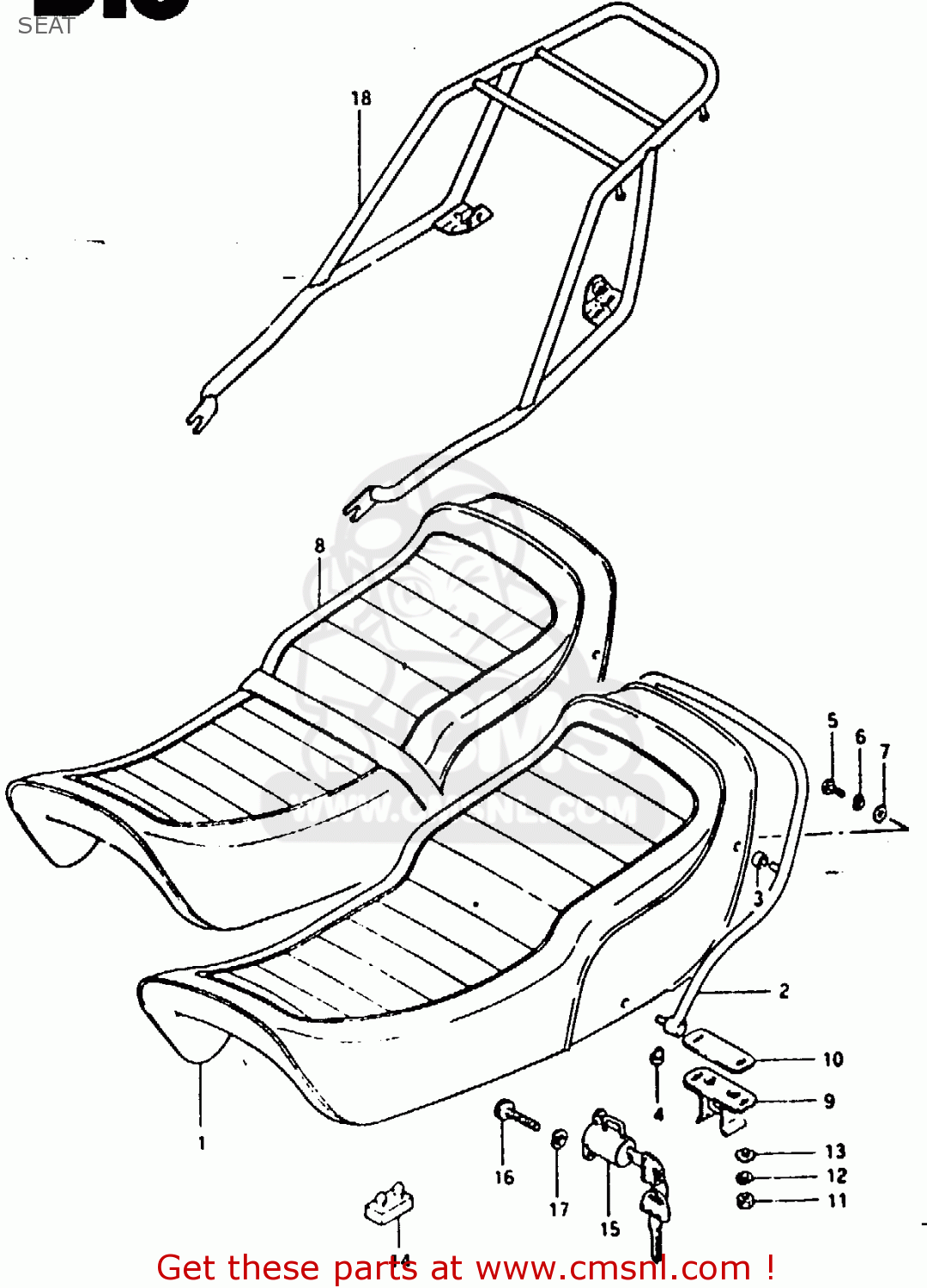

Seat diagram GSX1100 1981 (X) GENERAL EXPORT (E01)

SEAT GSX1100 1981 (X) GENERAL EXPORT (E01)
SEAT GSX1100 1981 (X) GENERAL EXPORT (E01)
SEAT GSX1100 1981 (X) GENERAL EXPORT (E01)
prices are in EUR
ref
part #
description
quantity
1
451004922041G
ref: 1
SEAT ASSY (BLACK)
€ 714.00
2
4621049200
ref: 2
HANDLE,PILLION RIDER
4621049200
€ 54.50
3
4621249000
ref: 3
CUSHION
4621249000
€ 15.00
4
4621349000
ref: 4
END,SHEET HANDLE
4621349000
€ 5.50
5
0110708208
ref: 5
BOLT
0110708208
€ 3.00
6
0832121088
ref: 6
LOCK WASHER
0832121088
€ 2.00
7
0832211088
ref: 7
WASHER
0832211088
€ 2.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
4521049201
ref: 9
STRIKER, SEAT LOCK
4521049201
€ 7.00
10
4521749200
ref: 10
SHIM,SEAT LOCK STRIKER
€ 1.50
11
0831011068
ref: 11
NUT
0831011068
€ 2.50
12
0832121068
ref: 12
LOCK WASHER
0832121068
€ 2.50
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14
0932108006
ref: 14
CUSHION
0932108006
€ 3.00
15
9570035821
ref: 15
LOCK ASSEMBLY,HELMET
9570035821
€ 57.50
16
0910606005
ref: 16
BOLT
€ 3.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
4631045400
ref: 18
OPT
CARRIER
€ 67.00
